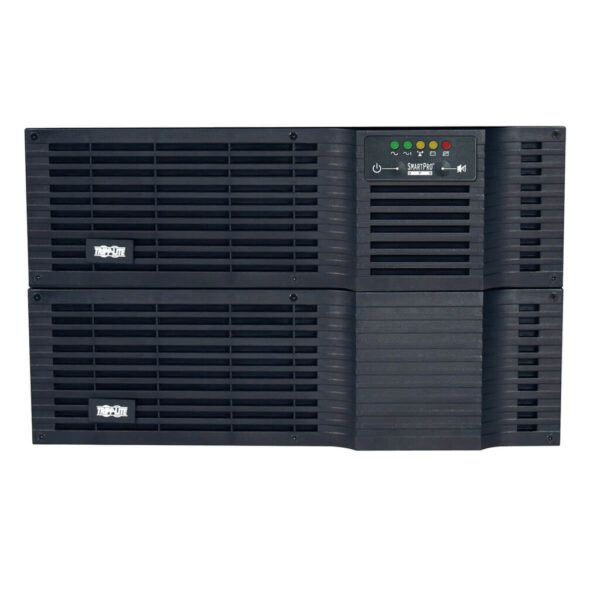

SmartPro 208/120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Option, USB, DB9, EPO, TAA

$7,162.71

Brand: Tripp Lite
Part Number (MPN): SM5000RT3UTAA
UPC / GTIN: 037332161475
Datasheet: PDF

SmartPro 208/120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Option, USB, DB9, EPO, TAA

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

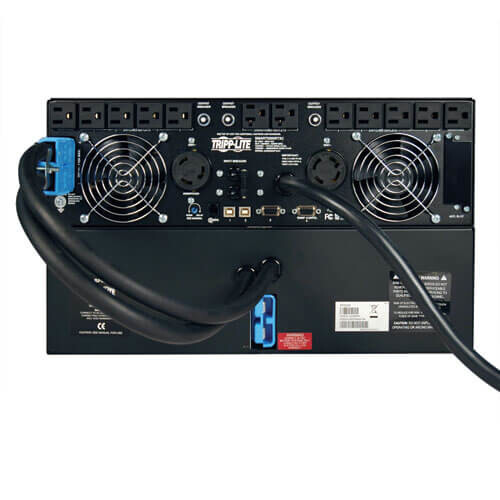

Tripp Lite’s line-interactive SM5000RT3UTAA UPS System is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This UPS protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. In rack configuration, the power module and battery pack occupy only 3 rack spaces (3U) each. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely with additional external 3U rackmount battery packs. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data.

Weight 321.62 lbs
Dimensions 24 × 35 × 24.5 in
Form Factor
Color

Black

Brand

Input operation voltage (min)

151 V

Input operation voltage (max)

282 V

Input frequency

60 Hz

Output operation voltage (min)

120 V

Output operation voltage (max)

208 V

Audible alarm(s)

Yes

LED indicators

Yes

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 50 °C

Certification

UL1778<br />TAA

Width

444 mm

Depth

572 mm

Height

133 mm

Power factor

0,8

Power protection features

Over voltage, Under voltage

Serial ports quantity

2

Typical backup time at full load

16 min

Typical backup time at half load

38 min

Battery recharge time

4 h

Ethernet LAN (RJ-45) ports

2

Hot-swap battery

Yes

AC outlets quantity

14 AC outlet(s)

AC outlet types

NEMA 5–15R, NEMA 5–20R, Type L

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Surge energy rating

1020 J

Package width

889 mm

Package depth

609,6 mm

Package height

622,3 mm

Package weight

145,9 kg

Quantity per master (outer) case

1 pc(s)

Country of origin

Taiwan

Master (outer) case width

889 mm

Master (outer) case length

609,6 mm

Master (outer) case height

622,3 mm

Master (outer) case weight

145,9 kg

Interface

USB; DB9
