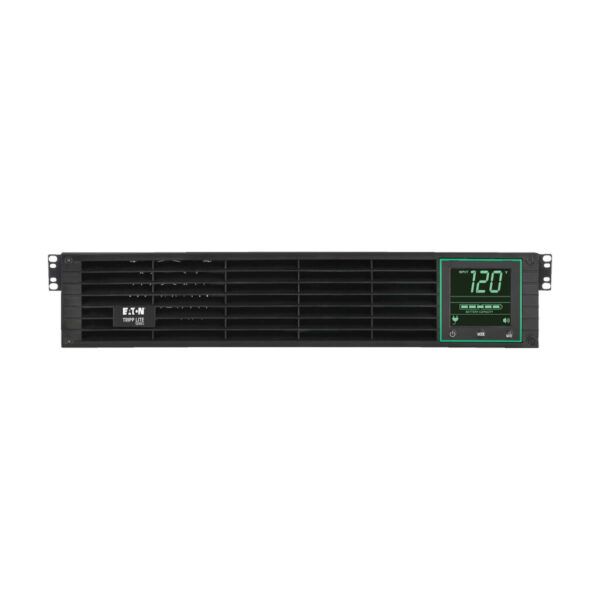

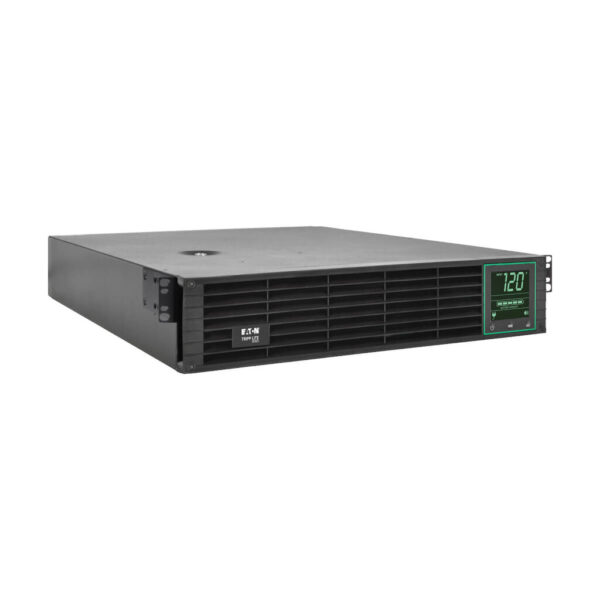

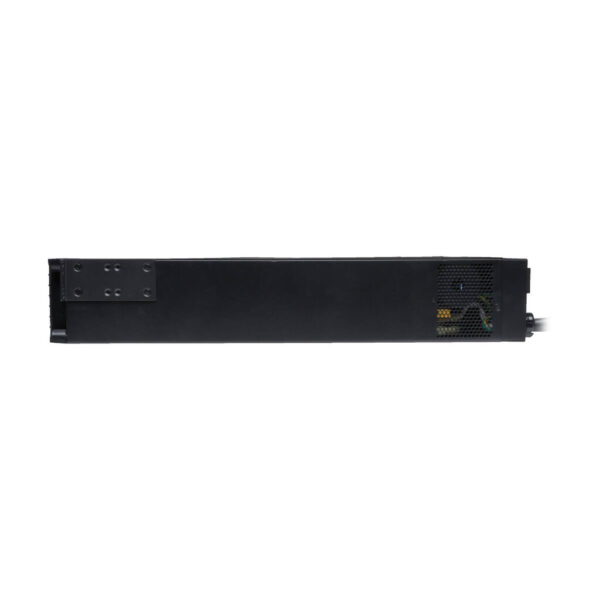

Tripp Lite series SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, Lithium Iron Phosphate (LiFePO4) Batteries, 2U, LCD, USB, DB9

Quick Specs

• LiFePO4 battery offers longer life, more cycles and faster recharge
• 97% line-mode efficiency saves energy costs
• 4 NEMA 5-15R and 4 5-15/20R outlets—2 switchable via network interface
• Compatible with network management cards
• 11.7 min. runtime at half load; 5.1 min. at full load
• To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later

Overview

The SMART2200RM2UL SmartPro® 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART2200RM2UL switches to 2.2kVA/1.92kW battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.The innovative lithium iron phosphate (LiFePO4) internal battery more than doubles the service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles. It recharges to 100-percent capacity in less than two hours, making the SMART2200RM2UL an ideal backup in case of power outage. It provides 11.7 minutes of support at half load and 5.1 minutes at full load.Featuring eight outlets and a 10-foot (3.1-meter) power cord with NEMA 5-20P input, the SMART2200RM2UL maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges. With free downloadable PowerAlert® software (available via free download), the SMART2200RM2UL enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Features

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
• Audible alarm signals loss of utility power, overload and low battery

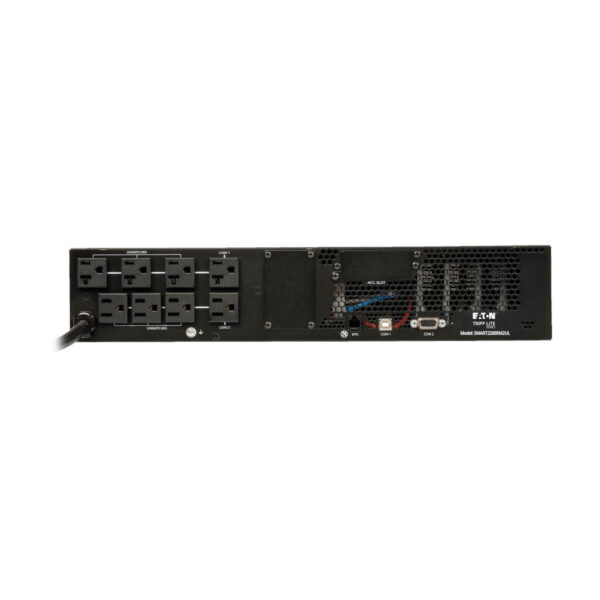

• 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets

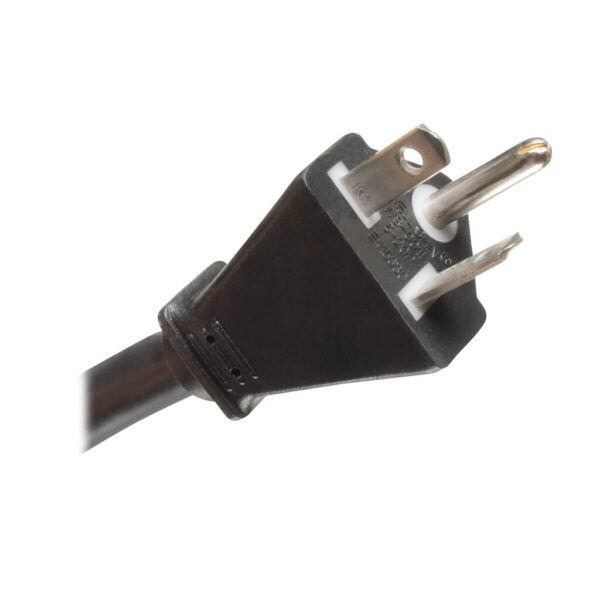

• 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
• 570-joule surge suppression rating
• 0.9 power factor rating
• 97% line-mode efficiency rating saves money in energy costs

Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery

• More than 2x the service life
• Up to 3x more charge/discharge cycles
• Recharges to 100% capacity in less than 2 hr.
• Weighs 60% less, reducing overall UPS weight
• Supports half load up to 11.7 min. and full load up to 5.1 min.

2 Load Banks with Switchable Outlets

• Can control 2 outlets remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-145V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance

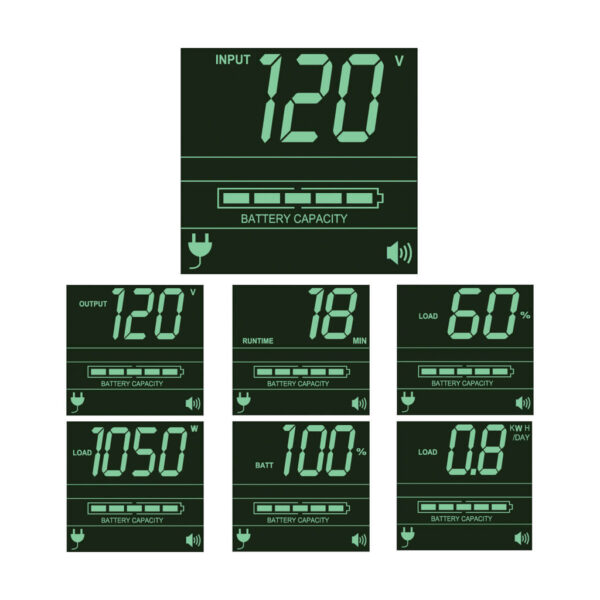

Interactive LCD Screen

• Front-panel LCD with detailed UPS and site power status and operating data
• Rotates for easy viewing in rack-mount or tower configurations

Optional Network Management Cards

• Compatible with UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with PowerAlert software (available via free download at tripplite.eaton.com/products/power-alert)
• EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
• Mounts in upright tower position with optional 2-9USTAND accessory

Backed by Ultimate Lifetime Insurance

• $250,000 Ultimate Lifetime Insurance covers any connected components (U.S., Canada and Puerto Rico only)

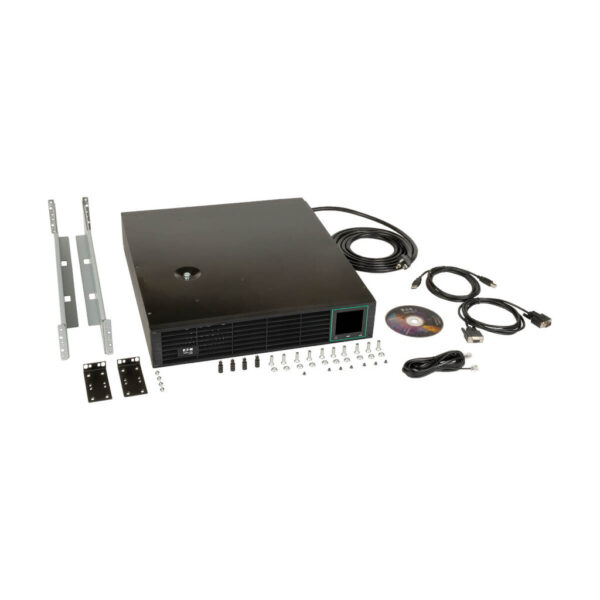

Package Includes

• SMART2200RM2UL SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS
• USB cable
• DB9 cable
• EPO cable
• Rack-mounting hardware
• Owner’s manual
