Tripp Lite series SmartPro 120V 2.2kVA 1.6kW Line-Interactive UPS, Tower, Network Card Options, USB, DB9 Serial

Quick Specs

• 2.2kVA / 2200VA line interactive tower UPS system
• 120V nominal output during brownouts to 79V and overvoltages to 147V
• Front panel status LEDs with load and battery capacity level display
• USB, RS232, EPO and slot for Network Card Options
• NEMA 5-20P input; 2 NEMA 5-15/20R and 7 5-15R outlets
• To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later

Overview

The SMART2200VS intelligent line-interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small-footprint tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large-capacity 2200VA/1600W rated UPS system offers seven minutes runtime at full load and 19 minutes at half load during power failures. Line-interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of nine outlets, three pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes two DB9 and two USB-enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with PowerAlert® and Watchdog service software.

Features

• 2200VA/1600 watt output capacity accommodates a variety of server, networking and telecom devices
• High power density 2.2kVA UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches
• Compatible with North American 120V/60 Hz power as found in the USA, Canada and Mexico
• Offers 7 minutes runtime with a full load of 2200VA and 19 minutes with a half load of 1100VA
• Intelligent battery management system extends battery life
• Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using battery power

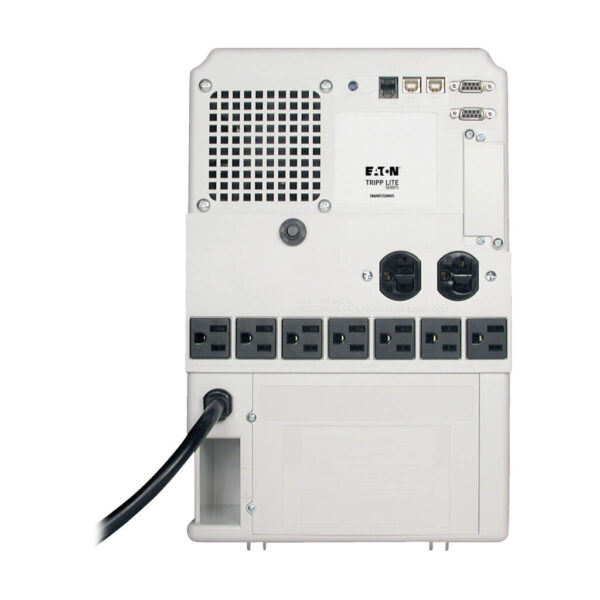

• 9 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R)
• Includes NEMA 5-20 straight blade 20 amp input plug connection

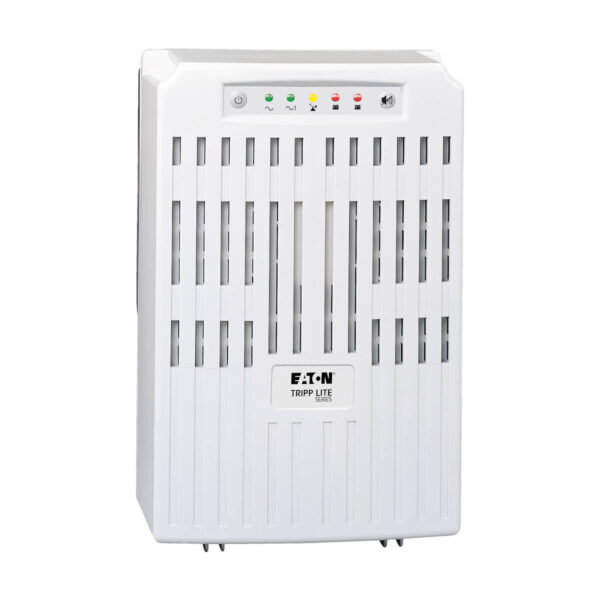

• Notification of system status via 5 LEDs and multi-function audible alarms
• USB & Serial ports enable data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
• Compatible with UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
• Supports WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
• Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
• 3 pairs of customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or shed less critical loads to extend battery runtime for the most critical equipment
• Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities
• Hot-swappable/user replaceable batteries allow on-site battery replacement without powering off connected equipment
• UPS battery set ships fully assembled and ready for use, no time consuming, connection of individual internal batteries by user is necessary

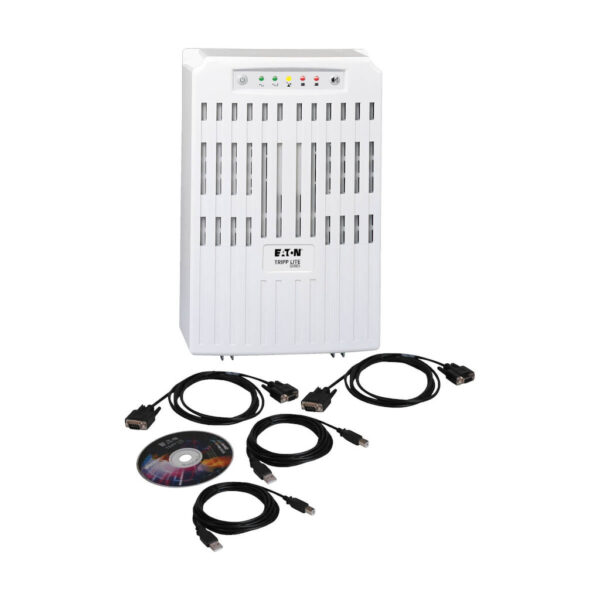

Package Includes

• SMART 2200VS UPS System,
• USB and DB9 Serial cabling
• User manual
