Tripp Lite series SmartPro 208V 5kVA 3.75kW Line-Interactive Sine Wave UPS, 3U Rack/Tower, Network Card Options, USB, DB9 Serial, TAA – SMART5000TEL3U

$5,252.86

Brand: Tripp Lite
Part Number (MPN): SMART5000TEL3U
UPC / GTIN: 037332116116
Datasheet: PDF

Tripp Lite series SmartPro 208V 5kVA 3.75kW Line-Interactive Sine Wave UPS, 3U Rack/Tower, Network Card Options, USB, DB9 Serial, TAA

Manufacturer Warehouse: 34 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
  • 208V nominal output during inputs of 174-282V; Supports 600VA 120V output
  • USB, Serial, EPO and slot for Network Management Card options
  • 97% line-mode efficiency; Hot-swappable internal batteries; Energy Star Compliant
  • NEMA L6-30P input; 2 NEMA 5-15R, 2 L6-20R and 1 L6-30R outlets

Overview

The SMART5000TEL3U intelligent line-interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rack-mount housing. Completely self-contained UPS system occupies only 3U in a standard 19-inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4-post rack enclosures. Large-capacity 5000VA/3750W UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets supports up to 600VA monitors and other low-voltage accessories. Includes slot for internal Network Management Card option. Includes USB and two DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high-current 20A and 30A 208V connectors and up to two 120V devices (max 600VA at 120V).

Features

  • Large 5000VA/3750-watt output capacity accommodates solitary large loads or multiple low-power loads
  • High power density 5kVA power module occupies only 3 rack spaces (3U)
  • 16 minutes half-load runtime (with a continuous load 2500VA; much longer runtime available at smaller loads)
  • Line-interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
  • High voltage output supports 208V server, internetworking and telecom applications
  • Pair of 120V outlets supports up to 600VA for standard 120V monitors, voicemail and other low-power networking devices
  • Five total outlets (two L6-20R, one L6-30R and two 5-15R)
  • Diagnostic LEDs provide visual indication of 17 separate performance conditions
  • USB & Serial ports enable data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
  • Built-in USB, DB9 RS-232 and DB9 contact closure communications ports for remote monitoring and unattended shutdown
  • Compatible with UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
  • Emergency Power Off (EPO) interface for emergency shutoff in large facilities
  • Hot-swappable/user-replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
  • Intelligent battery management system extends battery life
  • UPS ships fully assembled and ready for installation; no time-consuming user battery connections required

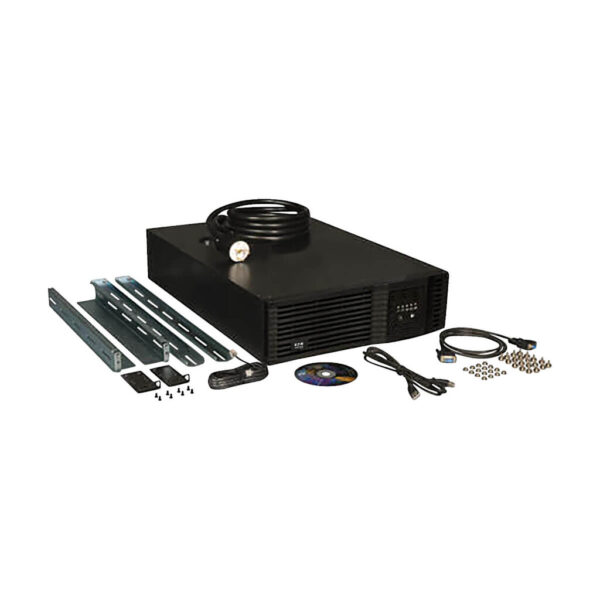

Package Includes

  • SMART5000TEL3U UPS System
  • USB & DB9 Serial cabling
  • Mounting hardware
  • Instruction manual
Weight 182 lbs
Dimensions 33 × 23 × 12 in
UPC Code

037332116116
Cord Length

10.17
Max Input Amps

24
Rack Depth

30
Output (W)

3750
Output VA

5000
Joule Rating

1020
Brand

UPS Type

Line-Interactive
Input Phase

Single-Phase
Rated input current (Maximum Load)

24A
Nominal Input Voltage(s) Supported

208V AC

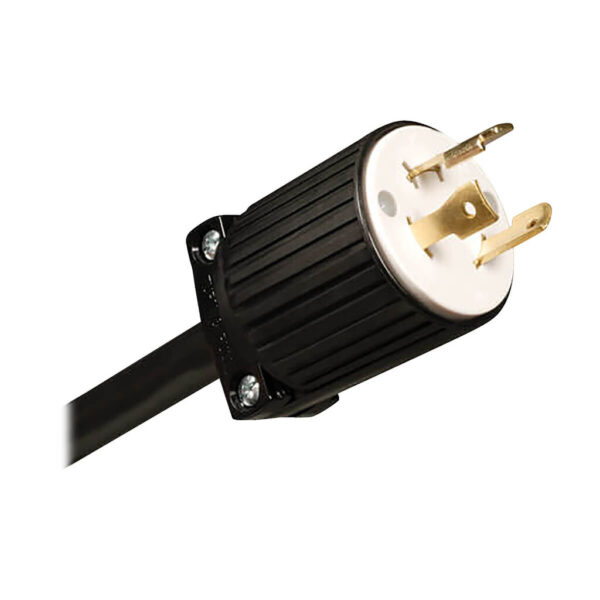

UPS Input Connection Type

L6-30P
UPS Input Cord Length (ft.)

10
UPS Input Cord Length (m)

3.1
Recommended Electrical Service

30A 208V
Output Capacity (kVA)

5
Output Capacity (kW)

3.75
Output Capacity Details

120V 5-15R outlets are limited to 450 watts (max.)
Power Factor

0.75
Nominal Voltage Details

120V output is limited to 450 watts
Frequency Compatibility

60 Hz
Output Voltage Regulation (Line Mode)

208 & 120V (-6%, +20%)
Output Voltage Regulation (Battery Mode)

+/- 5%
Output Circuit Breakers

20A double pole breaker supports L6-20R outlets, 5A breaker supports 5-15R outlets, L6-30R outlet is unbreakered
Output AC Waveform (AC Mode)

Sine wave
Output AC Waveform (Battery Mode)

Pure Sine wave
Nominal Output Voltage(s) Supported

208V

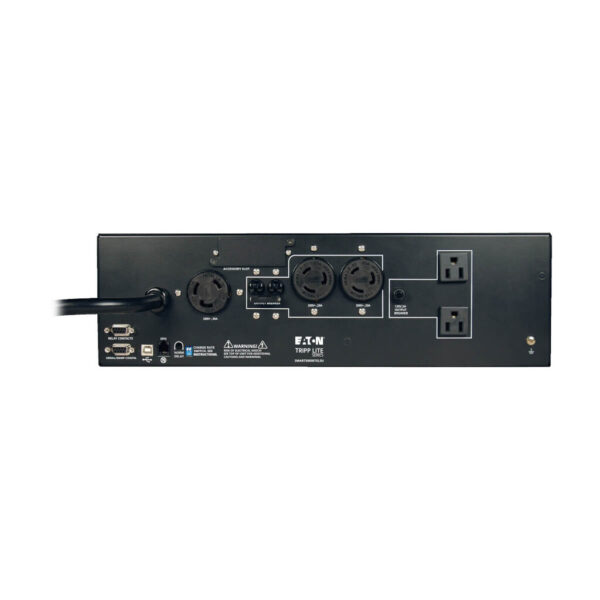

Output Receptacles

(2) 5-15R; (2) L6-20R; (1) L6-30R
Battery Type

Valve Regulated Lead Acid (VRLA)
Runtime Full Load (min.)

8.5 min. (3750W)
Runtime Half Load (min.)

20 min. (1875W)
DC System Voltage (VDC)

48
Battery Recharge Rate (Included Batteries)

Less than 4 hours from 10% to 90% (typical, full load discharge)
Battery Access

Front panel battery access door
Internal UPS Replacement Battery Cartridge

RBC94-3U (quantity 3)
Battery Replacement Description

Hot-swappable, user replaceable batteries
Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 167 to 260
Overvoltage Correction

Input voltages between 228V and 260V are reduced by 12%
Undervoltage Correction

Input voltages between 167V and 194V are boosted by 12%
Switches

2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Audible Alarm

Audible alarm indicates power-failure, overload and low-battery conditions

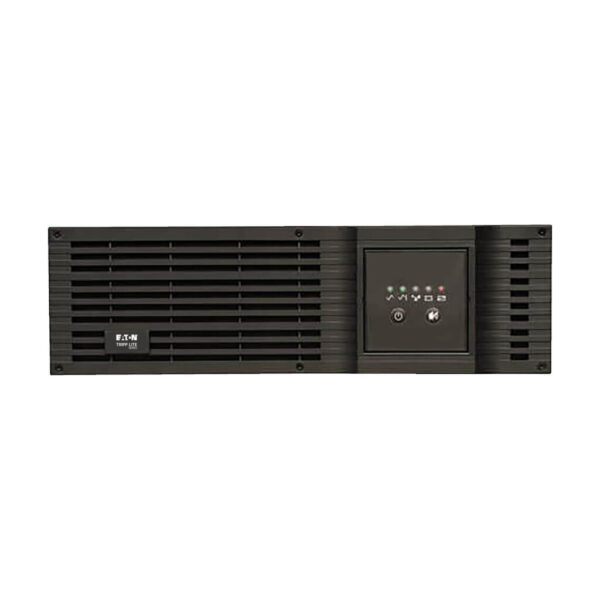

LED Indicators

5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
EMI / RFI AC Noise Suppression

Yes
AC Suppression Joule Rating

1020
AC Suppression Response Time

Instantaneous
Primary Form Factor

Rackmount
Rack Height

3U
Cooling Method

Fan
Installation Form Factors Supported with Optional Accessories

2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
Minimum Required Rack Depth (cm)

76.20
Primary UPS Depth (mm)

635
Primary UPS Height (mm)

133
Primary UPS Width (mm)

445
Shipping Dimensions (hwd / cm)

30.48 x 58.42 x 83.82
Shipping Weight (kg)

82.55
UPS Housing Material

Steel
UPS Power Module Dimensions (hwd, cm)

13.34 x 44.45 x 63.50
UPS Power Module Weight (kg)

65.00
Unit Weight (kg)

65.00
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

5° to 122°F (-15° to 50°C)
Relative Humidity

0-95% non-condensing
AC Mode BTU / Hr. (Full Load)

366
AC Mode Efficiency Rating (100% Load)

97%
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load

1423
Audible Noise

45 dBA maximum, front side 1m
Network Management Cards

TLNETCARD; WEBCARDLXE
Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions
PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
Communications Cable

USB and DB9 cabling included
WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Management Card Description

Network management card optional
Communications Interface

Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB
Transfer Time

7 milliseconds (AC to Battery), 1 millisecond (Battery to AC)
Low Voltage Transfer to Battery Power (Setpoint)

167
High Voltage Transfer to Battery Power (Setpoint)

260
Cold Start (Startup in Battery Mode During a Power Failure)

Cold-start operation supported
High Availability UPS Features

Auto Probe Monitoring (requires WEBCARDLXE); Automatic Voltage Regulation (AVR); Hot swappable batteries; Remote management; Surge/noise protection
Green Energy-Saving Features

Greater than 95% efficiency – GREEN UPS
Grounding Details

Back panel grounding lug
UPS Applications

Large Network
Product Certifications

CSA (Canada); UL 1778; NOM (Mexico)
Product Compliance

RoHS; ENERGY STAR Qualified; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
