.75kVA / 750VA / 600W line interactive 1U rack/vertical UPS, Sine wave output
120V output, Corrects brownouts and overvoltages from 83V to 147V
0.8 Power Factor, Front panel status LEDs
Mounting brackets support 2 and 4 post installation
98% line-mode efficiency, 2 switched load banks
USB, RS232, EPO and slot for Network Management Card options
120V NEMA 5-15P input, 6 NEMA 5-15R outlets
To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
Overview

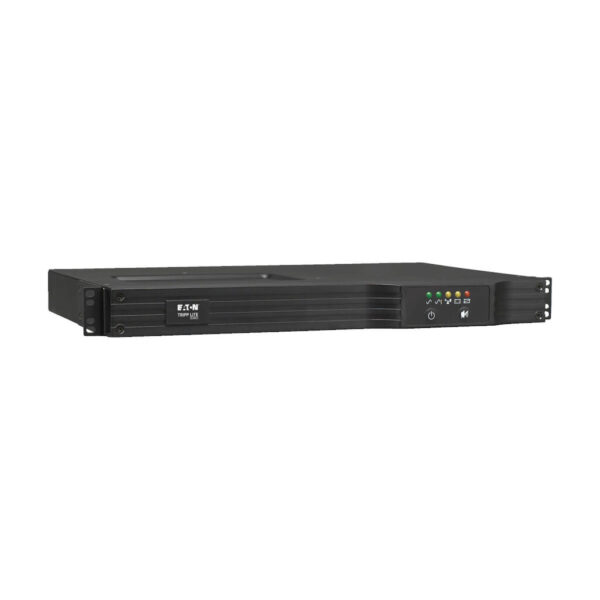

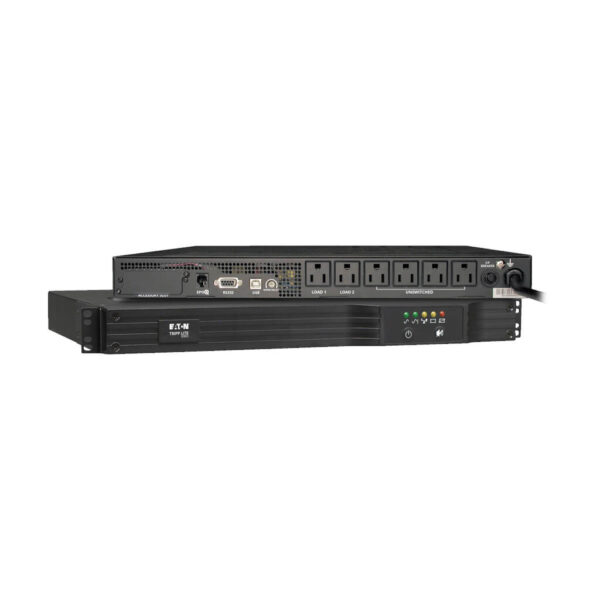

The SMART750RM1U 750VA/600W line-interactive sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/vertical configuration. Simultaneous-use network management interfaces include USB, RS-232 and slot for optional Network Management Card options. Line-interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in data centers, computer rooms and network closets.
Features
SMART750RM1U .75kVA / 750VA / 600 watt line interactive UPS
1U rack/vertical compatible form factor
Included mounting brackets support 2 and 4-post rack-mount installation; Optional 4POSTRAILKIT1U is available for additional support

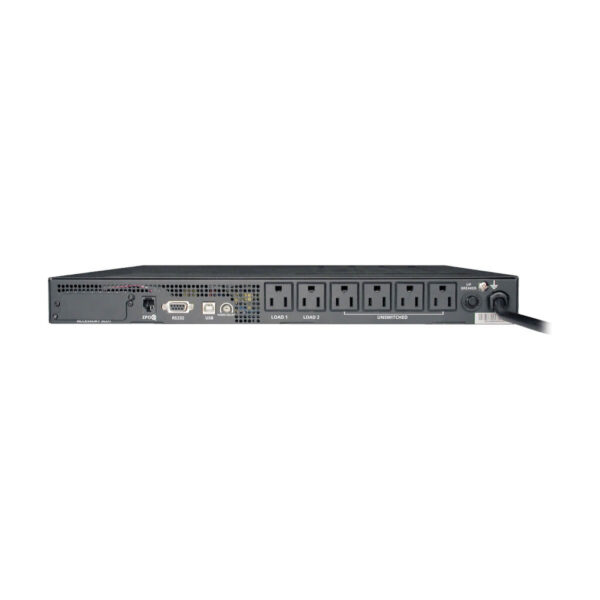

NEMA 5-15P input; 6 5-15R output receptacles
Installed depth of only 16.75 in. / 42.5cm
Sine wave output in both AC and battery backup modes
Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
Full load efficiency rating of 98% saves energy and ensures cool operating temperatures
Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
USB & Serial ports enable data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and macOS
Compatible with UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
3 stage metered LEDs offer current monitoring and battery charge level
Mains power and voltage regulation LEDs offer at-a-glance power status information
Front panel switches support self-test and alarm cancel functions
Field replaceable, hot-swappable internal UPS batteries
Less than 4 hours from 10% to 90% (typical, full load discharge)
Battery Access
Front panel battery access door
Internal UPS Replacement Battery Cartridge
RBC64-1U
Battery Replacement Description
Hot-swappable, user replaceable batteries
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Undervoltage Correction
Input voltages between 83 and 107 are boosted by 14%
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
LED Indicators

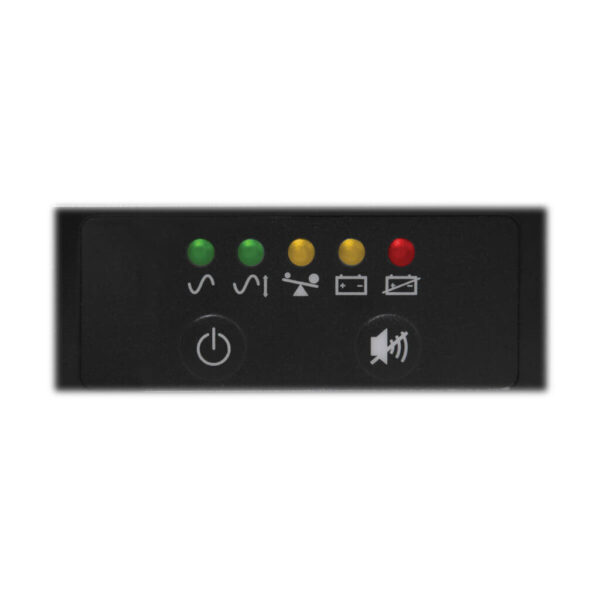

5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
EMI / RFI AC Noise Suppression
Yes
AC Suppression Joule Rating
450
AC Suppression Response Time
Instantaneous
Primary Form Factor
Rackmount; Vertical
Rack Height
1U
Cooling Method
Fan
Installation Form Factors Supported with Optional Accessories
4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Vertical Mount Enclosures ( SRWF5U36 , SRWF5U , SRWF10UMOD )
Minimum Required Rack Depth (cm)
50.80
Optional Mounting Accessory Notes
Optional 4POSTRAILKITWM enables installation in 4-port short-depth racks from 14.5 to 23.5 inches (368 to 597mm); Optional 4POSTRAILKIT1U enables installation in 4-post full-depth racks from 20.5 to 36 inches (521 to 914mm)
Primary UPS Depth (mm)
425
Primary UPS Height (mm)
44
Primary UPS Width (mm)
445
Shipping Dimensions (hwd / cm)
13.21 x 58.67 x 52.58
Shipping Weight (kg)
15.47
UPS Housing Material
Steel
UPS Power Module Dimensions (hwd, cm)
4.44 x 44.45 x 42.54
UPS Power Module Weight (kg)
13.61
Unit Weight (kg)
13.61
Mounting Details

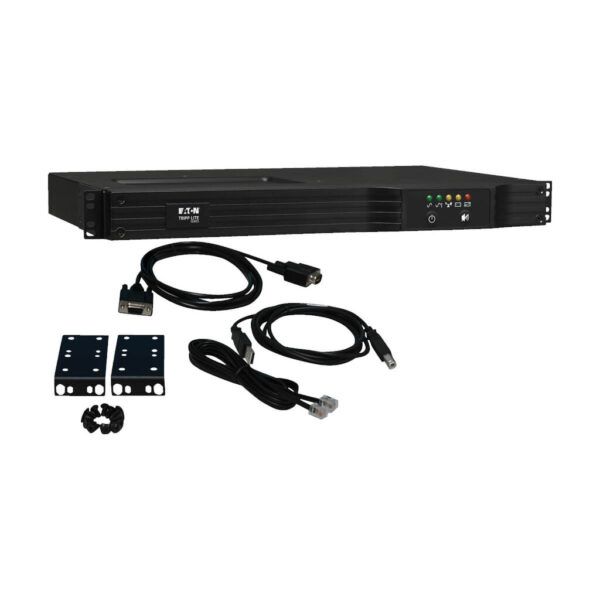

Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Relative Humidity
0-95% non-condensing
AC Mode BTU / Hr. (Full Load)
38
AC Mode Efficiency Rating (100% Load)
98%
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load
545
Audible Noise
45 dBA maximum, front side 1m
Network Management Cards
TLNETCARD; WEBCARDLXE
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Management Card Description
Network management card optional
Communications Interface
DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB
Transfer Time
5 milliseconds AC to DC; 1 millisecond DC to AC
Low Voltage Transfer to Battery Power (Setpoint)
83
High Voltage Transfer to Battery Power (Setpoint)
147
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
High Availability UPS Features
Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic Voltage Regulation (AVR); Hot swappable batteries; Remote management; Surge/noise protection
Grounding Details
Back panel grounding lug
UPS Applications
Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Product Compliance
RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
