.75kVA / 750VA / 600W line interactive 1U rack/vertical UPS, Sine wave output
120V output, Corrects brownouts and overvoltages from 83V to 147V
0.8 Power Factor, Front panel status LEDs
Mounting brackets support 2 and 4 post installation
98% line-mode efficiency, 2 switched load banks
USB, RS232, EPO and Pre-installed WEBCARDLX Network Interface
120V NEMA 5-15P input, 6 NEMA 5-15R outlets
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
Overview

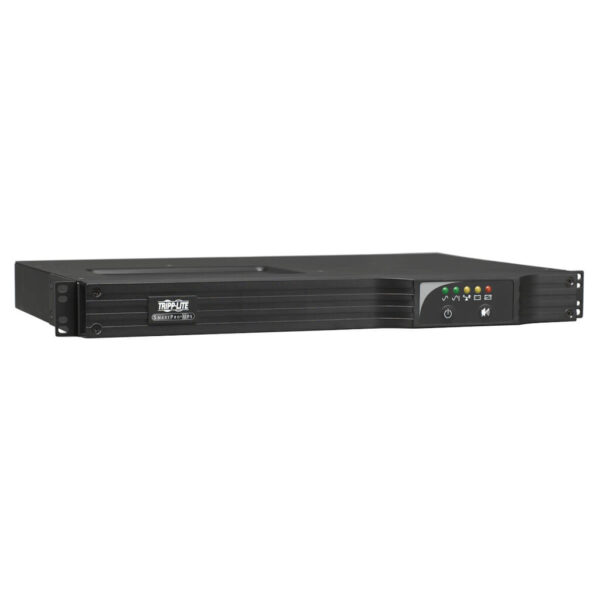

SMART750RM1U 750VA/.75kVA/600W line-interactive sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/vertical configuration. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Line-interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in data centers, computer rooms and network closets.
Features
SMART750RM1U .75kVA / 750VA / 600 watt line interactive UPS
1U rack/vertical compatible form factor
Included mounting brackets support 2 and 4-post rack-mount installation; Optional 4POSTRAILKIT1U is available for additional support

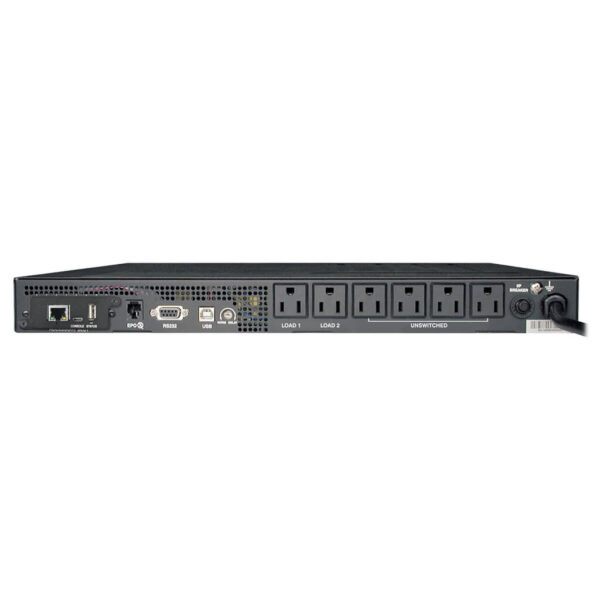

NEMA 5-15P input; 6 5-15R output receptacles
Installed depth of only 16.75 in. / 42.5cm
Sine wave output in both AC and battery backup modes
Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
Full load efficiency rating of 98% saves energy and ensures cool operating temperatures
Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
Network interfaces support communications via built-in USB, DB9 serial / contact-closure and pre-installed WEBCARDLX network management card
WEBCARDLX interface allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH or Command Line
Reduce Service Calls with Auto Probe Autonomous Device Management. The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the PowerAlert Network Shutdown Agent (PANSA)
Optional E2 sensors enable site monitoring of temperature, humidity and contact-closure status
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and macOS
Intelligent battery management system extends battery life
3 stage metered LEDs offer current monitoring and battery charge level
Mains power and voltage regulation LEDs offer at-a-glance power status information
Front panel switches support self-test and alarm cancel functions
Field replaceable, hot-swappable internal UPS batteries
Package Includes
SMART750RM1U with Pre-installed WEBCARDLX network interface
3.6 hours maximum from 10% to 90% (typical, full load discharge)
Battery Access
Front panel battery access door
Internal UPS Replacement Battery Cartridge
RBC64-1U
Battery Replacement Description
Hot-swappable, user replaceable batteries
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Undervoltage Correction
Input voltages between 83 and 107 are boosted by 14%
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions

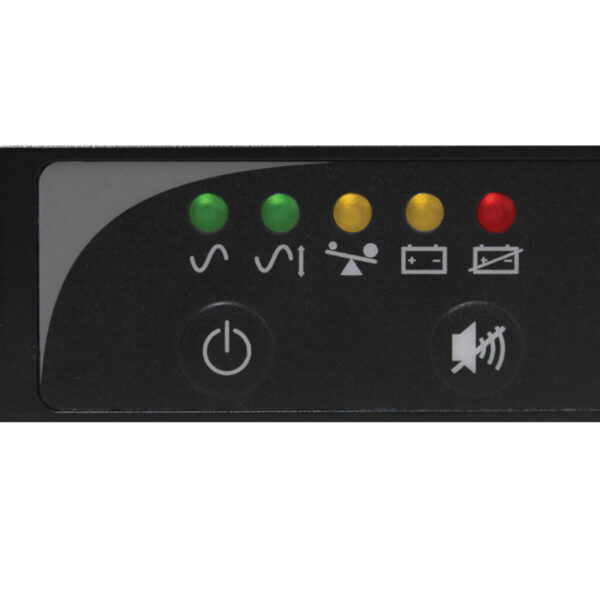

LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status. Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).
EMI / RFI AC Noise Suppression
Yes
AC Suppression Joule Rating
450
AC Suppression Response Time
Instantaneous
Primary Form Factor
Rackmount; Vertical
Rack Height
1U
Cooling Method
Fan
Installation Form Factors Supported with Optional Accessories
4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Vertical Mount Enclosures ( SRWF5U36 , SRWF5U , SRWF10UMOD )
Minimum Required Rack Depth (cm)
50.80
Optional Mounting Accessory Notes
Optional 4POSTRAILKITWM enables installation in 4-port short-depth racks from 14.5 to 23.5 inches (368 to 597mm); Optional 4POSTRAILKIT1U enables installation in 4-post full-depth racks from 20.5 to 36 inches (521 to 914mm)
Primary UPS Depth (mm)
425
Primary UPS Height (mm)
44
Primary UPS Width (mm)
445
Shipping Dimensions (hwd / cm)
13.46 x 53.85 x 56.90
Shipping Weight (kg)
15.56
UPS Housing Material
Steel
UPS Power Module Dimensions (hwd, cm)
4.44 x 44.45 x 42.54
UPS Power Module Weight (kg)
13.61
Unit Weight (kg)
13.61
Mounting Details
Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Relative Humidity
0-95% non-condensing
AC Mode BTU / Hr. (Full Load)
38
AC Mode Efficiency Rating (100% Load)
98%
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load
545
Audible Noise
45 dBA maximum, front side 1m
Network Management Cards
WEBCARDLXE
Network Monitoring Port Description
Includes pre-installed WEBCARDLX Network Management Card
DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB
Transfer Time
5 milliseconds AC to DC; 1 millisecond DC to AC
Low Voltage Transfer to Battery Power (Setpoint)
83
High Voltage Transfer to Battery Power (Setpoint)
147
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
High Availability UPS Features
Auto Probe Monitoring and Reboot (included); Automatic Voltage Regulation (AVR); Hot swappable batteries; Remote management; Surge/noise protection
Grounding Details
Back panel grounding lug
UPS Applications
Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Product Compliance
RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
$250,000 Ultimate Lifetime Insurance
TLWFLN72XX2509UC
2-Year Onsite Service Contract -0-2500 VA UPS, Smart, SMX, SU systems
TLWFLN73XX2509UC
3-Year Onsite Service Contract -0-2500 VA UPS, Smart, SMX, SU systems
TLWFLN75XX2509UC
5-Year Onsite Service Contract -0-2500 VA UPS, Smart, SMX, SU systems
TL5SW5Y0950UC
5-Year Extended Warranty Smart & SMX 0-950 VA UPS systems
TLAS00NXXX6009UC
UPS Assembly on UPS Systems 0-6000 VA for select products, Smart, SMX, SU UPS
Part Number
Description
TLSU05NXXX6009UC
UPS Startup on UPS Systems 0-6000 VA for select products, Smart, SMX, SU UPS
