Accommodates shallow equipment up to 27 in. in depth
Houses up to 3500 lbs (1588 kgs) of equipment
Allows ample airflow to keep equipment cool
Locks securely to help prevent damage or theft
Ships fully assembled and ready to deploy
Overview

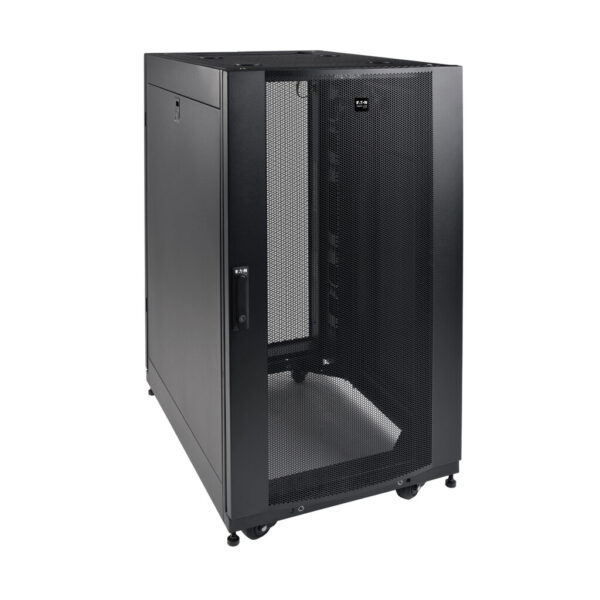

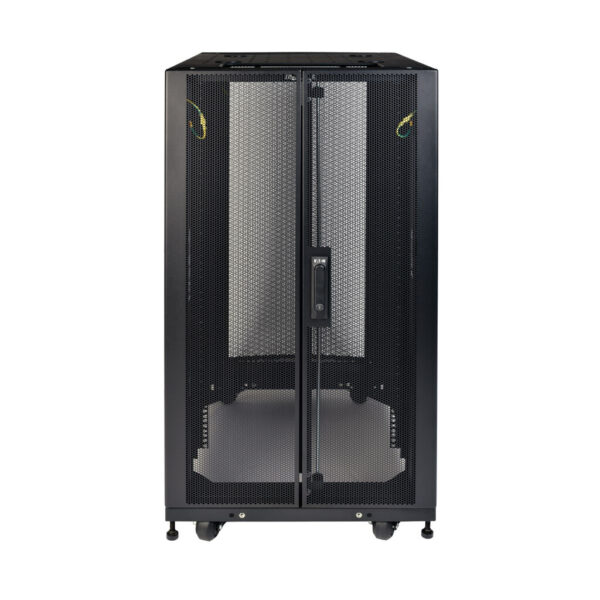

The SR25UBSD3 25U SmartRack® Shallow-Depth Rack Enclosure Cabinet houses equipment up to 27 inches in depth—ideal for storing shallow audio/video components and smaller equipment in areas with limited floor space. Constructed of steel with a resilient textured powder-coated finish, the SR25UBSD3 features adjustable mounting rails that accommodate up to 3,500 pounds (1,588 kilograms) of equipment in 25U of rack space.
To ensure your valuable equipment stays safe and secure, the side panels, reversible back door and reversible, removable front door lock to prevent unauthorized access. The front and rear doors are perforated, which allows air to flow freely through the rack to keep equipment cool. Vented top panels and an open bottom help remove warm air from the enclosure and draw in cool air by convention (they also support the installation of standard case fans, such as SRFANROOF).
The SR25UBSD3 comes fully assembled with removable casters that let you roll the fully loaded enclosure to its desired location. Installing equipment within the enclosure is easy enough with its square mounting holes and numbered rack spaces. The front and rear vertical rails adjust in 1/4-inch increments from four to 27 inches. Just unscrew the rails, slide them to the desired depth and tighten the screws. The enclosure supports toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This makes cable routing to rack equipment easier and reduces clutter.
Features
Saves Valuable Workspace
Front and rear vertical mounting rails adjust from 4 in. to 27 in. deep to accommodate shallow equipment
Front and rear rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
Rack spaces numbered for easy reference
Perfect for areas with limited floor space—wiring closets, offices, classrooms, etc.
Houses up to 3500 lbs (1588 kgs) of equipment in 25U of rack space
Keeps Important Equipment Secure
Side panels, reversible back door and reversible, removable front door lock tight
Removable side panels allow easy access to equipment for maintenance and replacement
Perforated front and rear doors allow generous airflow to keep equipment cool
65+% open space in door perforation meets or exceeds server manufacturer requirements
Vented top panel and open bottom help remove warm air and draw in cool air
Compatible with airflow optimization accessories
Supports toolless button-mount 0U installation of compatible PDUs and cable managers
Easy Cable Access
Convenient cable access through top panel ports and open bottom
Panel removes in seconds without tools or disconnecting cables
Compatible with cable management accessories
Convenient Grounding System
All components grounded to steel frame
Multiple connections included for facility ground
Front and rear doors include quick-release ground wires
Fast Enclosure Installation
Ships fully assembled for quick deployment
Split rear door reduces clearance to let you place the enclosure close to a wall
Built-in baying tabs let you combine enclosures in a row
Can set center-to-center width at 24 in. (600 mm) to match standard data center floor tiles
Removable heavy-duty casters let you roll the fully loaded enclosure to its desired location
Removable levelers for positioning on uneven floors
Included stabilizing brackets help secure the enclosure in place
Meets Proper Compliance Standards
Meets all enclosure requirements toward PCI DSS (Payment Card Industry Data Security Standard) compliance
