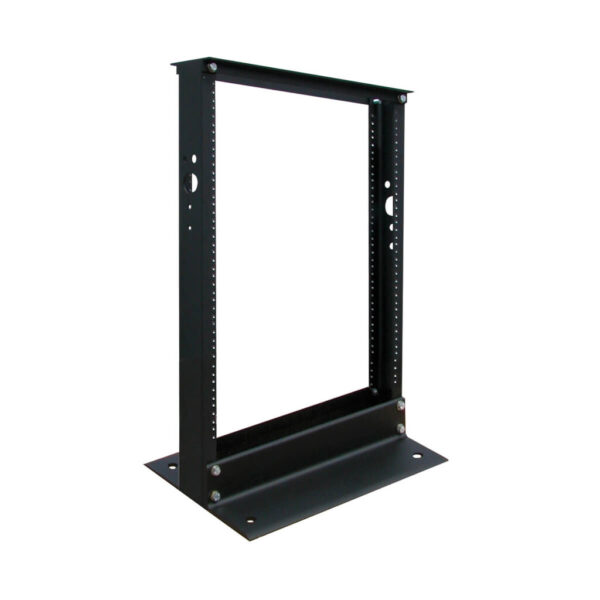

Tripp Lite series 13U SmartRack 2-Post Open Frame Rack – Organize and Secure Network Rack Equipment

Quick Specs

• 13U 2-post open frame rack
• Black aluminum with 12-24 threaded and numbered mounting holes

Overview

The SR2POST13 2-Post SmartRack Open Frame Rack is an economical way to accommodate 13U of rack space for 19-inch rack-mount applications in limited spaces. Its heavy-duty, aluminum construction can safely support 800 pounds (362.9 kilograms) of rack-mount equipment. The black textured powder-coat finish makes it resistant to scratching while giving it a classic attractive appearance. The SR2POST13 is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting positions along with bolt-down provisions. Only standard hand tools are required for installation (9/16″ wrench and 9/16″ socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization as needed. The SR2POST13 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS.

Features

• Supports 800 lbs (362.9 kgs) of rackmount equipment
• Textured powder coat finish
• Heavy Duty Aluminum construction
• 12-24 threaded and numbered mounting positions
• Bolt down provisions
• Self squaring design
• Black finish
• Easy assembly

Package Includes

• SR2POST13
• 28 pieces each of 12-24 screws and washers for equipment mounting
• Installation hardware
• Cable management hooks
• Warranty Information
• Owner’s Manual
