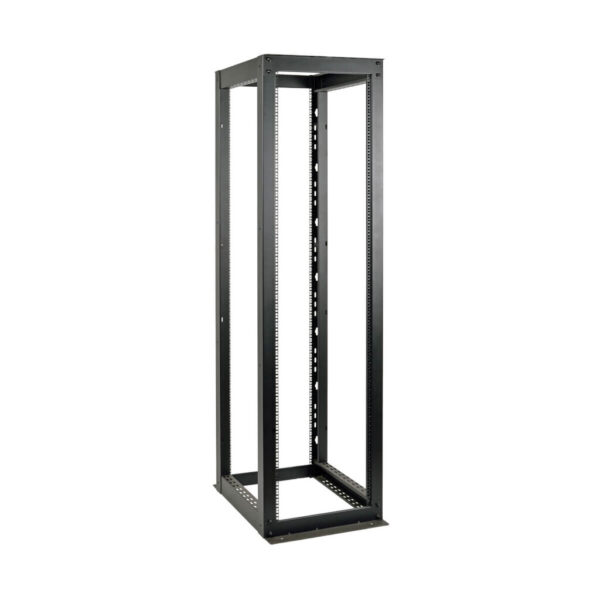

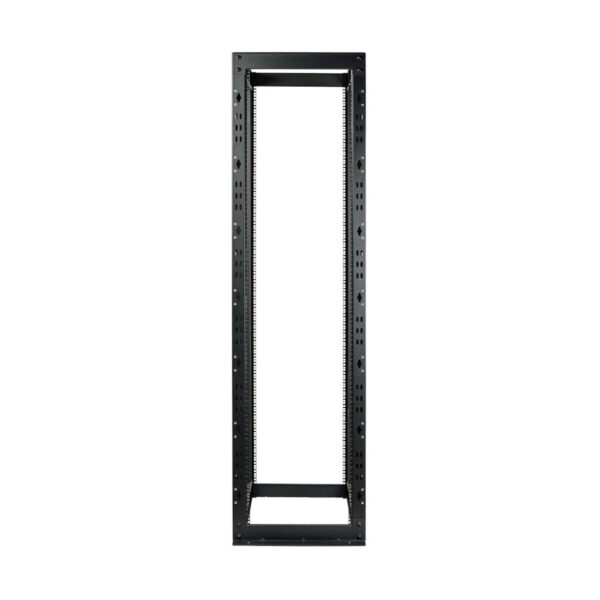

Tripp Lite series 52U Heavy-Duty 4-Post SmartRack Open Frame Rack – Organize and Secure Network Rack Equipment

Quick Specs

• 52U Heavy-Duty 4-post open frame rack
• Black steel with square, numbered mounting holes
• Toolless button holes to accept PDUs or cable managers

Overview

This 52U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST52HD is a simple solution for housing IT equipment in secure environments and other areas that don’t require a lockable rack solution. This 52U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 3,000 pounds (1360.8 kilograms). The SR4POST52HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

The open design provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST52HD supports equipment depths up to 35 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (sold separately) adds mobility to the SR4POST52HD. The SR4POST52HD also supports optional side panels with the SR52SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.

Features

• Weight capacity of 3000 lbs (1360.8 kgs) stationary
• Supports equipment depths up to 35 inches
• Textured, black powder coat finish
• Heavy-duty cold-rolled steel construction
• Numbered mounting positions
• Bolt down provisions
• Self-squaring design
• Easy assembly
• Optional SRCASTERHDKIT heavy-duty caster kit permits mobile use of 3000 lbs (1360.8 kgs) rolling loads
• Optional SR52SIDE4PHD side panels for end-of-the-row aesthetics

Package Includes

• SR4POST52HD Heavy-Duty 4-Post Open Frame Rack
• Installation hardware
• (2x) PDU/Cable management brackets
• Owner’s manual with warranty information
