Tripp Lite series SmartRack Copper Bus Grounding Bar

Quick Specs

• Attach to rack enclosure cabinets or open frame racks to provide ground contact
• Heavy-gauge solid copper
• All hardware is included

Overview

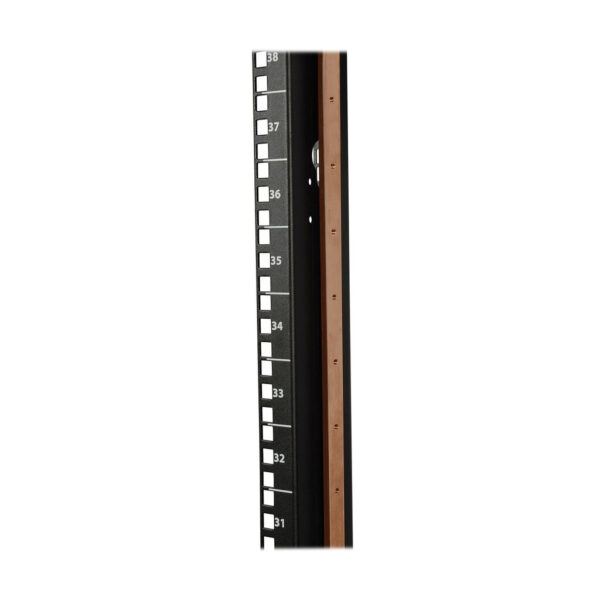

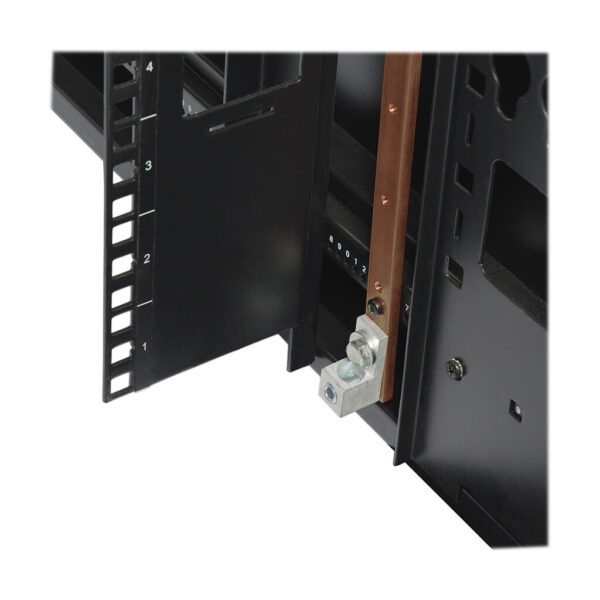

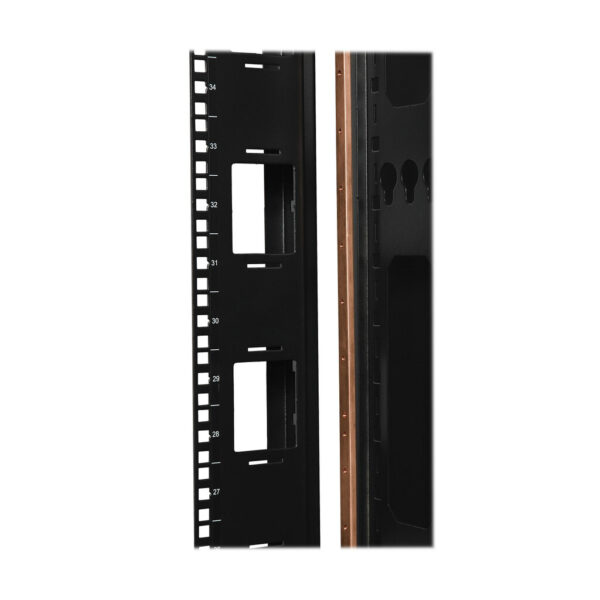

The SRGROUND is a full-length (42U) bus grounding bar made from heavy-gauge solid copper that attaches to Rack Enclosure Cabinets or Open Frame Racks to provide convenient ground contact for standard rack-mount equipment. Every other U space has a drilled and tapped hole to allow a ground wire “jumper” to be installed. The jumper then bridges to the individual pieces of equipment with grounding straps, allowing a direct path to ground, rather than going through surrounding equipment. The SRGROUND can mount in an enclosure in two ways: it can be screwed into the Rack Enclosures (hardware included) or it can be installed using the toolless mounting buttons in the Open Frame Racks.

Features

• Full length (42U) bus grounding bar made from heavy-gauge solid copper that attaches to Rack Enclosure Cabinets or Open Frame Racks to provide convenient ground contact for standard rack-mount equipment
• Every other U space has a drilled and tapped hole to allow a ground wire “jumper” to be installed
• The jumper then bridges to the individual pieces of equipment, with grounding straps, allowing a direct path to ground rather than going through surrounding equipment
• Can mount in a enclosure in two ways: it can be screwed into the Rack Enclosures (hardware included), or it can be installed using the tool less mounting buttons in the Open Frame Racks

Package Includes

• SRGROUND Copper Bus Grounding Bar
• (21) Grounding straps
• (3) Mounting buttons
• (21) M4 screws
• (21) Washers
• Owners Manual
