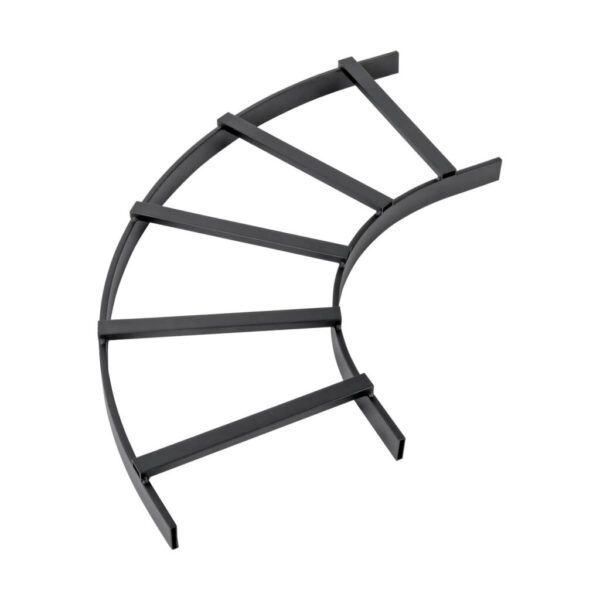

Tripp Lite series Cable Ladder Runway E-Bend – 90 Degrees, 18 in. Width

Quick Specs

• Routes bundles overhead to eliminate cable stress and cut cord clutter
• Installs parallel or perpendicular to rack to span aisles or spaces between racks
• Lightweight tubular steel construction designed to fit 18 in. cable runway widths
• Conforms to Cat5e/6/6a standards for high-density network applications
• Compatible with SmartRack® components for toolless assembly

Features

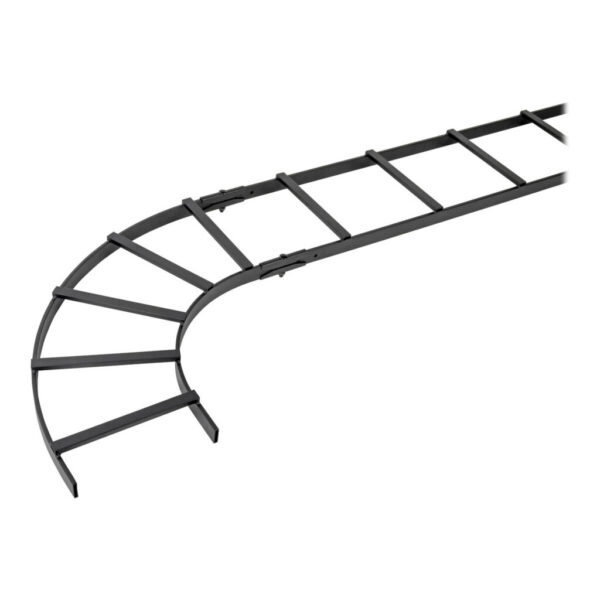

Cable Runway E-Bend Creates a 90-Degree Gradual Sweep for Horizontal Cable Ladder RunsThe SmartRack SRL90BEND18 allows you to place a curved right angle in your horizontal cable runway application. It connects to your 18-inch cable runway above your rack enclosure or open frame rack to allow flexibility in your overhead cable routing. Install it either parallel or perpendicular to the rack for clean, organized cable routing across an aisle or within a row.Measures 18 in. Wide with a 33 in. Wide BendThis cable E-bend conforms to minimum-bend radius requirements (typically four times the cable diameter). It’s made from lightweight tubular steel measuring 1.5 x 0.375 inches (38 x 9.5 millimeters). It fits 18-inch (457-millimeter) cable runway widths, and meets Cat5e/6/6a requirements.Designed for Use with Rack Cabling ComponentsThe SRL90BEND18 ships fully assembled for connecting right out of the package. It’s compatible with 18-inch SRCABLELADDER18 and SRLBUTTSPLICE kit for toolless assembly. All accessories are sold separately.

System Requirements

• Works with SRCABLELADDER18 and SRLBUTTSPLICE

Package Includes

• SRL90BEND18 Cable Ladder Runway E-Bend – 90 Degrees, 18 in. Width
• Installation guide
