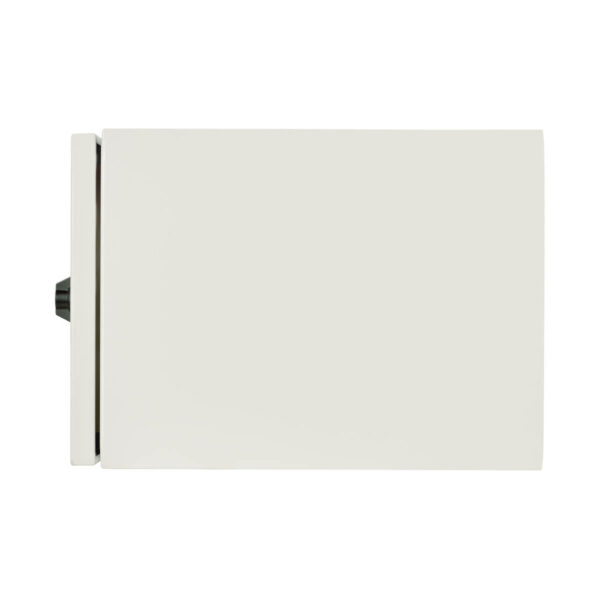

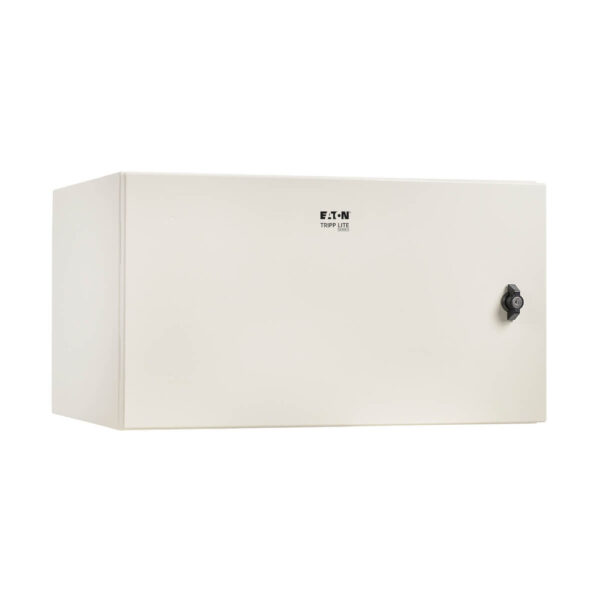

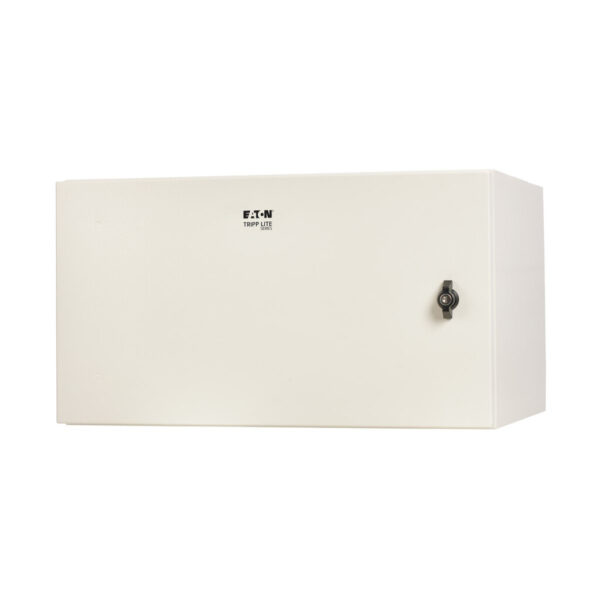

Tripp Lite series SmartRack Industrial Enclosure with Lock – NEMA 4, Wall Mount, Metal Construction, 16.5 in. Depth, 6U, Gray

Quick Specs

• Enclosed, sealed metal housing protects 6U of rack equipment up to 16.5 in. deep
• NEMA 4 enclosure provides protection against water, ice, snow and other moisture

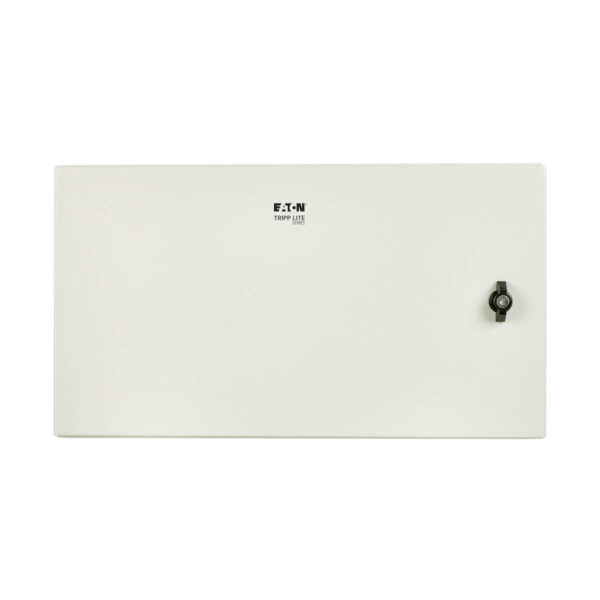

• Door locks securely with included keys to help prevent damage, tampering or theft

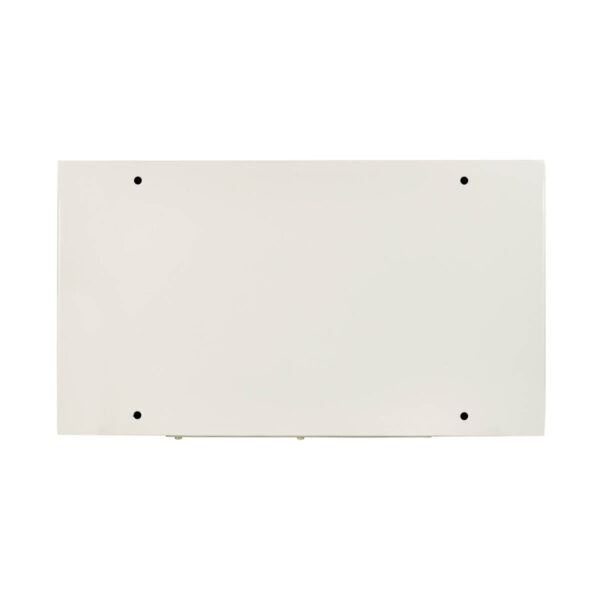

• Ships fully assembled for immediate wall-mounting with user-supplied hardware

Features

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 16.5 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from heavy-duty steel with a durable gray powder-coated finish, the SRN4G6U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.

NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G6U protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.

Locks Securely to Help Prevent Theft, Damage and Tampering

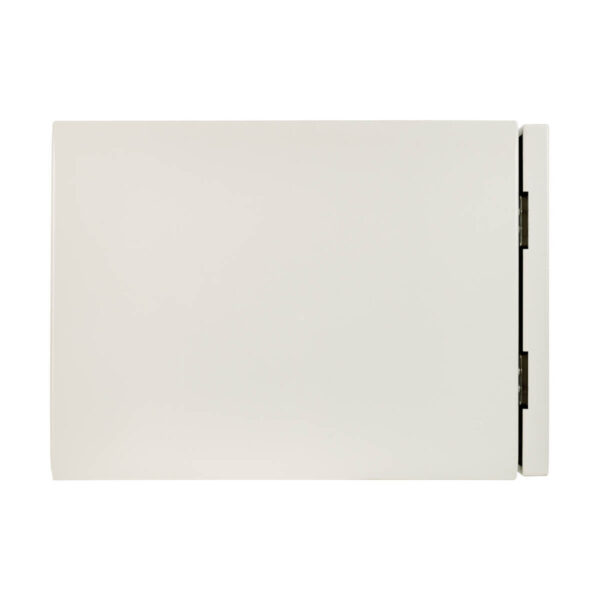

The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed door swings away on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.

Easy Enclosure and Equipment Installation

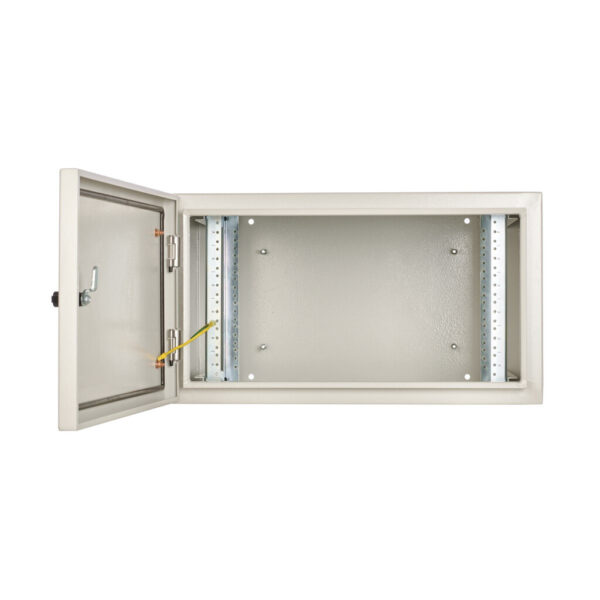

This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 16.5 inches deep. Hardware for mounting equipment inside the enclosure is included.

Package Includes

• SRN4G6U Industrial Enclosure
• (24) 10-32 screws
• (24) M6 washers
• (4) LDPE sheet metal plugs
• (4) M10 foam washers
• (2) Keys
• Owner’s manual
