Tripp Lite series SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

$665.42

Brand: Tripp Lite
Part Number (MPN): SRW10USG
UPC / GTIN: 037332187345
Datasheet: PDF

Tripp Lite series SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

Manufacturer Warehouse: 36 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Maximum load capacity of 200 lbs (90.7 kgs)
  • Swings away from wall on hinge for easy back-door access

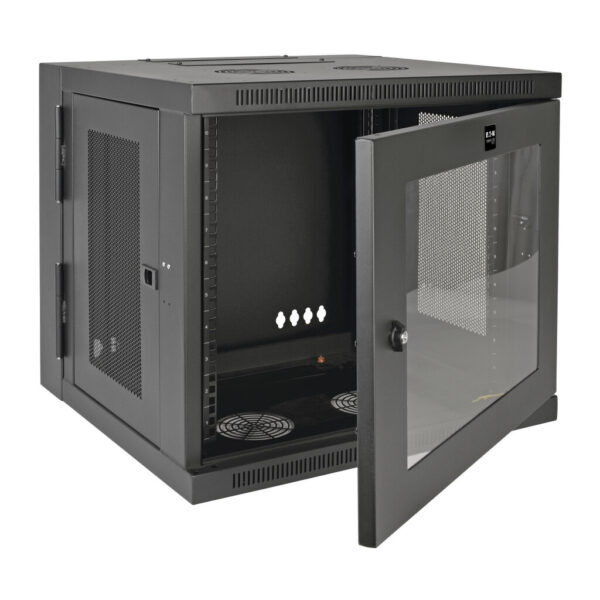

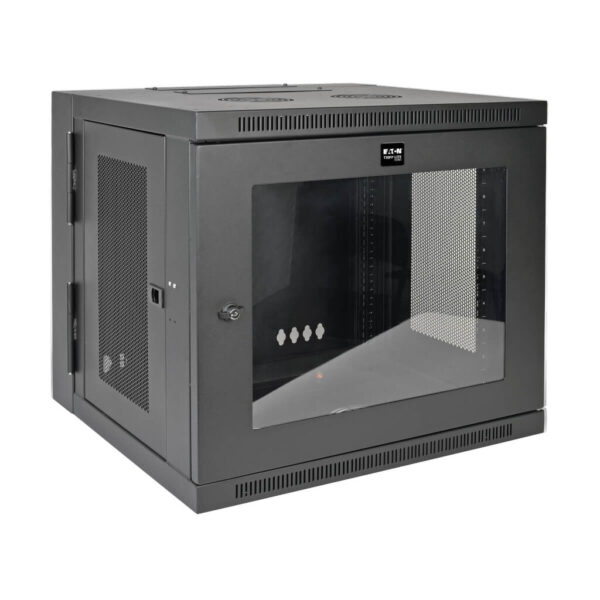

  • Front door includes shatter-resistant clear acrylic window
  • Locking steel cabinet vented at sides, top and bottom
  • Secures 10U of 19 in. rack equipment up to 20.5 in. deep

Features

Saves Valuable Workspace

  • Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
  • Houses EIA-standard 19 in. rack equipment in 10U of space
  • Maximum load capacity of 200 lb.

Hinged Cabinet for Convenient Access

  • Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
  • Rotate cabinet 180° before mounting to open reversible doors left or right

Shatter-Resistant Clear Acrylic Front Window

  • Lets you monitor equipment without unlocking the enclosure
  • Prevents equipment tampering
  • Reduces acoustic noise
  • Provides extra visual flair

Keeps Important Equipment Secure

  • Side panels and doors lock securely to help prevent damage, tampering or theft
  • Vented panels allow generous airflow that keeps equipment cool
  • Convenient ports with removable covers allow cable routing through top and bottom

Easy Enclosure and Equipment Installation

  • Ships fully assembled for quick installation
  • Mounts to wall or rolls on floor with optional SRCASTER caster kit

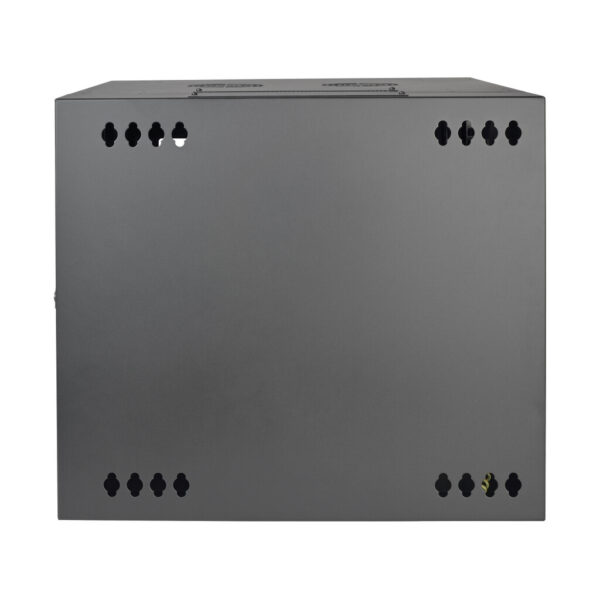

  • Wall-mounting holes spaced 16 in. apart for standard wall stud placement

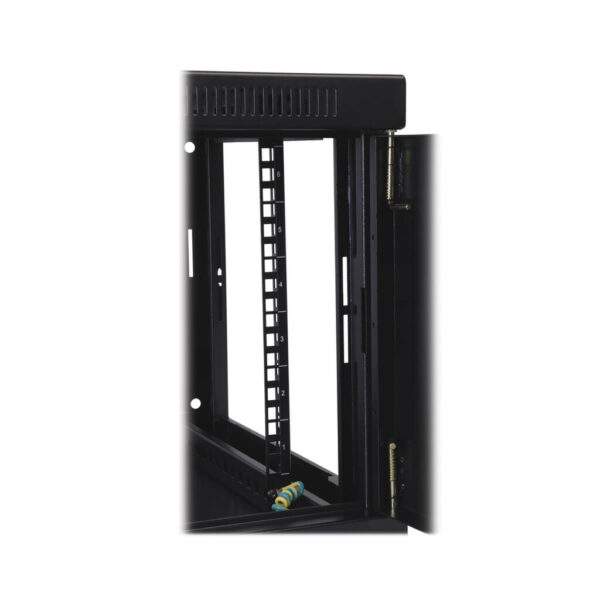

  • Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels

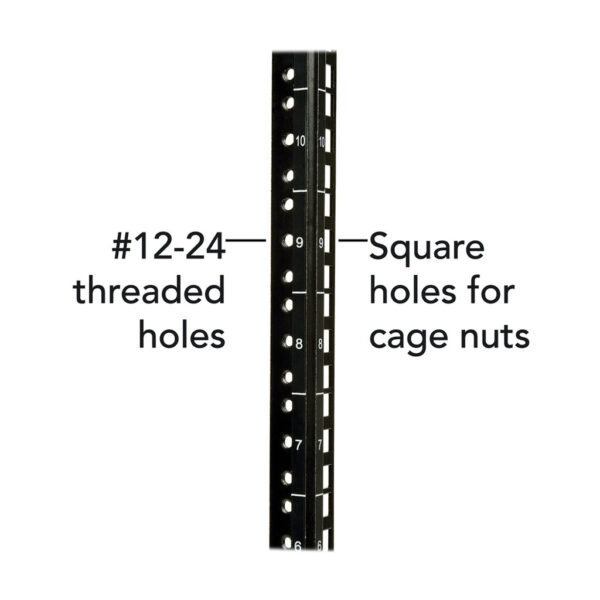

  • Rails support square-hole or 12-24 threaded-hole mounting
  • Rack spaces numbered for easy reference

Meets Payment Card Industry Standards

  • Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

Package Includes

  • SRW10USG SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet

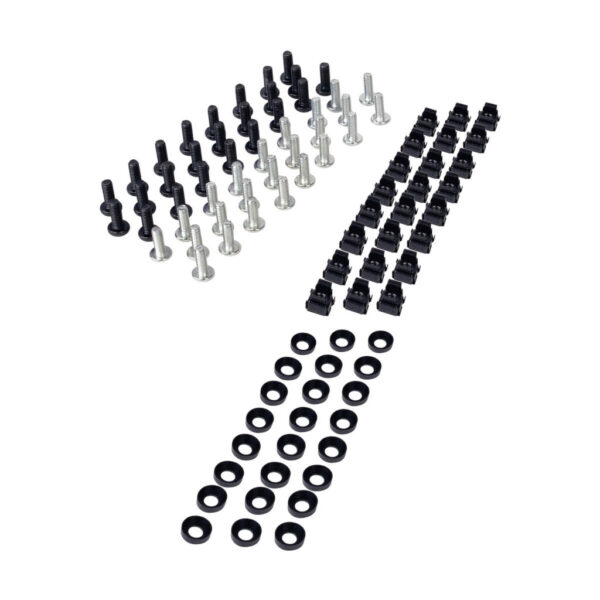

  • (24) M6 screws
  • (24) M6 cage nuts
  • (24) M6 washers
  • (24) 12-24 screws
  • (2) Keys
  • Owner’s manual
Weight 59 lbs
Dimensions 24.13 × 26.38 × 24.25 in
UPC Code

037332187345
Weight Capacity (kg)

200.62
Max Device Depth (cm)

20.5
Rack Depth

10.43
Brand

Device Compatibility

Patch Panel; Network Switch; UPS
Rack Type

Small Enclosure
Color

Black
Rack Height

10U
Factory Preset Rack Depth (cm)

26.5
Factory Preset Rack Depth (mm)

265
Maximum Device Depth (cm)

52.07
Maximum Device Depth (mm)

521
Minimum Device Depth (cm)

7.62
Minimum Device Depth (mm)

76
Shipping Dimensions (hwd / cm)

61.60 x 67.01 x 61.29
Shipping Weight (kg)

26.76
Unit Dimensions (hwd / cm)

54.77 x 60.02 x 59.94
Unit Weight (kg)

24.22
Weight Capacity - Stationary (kg)

91
Number of Vertical Mounting Rails

4
Grounding Details

Front and Back door frames
Product Compliance

RoHS; EIA/ECA-310-E
Product Warranty Period (Worldwide)

5-year limited warranty
Rack Depth Category

Shallow
