The TLM626 surge suppressor offers complete AC surge suppression for comprehensive protection of workstations, personal computers, home stereos, televisions, VCRs, DVD players and other sensitive electronics. Heavy-grade AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLM626 offers six right-angle outlets, a six-foot (1.8 meters) power cord and diagnostic LEDs to warn of wiring problems and suppressor damage. AC surge suppression rated at 1340 joules shields equipment from surges and line noise. Rugged metal housing with two designated transformer plug outlets offers convenient protection of desktop computer equipment and accessories.
Features
6 right-angle outlets
6-ft. (1.83 m) cord
Surge suppression rating: 1340 joules
EMI/RFI noise filtering
15 amp resettable circuit breaker protects against overload
Diagnostic LEDs confirm suppressor “protection present” (green) and “grounded” (red) status

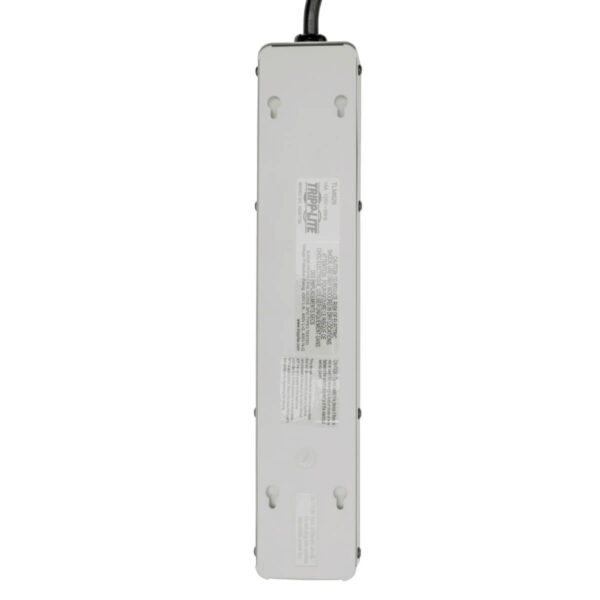

Convenient keyhole slots allow secure mounting on wall or desk
Can accommodate up to 2 transformers without blocking adjacent outlets
Rugged metal case provides extra safety and durability
Illuminated power switch
$75,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Chromebook; Computer; Laptop; Monitor/HDTV; Phone; Projector; Tablet; Video Game System
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
120V (110-125V)
Input Cord Gauge Type
14 gauge; SJT
Input Cord Gauge (AWG)
14
Voltage Compatibility (VAC)
120
Maximum Surge Amps
60000
Input Plug Type
NEMA 5-15P
Input Cord Details
SJT
Right-Angle Plug
Yes
Input Cord Length (m)
1.83
Frequency Compatibility
50 / 60 Hz
Output (Watts)
1800
Output Receptacles
(6) 5-15R
Circuit Breaker (amps)
15
Overload Protection
15A resettable combo switch / circuit breaker
Transformer Accommodation
(4) Yes
Outlet Orientation
Single row of outlets
Right-Angle Outlets
Yes
Diagnostic LED(s)
Yes
Switches
Combination AC circuit breaker and 2 position on/off power switch
Diagnostic LED Details
Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
AC Suppression Joule Rating
1340
AC Suppression Response Time
< 1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
UL1449 Let Through Rating
400V
EMI / RFI Filtering
Up to 20 dB
Automatic Shut-Off
Yes
Network (Ethernet) Protection
No
Color
Light Gray
Material of Construction
Metal
Power Cord Color
Black
Form Factors Supported
Supports floor / wall / desktop placement
Housing Color
Light Gray
Mounting Holes or Slots
Yes
Slot or Hole Mount Measurement (Center to Center)
225 mm
Outlets Measurement (Center to Center)
Distance between standard outlets = 30.40mm; Distance between transformer and standard outlets = 45mm
Receptacle Color
Light gray
Shipping Dimensions (hwd / cm)
30.48 x 11.68 x 6.35
Shipping Weight (kg)
0.73
Unit Dimensions (hwd / cm)
3.8 x 31.1 x 5.7
Unit Weight (kg)
0.82
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
5° to 104°F (-15° to 40°C)
Operating Humidity Range
20% to 85% RH
Storage Humidity Range
0% to 90% RH
Product Certifications
cUL Listed; UL 1449; UL 1363; UL Listed
Product Compliance
RoHS
Product Warranty Period (Worldwide)
Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
$75,000 Ultimate Lifetime Insurance
