Tripp Lite series Protect It! 6-Outlet Surge Protector, 4 ft. (1.22 m) Cord, 900 Joules, Diagnostic LED, Light Gray Housing

$20.47

Brand: Tripp Lite
Part Number (MPN): TLP604
UPC / GTIN: 037332100498
Datasheet: PDF

Tripp Lite series Protect It! 6-Outlet Surge Protector, 4 ft. (1.22 m) Cord, 900 Joules, Diagnostic LED, Light Gray Housing

Toronto Stock: 168 available
Manufacturer Warehouse: 11,843 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • 6 NEMA 5-15R outlets—one designed for a bulky transformer
  • 900-joule surge protection rating
  • Filters out threatening EMI/RFI line noise
  • 15A resettable circuit breaker prevents dangerous overloads
  • 4 ft. AC power cord with NEMA 5-15P plug

Features

900-Joule Surge Protection for Home or Office Electronics

  • Protects your computer, printer, scanner, router, modem and other small home electronics against even the strongest surges and spikes
  • Recommended for any desktop, network or home electronics application requiring AC line protection
  • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
  • Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
  • Exceeds IEEE 587 Category A and B surge suppression specifications

6 Outlets Accept Wide Range of Electronic Devices

  • 6 NEMA 5-15R AC outlets accept most computers and peripherals

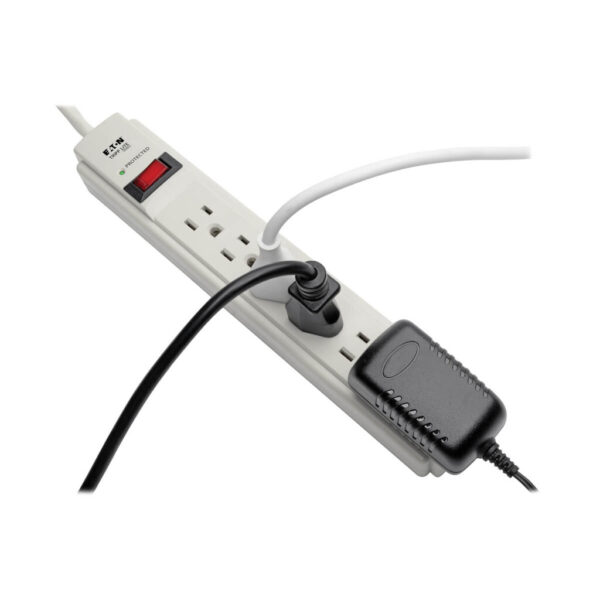

  • Special end outlet designed for bulky transformers without blocking other outlets

Premium Safety Features

  • Lighted on/off switch provides one-touch control over connected equipment
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
  • Diagnostic LED confirms protection status at a glance
  • Conforms to current UL 1449 3rd Edition safety standards
  • ABS fire retardant plastic case provides extra safety and durability

Fits Effortlessly Into Your Workstation

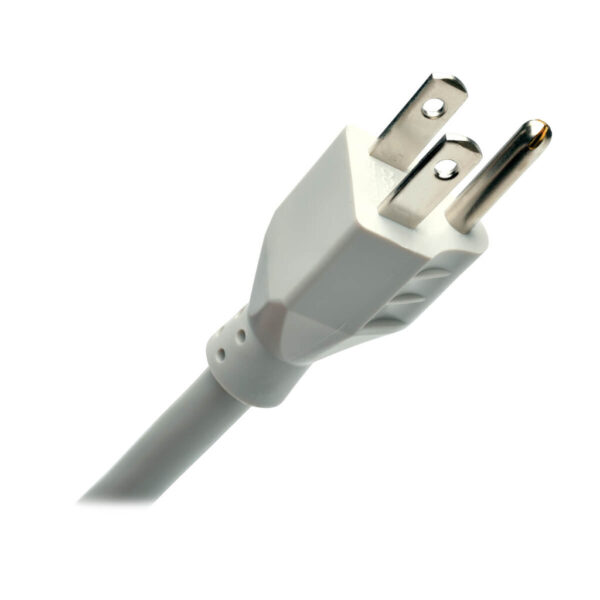

  • 4 ft. AC power cord with NEMA 5-15P plug reaches nearby outlets

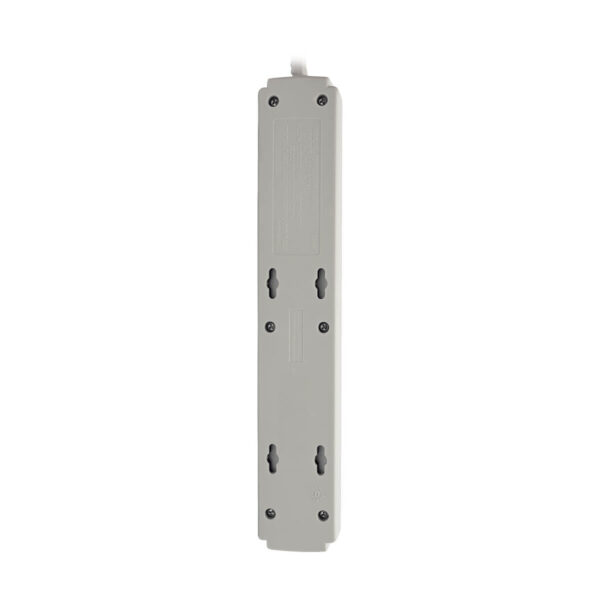

  • Keyhole slots on bottom panel provide convenient wall or desk mounting options

Backed by Ultimate Lifetime Insurance

  • $20,000 Ultimate Lifetime Insurance covers any connected components damaged by power surge (U.S., Canada and Puerto Rico only)

Package Includes

  • TLP604 Protect It! 6-Outlet Surge Protector, Light Gray Housing
  • Owner’s manual
Weight 1 lbs
Dimensions 4.9 × 1.6 × 12.6 in
UPC Code

037332100498

Cord Length

4

Output (W)

1800

Joule Rating

900

Brand

Nominal Input Voltage(s) Supported

120V AC

Input Cord Gauge Type

14 gauge; SJT

Input Cord Gauge (AWG)

14

Voltage Compatibility (VAC)

120

Maximum Surge Amps

36000

Input Plug Type

NEMA 5-15P

Input Cord Details

SJT

Right-Angle Plug

No

Input Cord Length (m)

1.22

Frequency Compatibility

50 / 60 Hz

Output (Watts)

1800

Output Receptacles

(6) 5-15R

Circuit Breaker (amps)

15

Transformer Accommodation

(2) Yes

Outlet Orientation

Single row

Diagnostic LED(s)

Yes

Switches

Combination AC circuit breaker and 2 position on/off power switch

Diagnostic LED Details

Built-in LED confirms suppressor "protection present" (green) status

AC Suppression Joule Rating

900

AC Suppression Response Time

< 1 ns

Protection Modes

Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

UL1449 Let Through Rating

500V

EMI / RFI Filtering

Yes

Automatic Shut-Off

Yes

Network (Ethernet) Protection

No

Material of Construction

Plastic

Power Cord Color

Light Gray

Housing Color

Light Gray

Mounting Holes or Slots

Yes

Slot or Hole Mount Measurement (Center to Center)

Distance between slots = 101 mm; Distance between slot height = 28 mm

Outlets Measurement (Center to Center)

28.5mm

Receptacle Color

Gray

Shipping Dimensions (hwd / cm)

32.00 x 4.06 x 12.45

Shipping Weight (kg)

0.45

Unit Dimensions (hwd / cm)

27.43 x 4.70 x 3.12

Unit Weight (kg)

0.36

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

5° to 104°F (-15° to 40°C)

Operating Humidity Range

20% to 85% RH

Storage Humidity Range

0% to 90% RH

Product Certifications

CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 1363; UL Listed

Product Compliance

RoHS

Product Warranty Period (Worldwide)

Lifetime limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$20,000 Ultimate Lifetime Insurance
