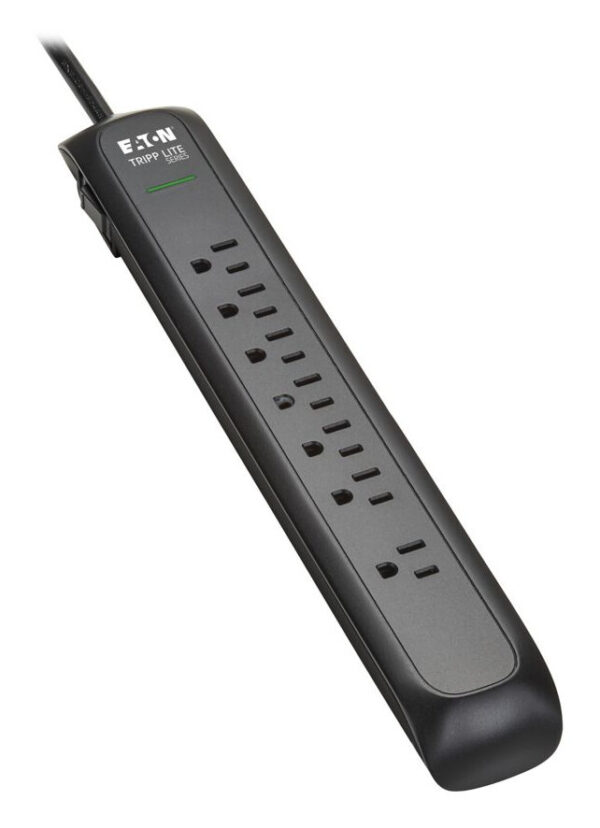

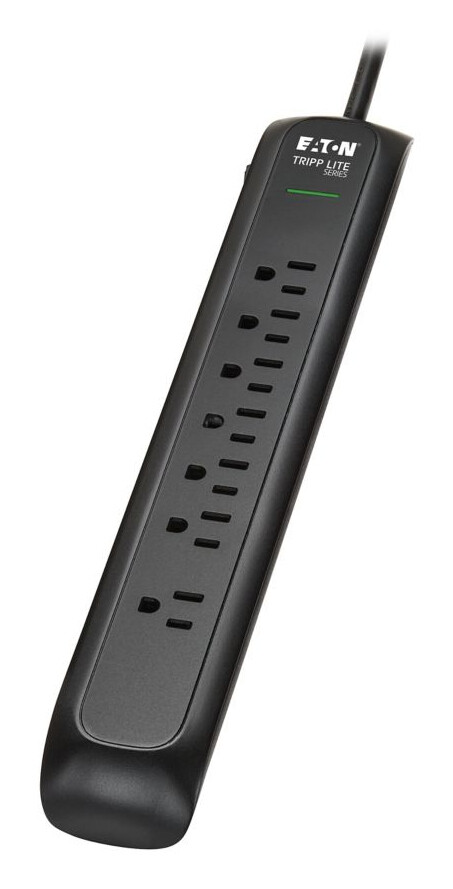

Tripp Lite series Protect It! 7-Outlet Surge Protector – 5-15R Outlets, 1500 Joules, 6 ft. (1.8 m) Cord, Black

$18.51

Brand: Tripp Lite
Part Number (MPN): TLP76B
UPC / GTIN: 037332294029
Datasheet: PDF

Tripp Lite series Protect It! 7-Outlet Surge Protector – 5-15R Outlets, 1500 Joules, 6 ft. (1.8 m) Cord, Black

Toronto Stock: 25 available
Manufacturer Warehouse: 7,308 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • 7 NEMA 5-15R outlets distribute AC power to connected home/office/work equipment
  • 1500 joules protect your valuable electronics against dangerous surges and spikes
  • 6 ft. input cord with NEMA 5-15P plug connects to compatible AC wall outlet
  • On/off switch with circuit breaker allows one-touch control over connected equipment

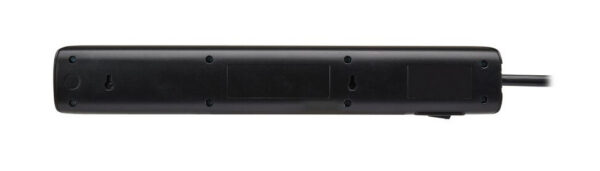

  • Rear keyhole slots allow optional wall or desk mounting for convenient access

Features

7-Outlet Surge Protector Safeguards Your Sensitive Electronics
Ideal for your home, office or retail workstation, this Protect It!® surge protector features a surge protection rating of 1500 joules to defend your valuable electronic components against power surges and spikes. Because residential power outlets have three wires—hot line (H), neutral (N) and ground (G)—the TLP76B protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

NEMA 5-15R Outlets Accept a Wide Range of Electronic Devices

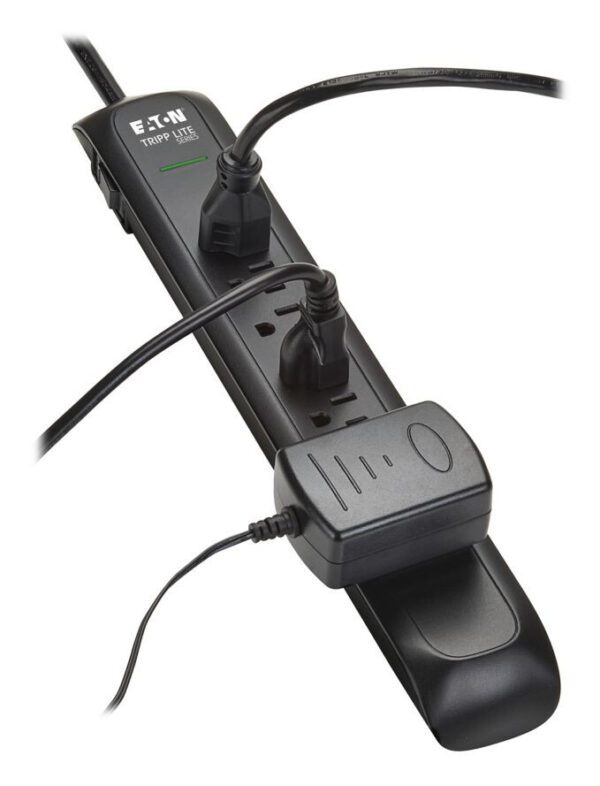

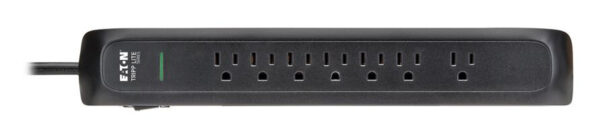

Plug your computer, printer, router, desk lamp or other home/office electronics into seven NEMA 5-15R outlets to protect them against dangerous surges, spikes and line noise. One outlet is placed at the end of the TLP76B to allow connection of a bulky transformer without blocking adjacent outlets.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This surge protector filters out disruptive EMI (electromagnetic interference) and RFI (radio frequency interference) line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Safety Features Help Maintain Your Equipment’s Well-Being

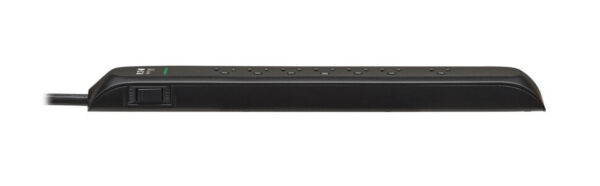

A side-mounted on/off switch allows easy one-touch control over all equipment connected to the TLP76B. An integrated 15A resettable circuit breaker helps prevent equipment damage by cutting power to outlets if the protection circuit is incapacitated. A diagnostic LED lets you know that your equipment is protected. The ABS plastic housing is fire-retardant to provide extra safety and durability.

Flexible Installation Options

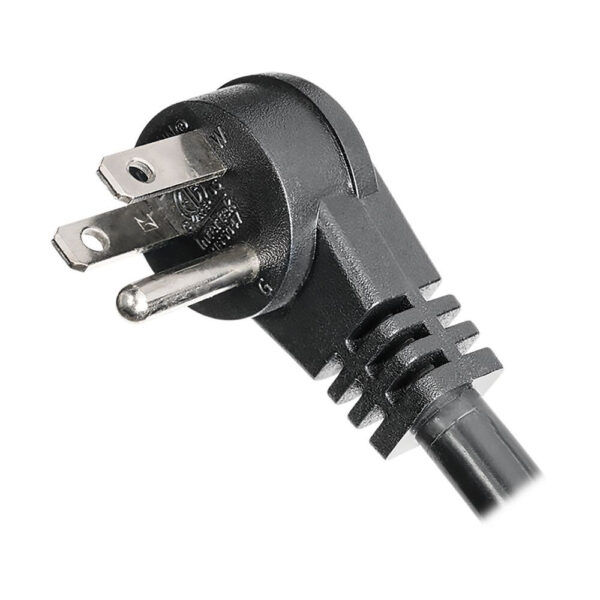

Place the TLP76B on any flat surface in your home, office, workbench or anywhere else you need power for your equipment. Integrated rear keyhole slots accommodate wall or desktop mounting. The six-foot (1.8-meter) power cord with NEMA 5-15P right-angle plug reaches a nearby outlet to fit easily into your workstation or home theater setup.

Package Includes

  • TLP76B 7-Outlet Surge Protector
  • Owner’s manual
Weight 1.2 lbs
Dimensions 15.16 × 4.9 × 1.6 in
UPC Code

037332294029

Cord Length

6

Output (W)

1800

Joule Rating

1500

Brand

Product Type

Surge Protector

Nominal Input Voltage(s) Supported

120V AC

Input Cord Gauge Type

14 gauge; SJT

Input Cord Gauge (AWG)

14

Voltage Compatibility (VAC)

120

Input Plug Type

NEMA 5-15P

Input Cord Details

SJT

Right-Angle Plug

No

Input Cord Length (m)

1.83

Frequency Compatibility

50 / 60 Hz

Output (Watts)

1800

Output Receptacles

(6) 5-15R

Circuit Breaker (amps)

15

Overload Protection

15A resettable illuminated combo switch / circuit breaker

Transformer Accommodation

(1) Yes

Outlet Orientation

Single row of 7 outlets

Diagnostic LED(s)

Yes

Switches

Combination AC circuit breaker and 2 position red illuminated on/off power switch

Diagnostic LED Details

Built-in LED confirms suppressor "protection present" (green) status

AC Suppression Joule Rating

1500

AC Suppression Response Time

< 1 ns

Protection Modes

Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

UL1449 Let Through Rating

500V

EMI / RFI Filtering

Yes

Automatic Shut-Off

Yes

Network (Ethernet) Protection

No

Material of Construction

Plastic

Power Cord Color

Black

Housing Color

Black

Mounting Holes or Slots

Yes

Receptacle Color

Gray

Shipping Dimensions (hwd / cm)

4.06 x 12.45 x 38.51

Shipping Weight (kg)

0.54

Unit Dimensions (hwd / cm)

1.18 x 2.17 x 13.9

Unit Weight (kg)

0.46

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

5° to 104°F (-15° to 40°C)

Operating Humidity Range

20% to 85% RH

Storage Humidity Range

0% to 90% RH

Product Certifications

CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); UL 1363; UL 1449

Product Warranty Period (Worldwide)

Lifetime limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$25,000 Ultimate Lifetime Insurance
