Tripp Lite series Eco-Surge 7-Outlet Surge Protector, 6 ft. (1.83 m) Cord, 1080 Joules, Individually-Controlled

$51.41

Brand: Tripp Lite
Part Number (MPN): TLP76MSG
UPC / GTIN: 037332166074
Datasheet: PDF

Tripp Lite series Eco-Surge 7-Outlet Surge Protector, 6 ft. (1.83 m) Cord, 1080 Joules, Individually-Controlled

Toronto Stock: 6 available
Manufacturer Warehouse: 379 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Individual outlet control
  • 1080 joules

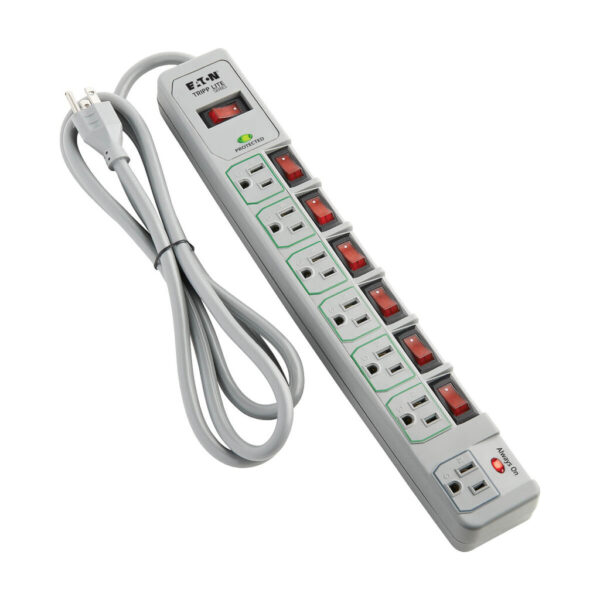

  • 7 outlet / 6-ft cord
  • Diagnostic LEDs

Overview

The TLP76MSG offers reliable green surge technology that protects your computer and peripherals, as well as the environment and your wallet. Energy-saving outlet configuration reduces energy waste (phantom loads) by cutting AC power to unused peripherals. The TLP76MSG has one always-on outlet for those peripherals that need constant power like a fax machine, DVR or router. It also offer convenient individual outlet switches that allow users to select which device is turned on and off. The TLP76MSG has seven total outlets, a six-foot (1.8-meter) power cord and diagnostic LEDs to warn of wiring problems and suppressor damage. Network-grade AC suppression rated at 1080 joules shields equipment from surges and line noise. Designed with an attractive cool gray suppressor housing, the TLP76MSG can accommodate up to four transformer plug outlets offering convenient protection of desktop computer equipment and accessories.

Features

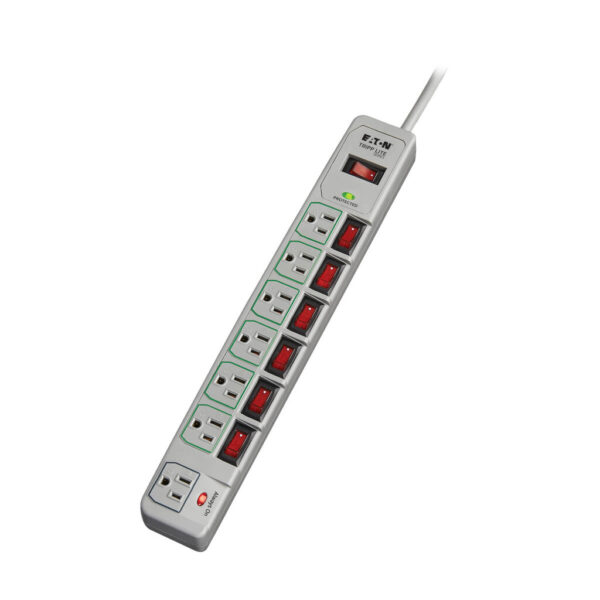

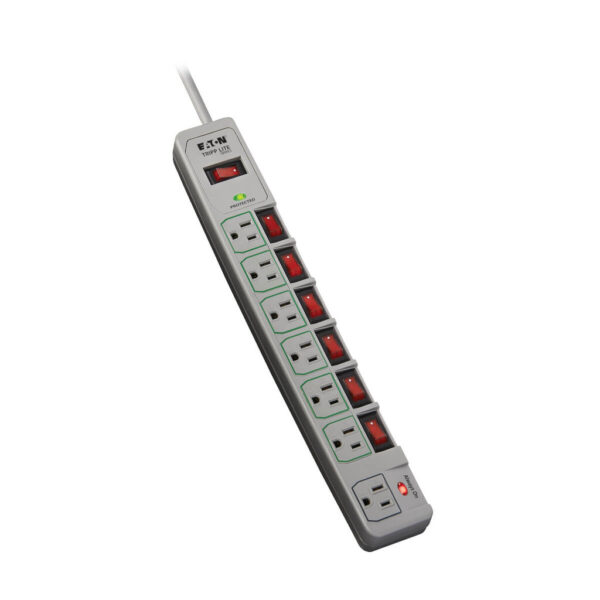

  • Energy-saving green outlets allow individual outlet control using illuminated power switches for cutting power to peripherals not in use.

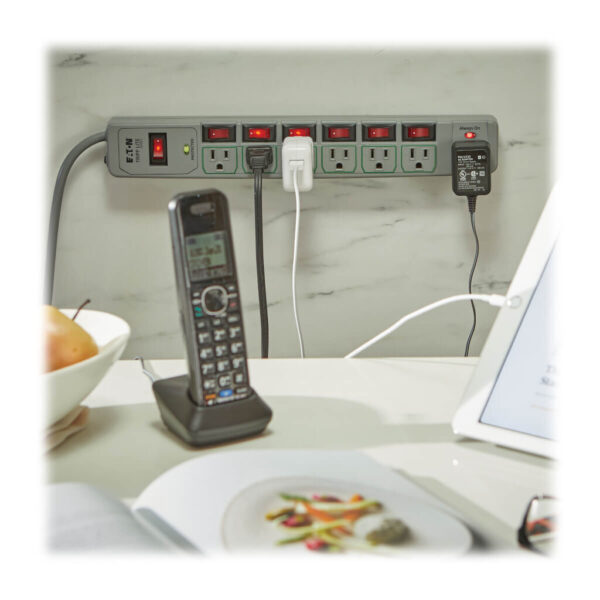

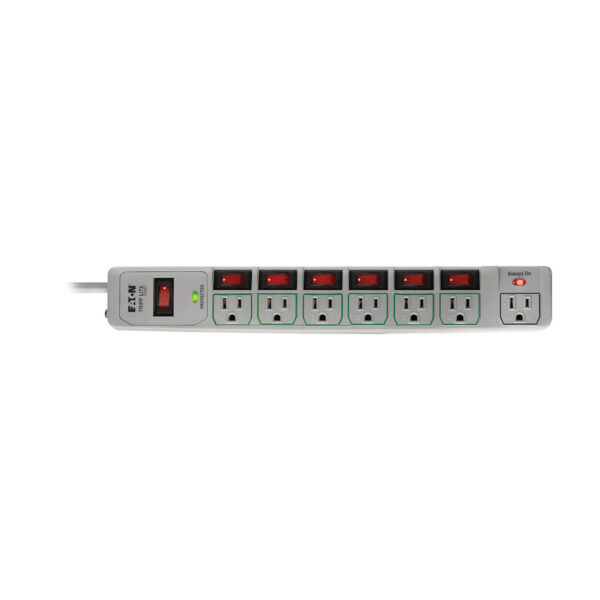

  • Six green outlets have their own illuminated ON/OFF switch for cutting power to peripherals when they are not in use. One “Always On” outlet provides continuous power for devices such as DVRs (TiVo), cable and satellite boxes, modems, routers and fax machines.
  • In addition to the individual illuminated outlet switches, an illuminated Master Switch controls power to all outlets (except the Always On outlet) at once. It can override other “ON” settings to cut power to all switched outlets at once.
  • Protected (Green) LED assures protection is present & Always On (Red) LED indicates that the Always On outlet is receiving power.
  • 1080 joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans).
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required

Package Includes

  • TLP76MSG ECO-SURGE Home/Business Theater Surge Suppressor
  • Instruction manual with warranty information
Weight 1.8 lbs
Dimensions 17 × 4.2 × 2 in
UPC Code

037332166074

Cord Length

6

Output (W)

1800

Output VA

120

Joule Rating

1080

Brand

Nominal Input Voltage(s) Supported

120V AC

Input Cord Gauge Type

14 gauge; SJT

Input Cord Gauge (AWG)

14

Voltage Compatibility (VAC)

120

Maximum Surge Amps

72000

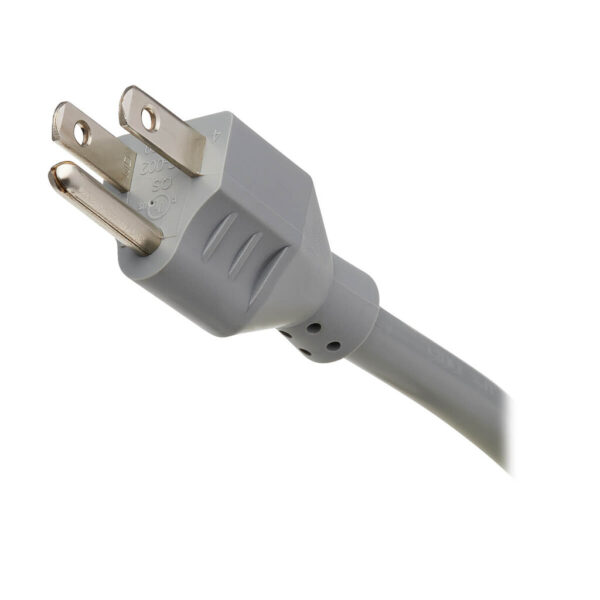

Input Plug Type

NEMA 5-15P

Input Cord Details

SJT

Right-Angle Plug

No

Input Cord Length (m)

1.83

Frequency Compatibility

60 Hz

Output (Watts)

1800

Output Receptacles

(7) 5-15R

Transformer Accommodation

(4) Yes

Right-Angle Outlets

Yes

Individually Controllable Load Banks

Yes

Diagnostic LED(s)

Yes

Switches

1 x Lighted Master Switch & 6 x Lighted Receptacle Switches

LED Indicators

Protected (Green)" & Always On Receptacle (Red)

AC Suppression Joule Rating

1080

AC Suppression Response Time

< 1 ns

Protection Modes

Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

UL1449 Let Through Rating

400V

EMI / RFI Filtering

Up to 40 dB

Automatic Shut-Off

Yes

Network (Ethernet) Protection

No

Material of Construction

Plastic

Power Cord Color

Gray

Housing Color

Gray

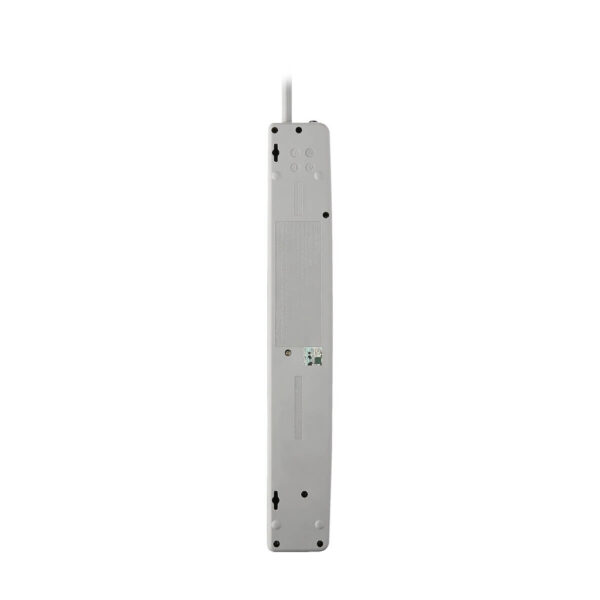

Mounting Holes or Slots

No

Slot or Hole Mount Measurement (Center to Center)

300 mm

Receptacle Color

Gray

Shipping Dimensions (hwd / cm)

5.08 x 10.67 x 43.18

Shipping Weight (kg)

0.82

Unit Dimensions (hwd / cm)

3.56 x 8.64 x 38.1

Unit Weight (kg)

0.70

Input Cord Color

Gray

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

14° to 122°F (-10° to 50°C)

Operating Humidity Range

10% to 90% RH

Storage Humidity Range

5% to 95% RH

Product Certifications

CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed

Product Compliance

RoHS

Product Warranty Period (Worldwide)

Lifetime limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$25,000 Ultimate Lifetime Insurance
