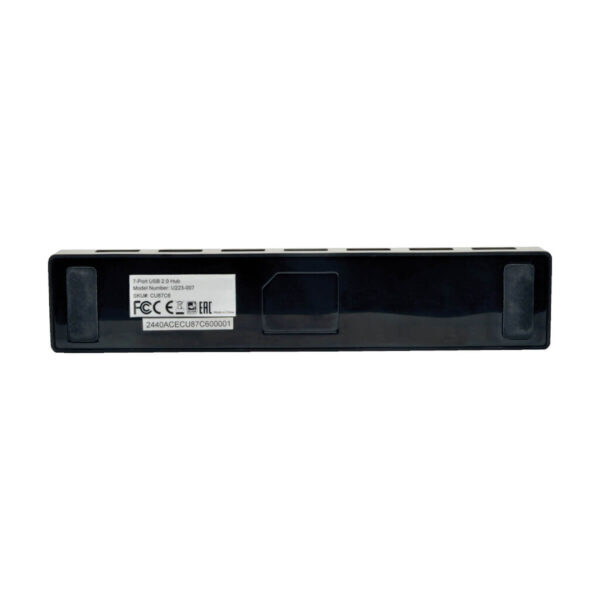

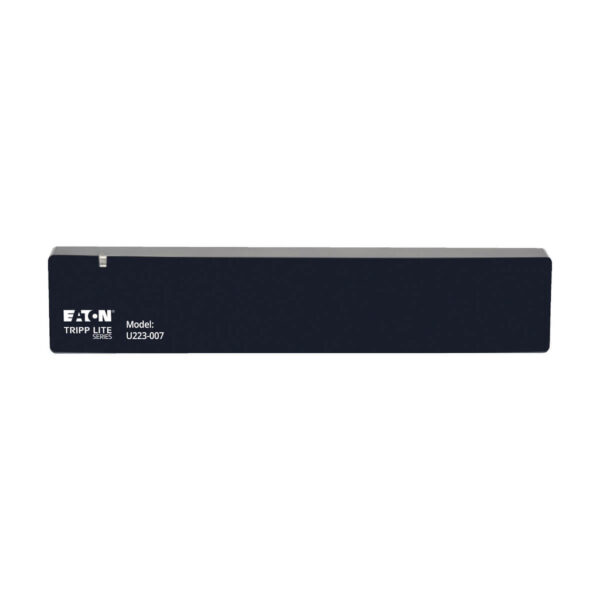

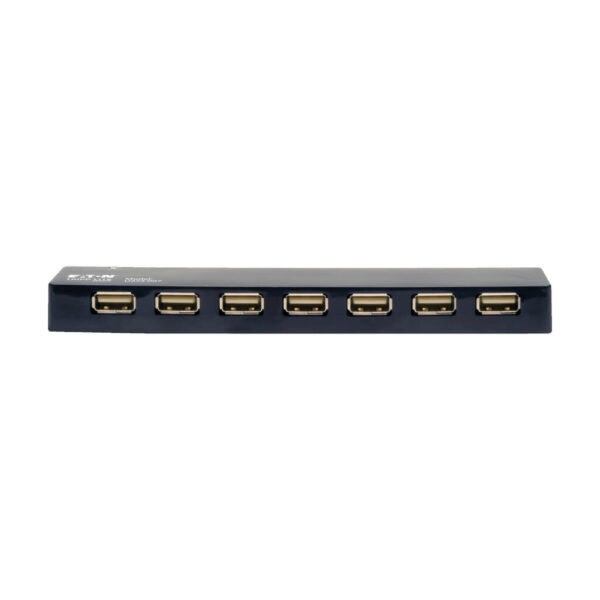

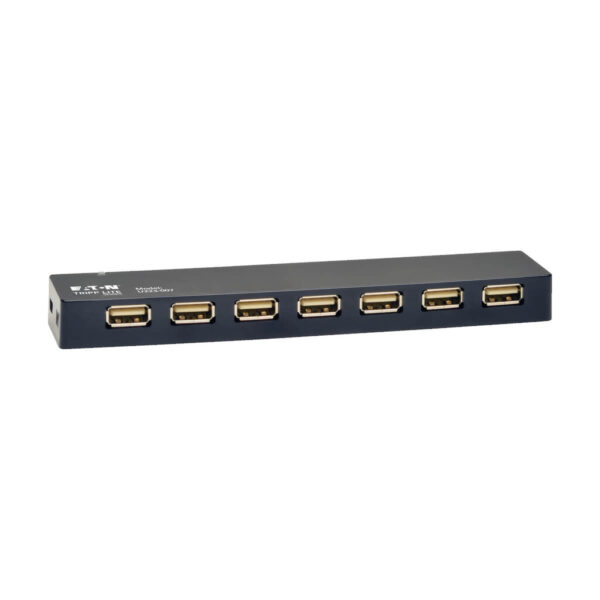

Tripp Lite series 7-Port USB 2.0 Hub with Power Supply
$35.46
Tripp Lite series 7-Port USB 2.0 Hub with Power Supply
Manufacturer Warehouse: 253 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Supports USB 2.0 speeds up to 480 Mbps to ensure reliable data transfers
- Bus-powered hub includes optional external power supply for extra power
- Blue LED indicates the hub is receiving power from the included supply
- Compatible with all major operating systems, including Windows and macOS
- Plug-and-play operation with no software required for easy, immediate installation
Features
USB 2.0 Hub Adds up to 7 USB Devices to Your Computer or Laptop
This USB hub with a sturdy plastic housing connects seven USB devices, such as external hard drives, printers, keyboards/mice, MP3 players and barcode scanners, to your PC, laptop or other device with a USB-A port. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices. It provides easy-to-access USB ports to computers stored in cabinets, behind furniture or other hard-to-reach locations.
Plug-and-Play Hub Is Easy to Connect
The bus-powered U223-007 requires no software to download and install. It connects to a host computer with the included USB cable and shares 500mA among all seven USB ports for charging mobile devices. When connected to the included (optional) external power supply, the hub shares 2A of charging power up to 500mA per port. A blue LED indicates the unit is receiving power. Each port protects its connected USB peripheral against overvoltages.
System Requirements
- Computer or other host device with USB-A port
- Compatible with all major operating systems, including Windows and macOS

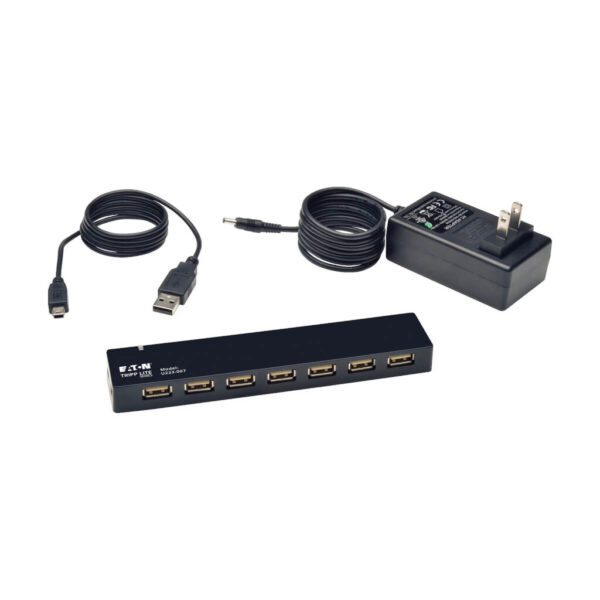

Package Includes
- U223-007 7-Port USB 2.0 Hub
- USB Mini-B to USB-A cable (M/M)
- External power supply (Input: 100-240V, 50/60 Hz, 0.4A; Output: 5V 2A) with 4 ft. (1.2 m) cord and NEMA 1-15P plug
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 3.15 × 7.48 × 2.17 in |
| UPC Code | 037332185389 |
| Cord Length | 3.94 |
| Number of Ports | 7 |
| Brand | |
| Product Type | Hub |
| Technology | USB 2.0 (High Speed) |
| Host Connector | USB A (MALE) |
| Extended Mode | No |
| Mirror Mode | No |
| Data Ports | (7) USB A (FEMALE) |
| Data Ports Details | (7) USB-A – USB 2.0 |
| AC Power Adapter Plug(s) | NEMA 1-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.4A |
| AC Power Adapter Output Specs (V / A) | 5V / 2A |
| AC Power Adapter Cord Length (ft.) | 4 |
| AC Power Adapter Cord Length (m) | 1.2 |
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
| Product Length (in.) | 6.53 |
| Product Length (cm.) | 16.6 |
| Product Length (ft.) | 0.544 |
| Product Length (m) | 0.166 |
| Power Source Type | AC Adapter |
| DC Barrel Plug | OD: 3.5 x 1.35 x 8mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 0.3 |

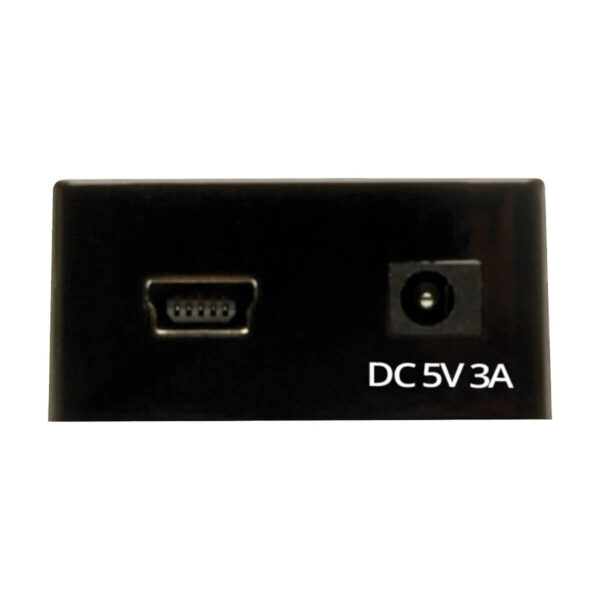

| Side A - Connector 1 | USB MINI-B 5-PIN (FEMALE) |
| Side B - Connector 1 | (7) USB A (FEMALE) |
| Connector Plating | Nickel |
| LED Indicators | Blue (Power) |
| Color | Black |
| Material of Construction | ABS |
| Unit Dimensions (hwd / cm) | 16.6 x 3.33 x 1.6 |
| Unit Packaging Type | Box |
| Unit Weight (kg) | 0.06 |
| Operating Temperature Range | 32° to 158°F (0° to 70°C) |
| Storage Temperature Range | 14° to 194°F (-10° to 90°C) |
| Relative Humidity | 10% to 90 % RH, Non-Condensing |
| BTUs | 1 BTU/Hr |
| Power Provided to Connected Device(s) | 5V 0.5A (2.5W) Output per USB Port |
| USB Hub Ports | Yes |
| Number of USB Hub Ports | 7 |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Driver Required | No |
| TAA Compliant Option | N |
| External Power Supply Certifications | DOE; FCC; UL |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
