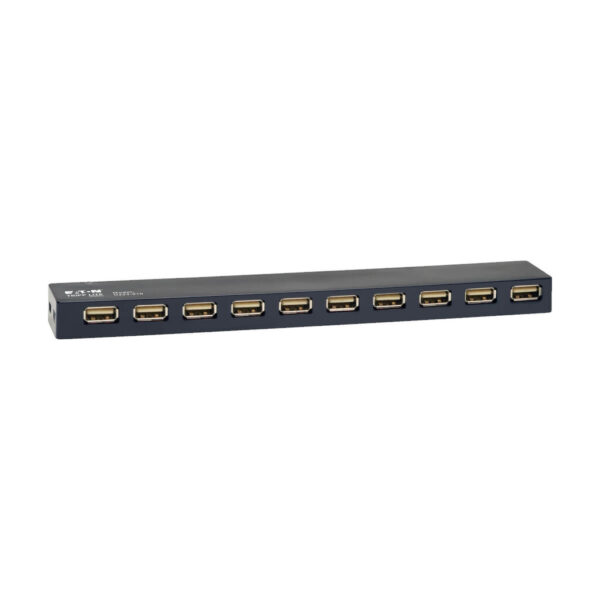

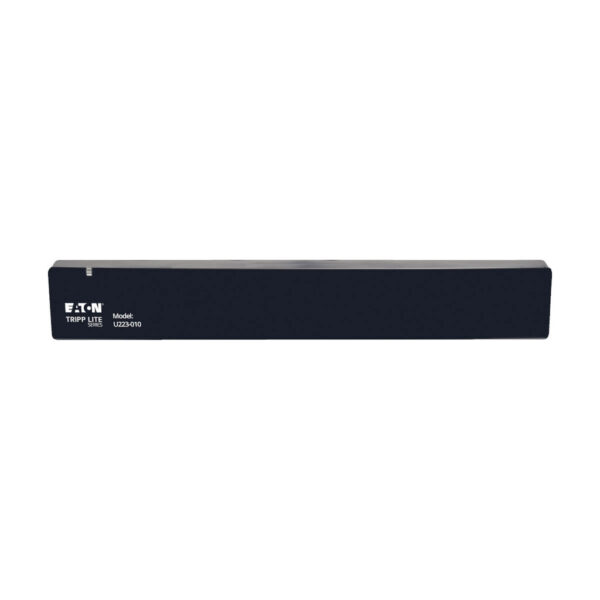

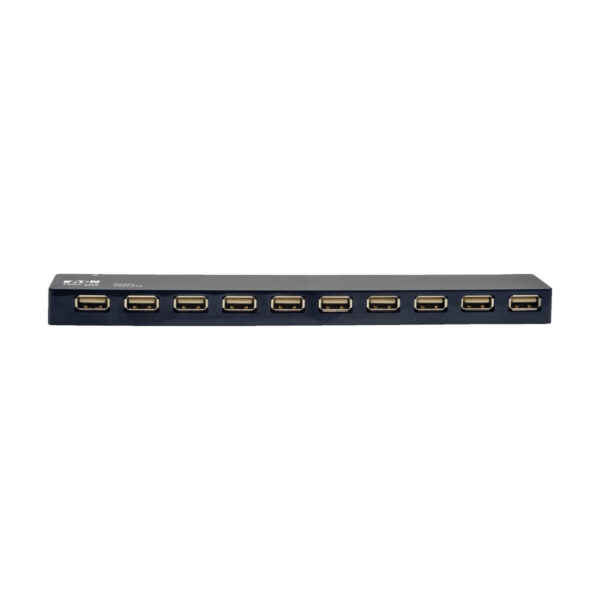

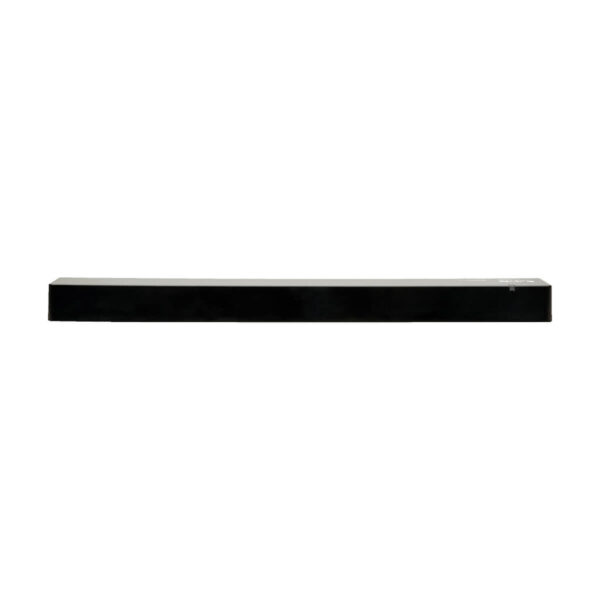

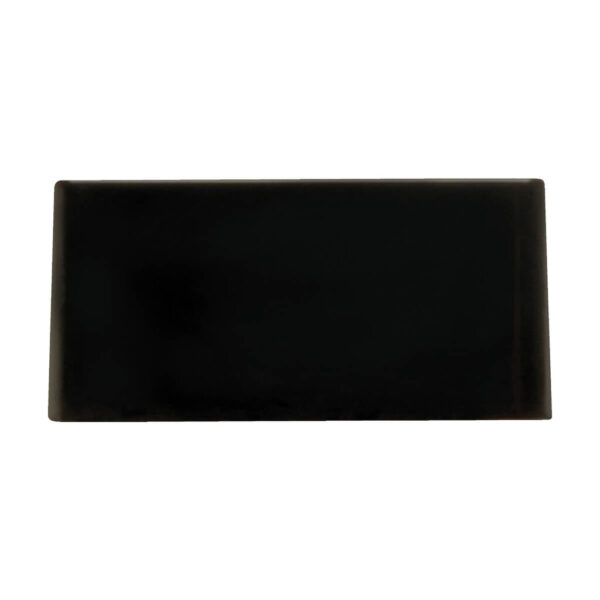

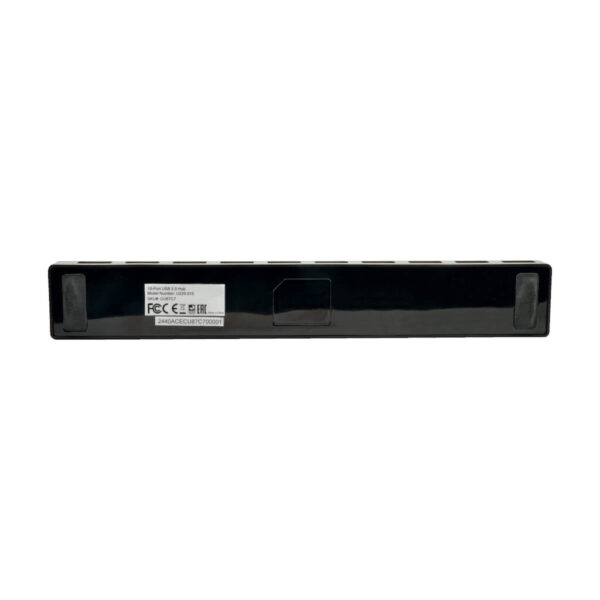

Tripp Lite series 10-Port USB 2.0 Hub, Black

Name: Tripp Lite series 10-Port USB 2.0 Hub, Black
Brand: Tripp Lite
SKU: U223-010
Price: 48.12 CAD
Availability: InStock

$48.12

Brand: Tripp Lite

Part Number (MPN): U223-010

UPC / GTIN: 037332185396

Datasheet: PDF

Tripp Lite series 10-Port USB 2.0 Hub, Black

Toronto Stock: 28 available

Manufacturer Warehouse: 87 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Connects up to 10 USB 2.0 devices
Bus powered or optional AC adapter
Compatible with all major operating systems

Overview

The U223-010 10-port USB 2.0 hub allows you to connect up to ten USB devices to a single USB port on your computer. This unit meets or exceeds USB 2.0 specifications for data transmission rates up to 480 Mbps. While the hub will function in virtually all cases without needing external power, a compact, multi-voltage AC adapter (100-240V) has been provided for the rare circumstance when connecting a power-hungry device. This device is backwards compatible with both USB 2.0 and USB 1.1 devices. Over-current protection safeguards connected equipment from over voltages.

Features

USB 2.0 10-Port Hub
Supports data transfer rates up to 480Mbps
Connect up to 10 USB devices to a single USB port on your computer
Compact design is ideal for use with a laptop/notebook computer
Does not require external power, software, or complicated set-up procedures
Plug-and-play/hot-swappable allows you to add or remove a device at any time
Per-port overcurrent protection
Bus-powered or self-powered
Supports USB 2.0 spec up to 500mA per port
On bus-power, 500mA from the USB 2.0 computer port is shared between the hub ports
The included external power supply provides 4A of power, to be shared between the hub ports (up to 500mA per port)
Compact, multi-voltage power supply (100-240V) provided
Compatible with all major operating systems

System Requirements

USB 2.0 Computer Port
USB Peripherals

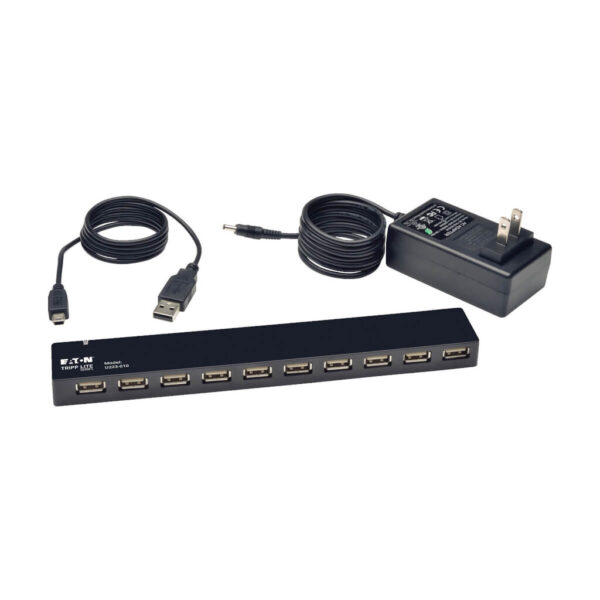

Package Includes

U223-010 USB 2.0 Hub
User’s Manual
USB 2.0 Mini B male to USB 2.0 A male cable
External Power Supply with NEMA 1-15P Plug (Input: AC100-240V, 50/60Hz, 1.5A; Output: 5V, 4A)

Weight	0.55 lbs
Dimensions	3.2 × 9.1 × 2.2 in
UPC Code	037332185396
Cord Length	3.94
Number of Ports	10
Brand	Tripp Lite
Product Type	Hub
Technology	USB 2.0 (High Speed)
Host Connector	USB A (MALE)
Extended Mode	No
Mirror Mode	No
Data Ports	(10) USB A (FEMALE)
Data Ports Details	(10) USB-A – USB 2.0
AC Power Adapter Plug(s)	NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 0.9A
AC Power Adapter Output Specs (V / A)	5V / 4A
AC Power Adapter Cord Length (ft.)	4
AC Power Adapter Cord Length (m)	1.2
Voltage Compatibility (VAC)	100; 110; 120; 127; 200; 208; 220; 230; 240
Product Length (in.)	8.6
Product Length (cm.)	21.84
Product Length (ft.)	0.72
Product Length (m)	0.22
Power Source Type	AC Adapter

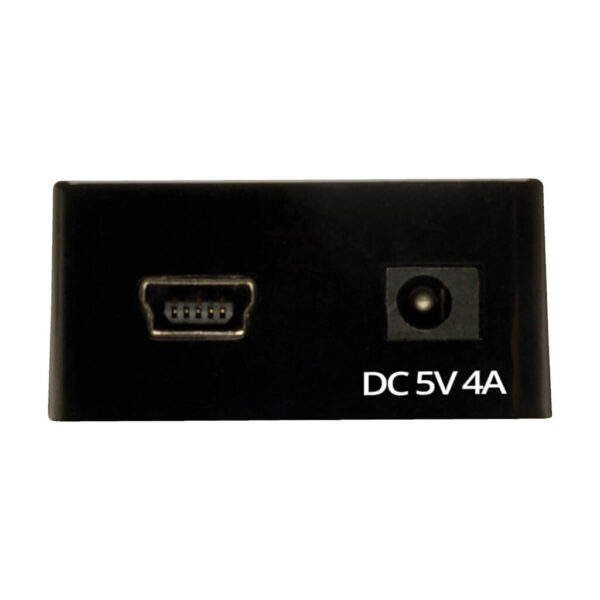

DC Barrel Plug	OD: 3.5 x 1.35 x 8mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)	0.55
Side A - Connector 1	USB A (FEMALE)
Side B - Connector 1	(10) USB A (FEMALE)
Connector Plating	Nickel
LED Indicators	Blue (Power)
Color	Black
Material of Construction	ABS
Unit Dimensions (hwd / cm)	21.84 x 1.52 x 3.3
Unit Packaging Type	Box
Unit Weight (kg)	0.09
Operating Temperature Range	32° to 158°F (0° to 70°C)
Storage Temperature Range	14° to 194°F (-10° to 90°C)
Relative Humidity	10% to 90 % RH, Non-Condensing
BTUs	1.9 BTU/Hr
Power Provided to Connected Device(s)	5V 0.5A (2.5W) Output per USB Port
USB Hub Ports	Yes
Number of USB Hub Ports	10
USB Specification	USB 2.0 (up to 480 Mbps)
Driver Required	No
TAA Compliant Option	N
External Power Supply Certifications	DOE; FCC; UL
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)	3-year limited warranty
