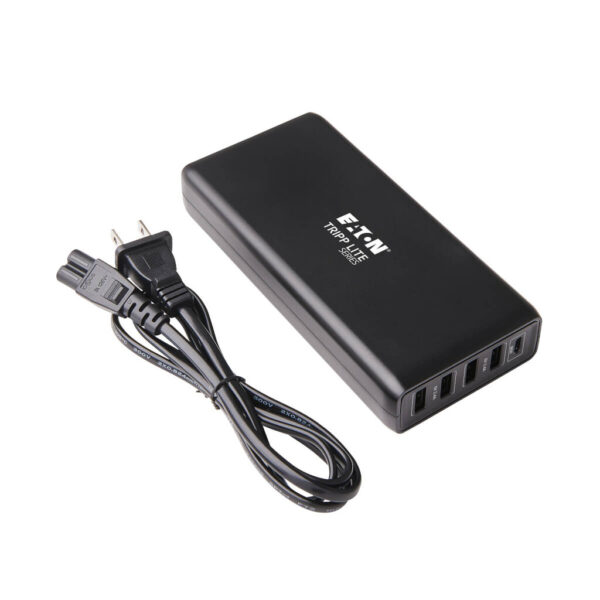

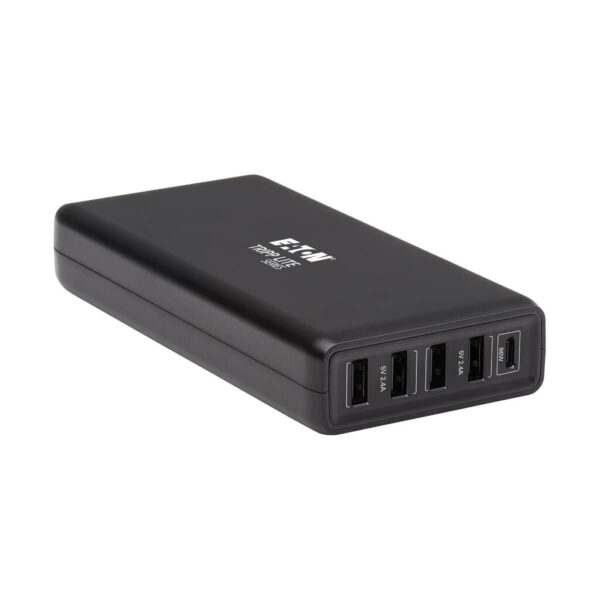

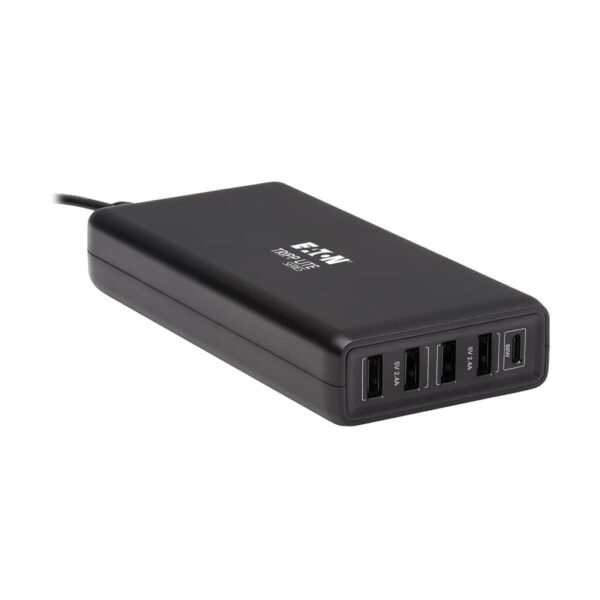

Tripp Lite series USB-IF Certified Multi-Device USB Charger, 110W Total, 1x USB-C PD 3.0 PD port (86W) and 4x USB-A Auto-sensing ports

$119.77

Brand: Tripp Lite
Part Number (MPN): U280-005-WS4C1
UPC / GTIN: 037332241030
Datasheet: PDF

Tripp Lite series USB-IF Certified Multi-Device USB Charger, 110W Total, 1x USB-C PD 3.0 PD port (86W) and 4x USB-A Auto-sensing ports

Manufacturer Warehouse: 124 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Certified by USB-IF to ensure highest-grade construction and performance
  • USB-C port charges PD 3.0 devices up to 4 times faster than normal USB charging
  • Auto-sensing USB-A ports adjust charging power for optimum charge and compatibility
  • Stops charging when connected device is at full capacity to protect battery from damage
  • Connects to any NEMA 1-15R, 5-15R or 5-15R/20R AC outlet for immediate charging

Features

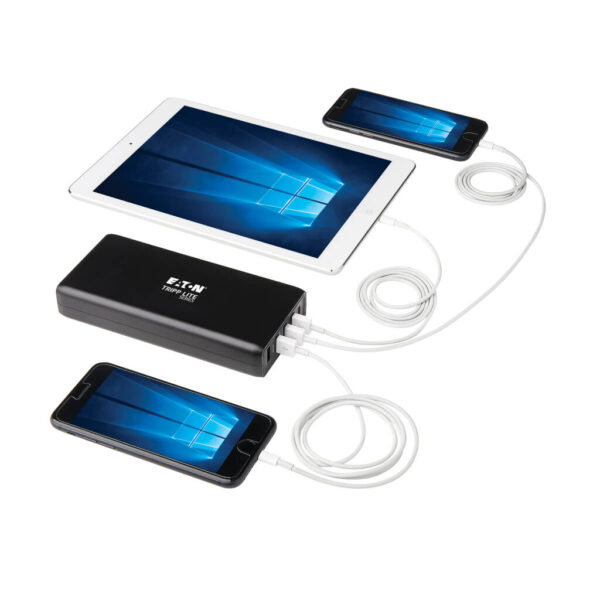

Portable USB Charging Station Charges Up to 5 Devices at the Same Time At home or in the office, this USB charging station provides enough power and ports to keep your devices at 100% capacity. No more peering behind furniture to find an available outlet or unplugging one device to charge another. This compact charging station charges up to five devices at the same time, including smartphones, tablets, MacBooks, Chromebooks, Amazon Kindles, and handheld gaming consoles at a maximum of 110W. It doesn’t require a computer, so you can take it anywhere AC power is available. Provides Plenty of Juice for Charging with Auto-Sensing Technology Four USB-A ports are split into two banks, each capable of delivering up to 5V 2.4A (12W) of power—enough for fast-charging smartphones and other mobile devices. Built-in auto-sensing lets the port detect the connected device and automatically adjust the required power level accordingly for optimum charge and compatibility. For devices that are even more powerful, the USB-C port provides up to 20V 4.3A (86W) for battery-intensive devices like the MacBook Pro or Chromebook Pixel. The USB-C port supports PD 3.0 Charging, which is up to four times faster than conventional USB charging. USB-IF Certification Ensures Rigorous Testing and Top-of-the-Line Performance This cable meets the high standards of USB-IF (USB Implementers Forum, Inc.), a non-profit organization consisting of companies that developed the USB specification. Receiving USB-IF certification means the U280-005-WS4C1 meets the industry’s highest environmental, mechanical and electrical standards. It operates with your USB peripherals, adapters and cables with top efficiency and safety. Easy to Use with the Included Power Cord To charge your USB devices, simply plug the included four-foot power cord into any standard AC outlet, and connect your devices to the available USB ports. The charger protects against overheating, overcurrent and overcharging—in fact, it stops charging as soon as your devices’ batteries reach capacity.

System Requirements

  • Power cord for 120V applications included. For 230V applications, you will need to provide an applicable 230V power cord (sold separately).

Package Includes

  • U280-005-WS4C1 5-Port USB Charging Station
  • C7 to NEMA 1-15P power cord, 4 ft.
  • Quick Start Guide
Weight 1.16 lbs
Dimensions 4.65 × 9.25 × 1.81 in
UPC Code

037332241030

Number of Ports

5

Brand

Product Type

Charging Station

Charging Form Factor

Charging Hub

Device Compatibility

Phone; Tablet; Amazon Kindle; Laptop; Amazon Kindle

Nominal Input Voltage(s) Supported

120V AC; 230V AC

Input Connection Type

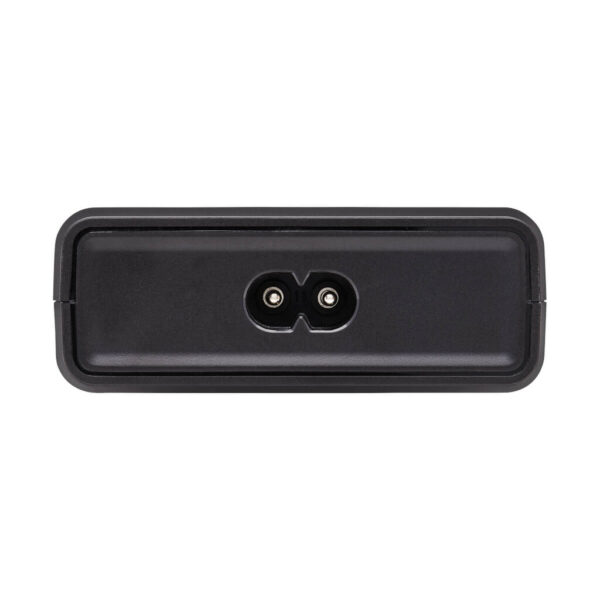

IEC C7

Voltage Compatibility (VAC)

100; 110; 120; 125; 127; 200; 208; 220; 230; 240

Input Frequency

50 / 60 Hz

Input Plug Type

NEMA 1-15P (NON-POLARIZED)

Input Current

5V (4.8A) / 20V (4.3A)

Frequency Compatibility

50 / 60 Hz

Overload Protection

Yes

Battery Charging (5V/1.5A Port)

Yes

Power Source Type

AC Adapter with detachable power cord

Power Consumption (Watts)

0.3

USB Power Delivery (PD) Charging Support

Yes

USB Power Delivery (PD) Charging Specification

3.0

Power Consumption Detail

0.3 (No Load)

Side A - Connector 1

NEMA 1-15P (NON-POLARIZED)

Side B - Connector 1

(4) USB A (FEMALE)

Side B - Connector 2

USB C (FEMALE)

Number of Charging Ports

5

Total Charging Amps

9.1A

Total Charging Watts

110

Charging Method

USB

Charging Method Detail

Power Delivery 3.0

Charging Port Type

(4) USB A (FEMALE); USB C (FEMALE)

Charging Ports Details

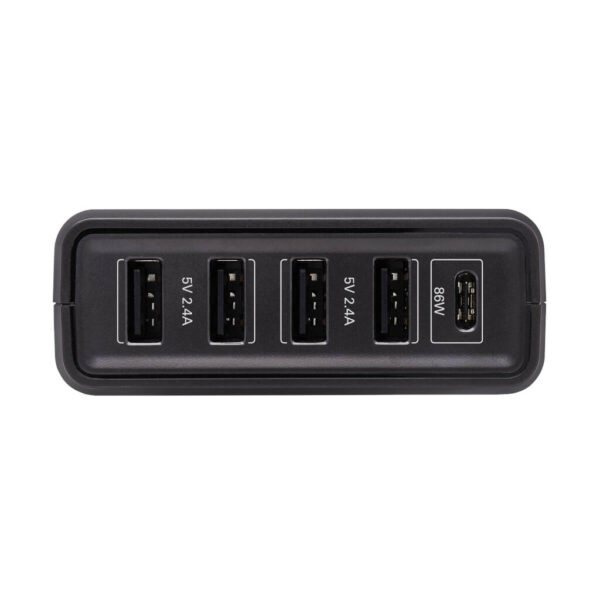

USB-A: 5V/2.4A USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/4.3A

Charging Ports / Amps

(4) 2.4A; 3A / 4.3A

Overcharge Protection

Yes

Compatible Devices

Chromebook; Laptop; Portable Speaker; Smartphone; Tablet; Video Game Console

Color

Black

Material of Construction

Polycarbonate

Shipping Dimensions (hwd / cm)

4.60 x 23.50 x 11.81

Shipping Weight (kg)

0.53

Unit Dimensions (hwd / cm)

16 x 7.6 x 2.8

Unit Packaging Type

Box

Unit Weight (kg)

0.36

Operating Temperature Range

32° to 95°F (0° to 35°C)

Storage Temperature Range

-4° to 185°F (-20° to 85°C)

BTUs

1.02

Operating Humidity Range

5% to 95% RH, NON-CONDENSING

Storage Humidity Range

20% to 90% RH, Non-Condensing

Overvoltage Protection

Yes

Over Current Protection

Yes

Product Certifications

USB-IF; cUL Listed; UL Listed

Product Compliance

RoHS; REACH; FCC (USA)

Product Warranty Period (Worldwide)

2-year limited warranty
