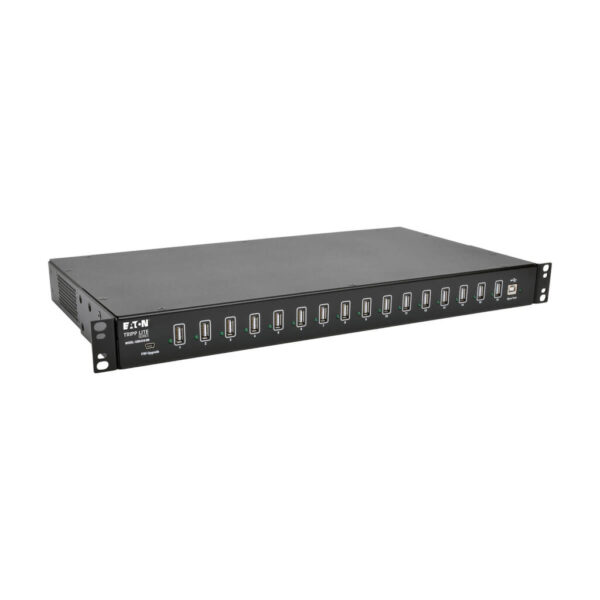

Tripp Lite series 16-Port USB Charging Station with Syncing Function – 5V 40A / 200W USB Charger Output
$604.94
Tripp Lite series 16-Port USB Charging Station with Syncing Function – 5V 40A / 200W USB Charger Output
Quick Specs
- Sync and charge up to 16 tablets, phones, or other mobile device
- Provides up to 5V, 2.4A (12 Watts) of power per port, for charging battery-intensive devices such as an iPad
- Charge your devices without the need to connect to a computer
- Sync your devices using their file management software, such as Apple iTunes or Apple Configurator
- Supports USB 2.0 data transfer rates up to 480Mbps

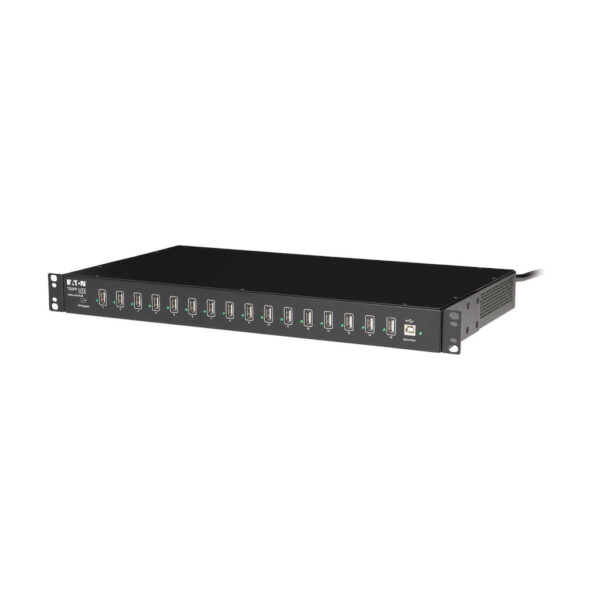

- Mounting hardware included for use in a rack installation
Overview

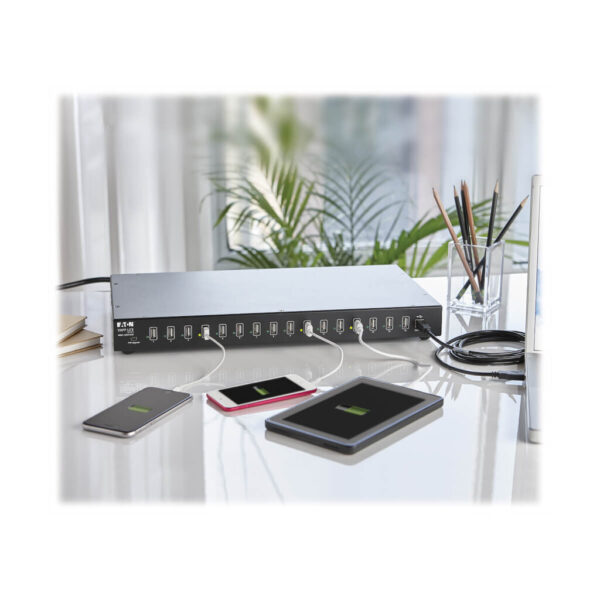

For battery-intensive mobile devices, a standard USB hub may not sufficient for charging. This U280-016-RM 16-Port Charger with Syncing Function is the solution, allowing you to charge up to 16 tablets, phones or other mobile devices all at the same time. Up to 5V 2.4A (12W) of power is provided to each port, perfect for charging the most power-hungry devices. In addition to charging, you can sync your devices using their file management software, such as Apple iTunes or Apple Configurator. So whether you’re at home or in the office, you no longer need to run around looking for an available outlet or unplug one device to charge the other. The U280-016-RM provides you with the ports and power you need. To ensure you stay current with technology, a firmware upgrade port is provided for future software upgrades. Constructed of heavy-duty steel housing. Mounting hardware included for use in a rack installation.
Features
- Sync and charge up to 16 tablets, phones, or other mobile device
- Provides up to 5V, 2.4A (12 Watts) of power per port, for charging battery-intensive devices such as an iPad
- Charge your devices without the need to connect to a computer
- Sync your devices using their file management software, such as Apple iTunes or Apple Configurator
- Supports USB 2.0 data transfer rates up to 480Mbps
- Firmware upgrade port is provided for future software upgrades
- Mounting hardware included for use in a rack installation

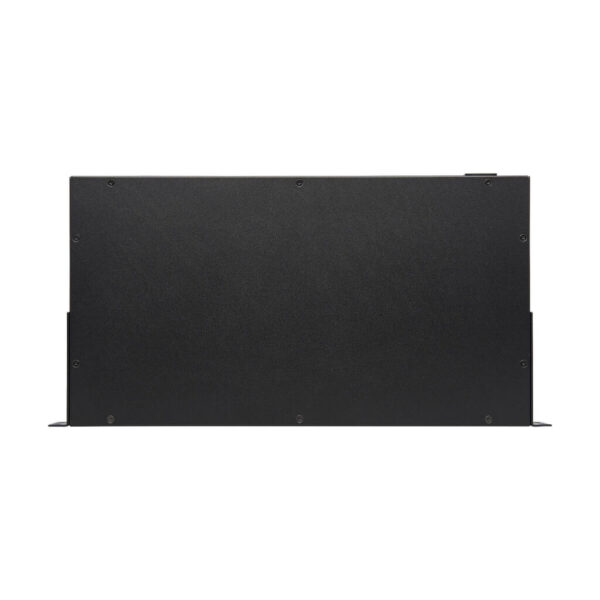

- Constructed of heavy-duty steel housing
System Requirements
- A tablet, phone, or other smart device (Note: The U280-016-RM was designed to charge smart devices such as phones and tablets, and not for use with non-smart devices)
- A computer with an available USB port (if using the syncing function)
- For international use, a P054-006 (Europe) or P056-006-10A (UK) can be purchased separately

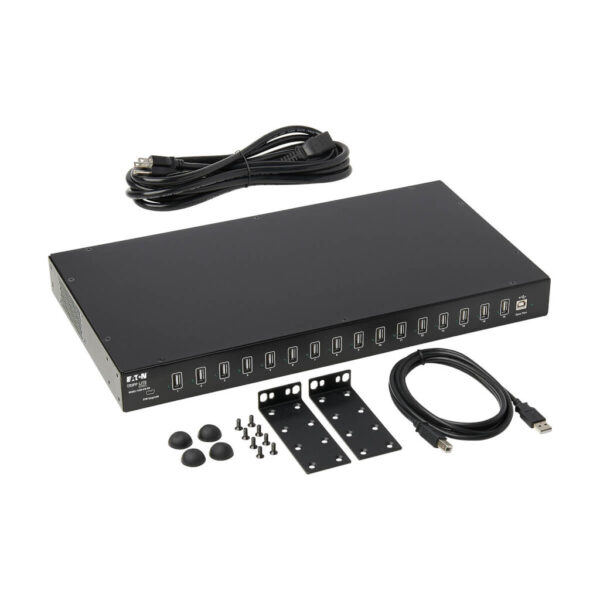

Package Includes
- U280-016-RM
- USB 2.0 A/B Device Cable

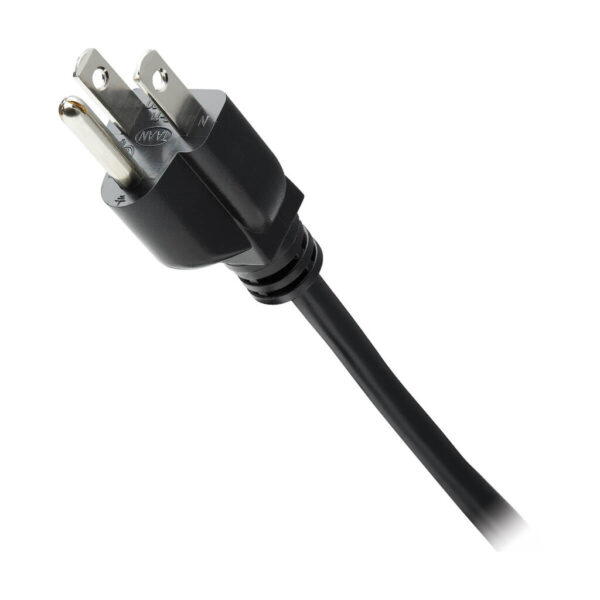

- C13 to 5-15P Power Cord
- Rubber Feet
- Mounting Hardware
- Owner’s Manual
| Weight | 10.7 lbs |
|---|---|
| Dimensions | 21.1 × 13.7 × 4.2 in |
| UPC Code | 037332182715 |
| Number of Ports | 16 |
| Brand | |
| Product Type | Charging Station |
| Charging Form Factor | Rack Mount |
| Device Compatibility | Phone; Tablet; Amazon Kindle |
| Nominal Input Voltage(s) Supported | 120V AC; 240V AC |

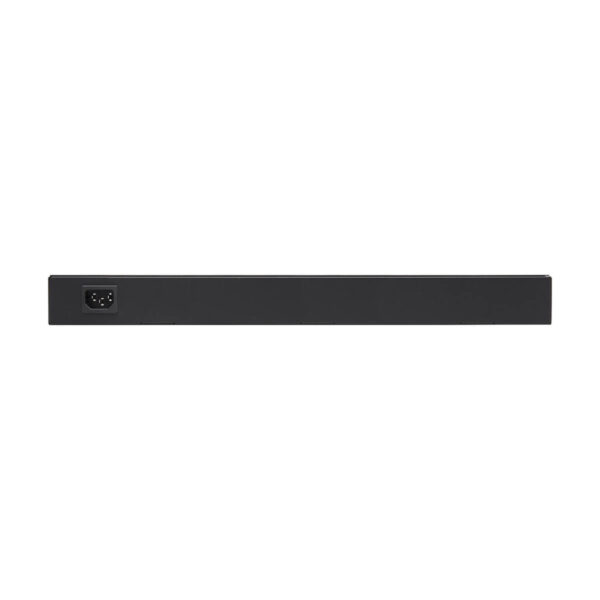

| Input Connection Type | IEC320-C14 |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Input Frequency | 50/60 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Current | 2.5A |
| Frequency Compatibility | 50 / 60 Hz |
| Overload Protection | No |
| Power Consumption (Watts) | 47 |

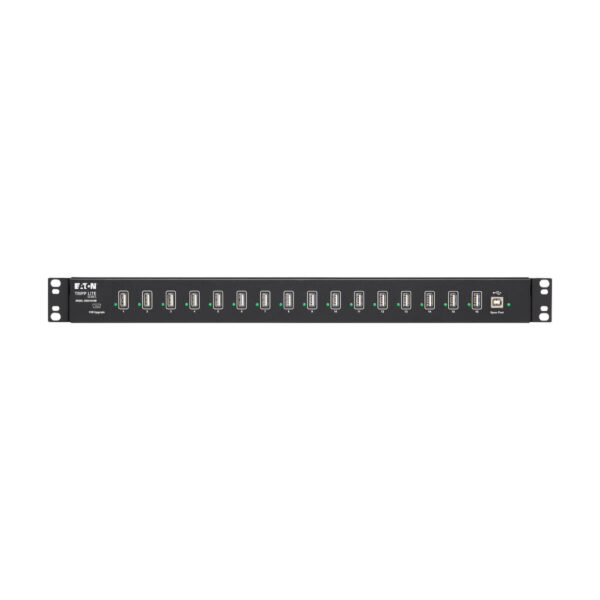

| Side A - Connector 1 | (16) USB A (FEMALE) |
| Side A - Connector 2 | USB B (FEMALE) |
| Side A - Connector 3 | MICRO-USB B (FEMALE) |
| Side B - Connector 1 | IEC-320-C14; USB B (FEMALE) |
| LED Indicators | Green (16x USB Charging, 1x Sync) |
| Number of Charging Ports | 16 |
| Total Charging Amps | 40A |
| Total Charging Watts | 200 |
| Charging Method | USB |
| Charging Port Type | (16) USB A (FEMALE) |
| Charging Ports Details | USB-A: 5V/2.4A |
| Charging Ports / Amps | (16) 2.4A |
| Color | Black |
| Material of Construction | Steel |
| Shipping Dimensions (hwd / cm) | 10.67 x 34.80 x 53.59 |
| Shipping Weight (kg) | 4.85 |
| Unit Dimensions (hwd / mm) | 440 x 240 x 43.5 |
| Unit Packaging Type | Box |
| Unit Weight (kg) | 3.40 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Relative Humidity | 5% to 95% RH, Non-Condensing |
| AC Mode Efficiency Rating (100% Load) | 78.88 |
| BTUs | 160.6 BTU/Hr (Full Load) |
| Overvoltage Protection | No |
| Driver Required | No |
| Product Certifications | CAN/CSA-C22.2 No. 60950-1 (Canada); IEC 60950-1; NOM (Mexico); UL 60950-1 |
| Product Compliance | FCC Part 15 Class B (USA); REACH; RoHS |
| Product Warranty Period (Worldwide) | 2-year limited warranty |
