Docking functionality compatible with Windows, MAC, and Linux systems
Overview

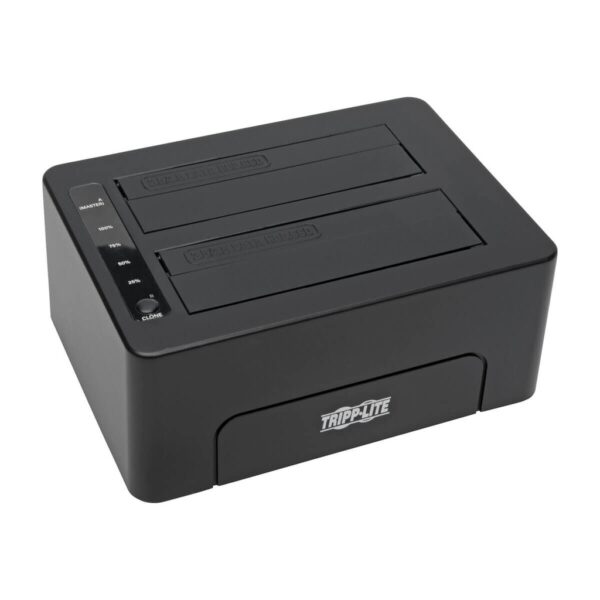

The U339-002 USB 3.0 SuperSpeed to Dual SATA External Hard Drive Docking Station allows two SATA 2.5-inch or 3.5-inch hard drives (HDD) or solid state drives (SSD) to be connected simultaneously to a computer through USB. Supports 2.5-inch or 3.5-inch drives up to 6TB. Will support larger capacity drives as they become available. Off-line cloning allows hard drive duplication without being connected to a computer.
Utilizing SuperSpeed USB 3.0, this docking station provides data transfer rates of up to 5 Gbps, but is also backward compatible with USB 2.0 systems (data transfer rates up to 480 Mbps).
Features
Dual SATA docking station enables the connection of two 2.5” or 3.5” hard drives via a computer’s USB port.
Easy set-up eliminates the need for time-consuming internal installation and facilitates access to a hard drive’s contents.
Offline cloning functionality allows hard drive duplication with the touch of a button – a host computer connection is not needed.
An LED progress bar displays cloning status.
Supports USB 3.0 connections with data transfer rates up to 5Gbps.
Compliant with SATA HDD or SSD drives up to SATA III
Backwards compatible with USB 2.0 and USB 1.1 standards.
Docking functionality compatible with Windows, MAC, and Linux systems
System Requirements
(x2) 2.5” or 3.5” SATA Hard Drive.
Computer with an available USB port. Note: A USB 3.0 port is required to achieve maximum transfer speeds up to 5Gbps. Cloning functionality will not work if the U339-002 is connected to a computer.
Docking functionality compatible with Windows, Mac and Linux systems.
Offline clone copies data from the master drive to the slave drive, leaving the remaining data unallocated. Windows computers will be able to reallocate the remaining data, whereas Mac and Linux computers will not.

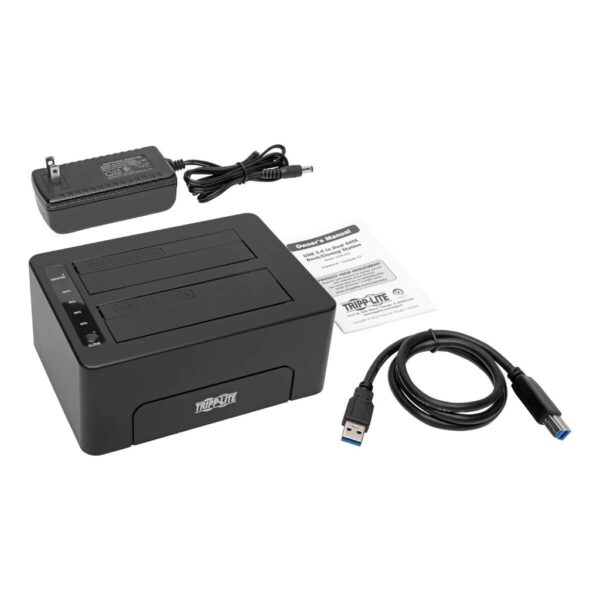

Package Includes
U339-002 USB 3.0 SuperSpeed to Dual SATA External Hard Drive Docking Station
2.5-ft. USB 3.0 Device Cable
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 1.5A; Output:12V, 3A)
OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)
36

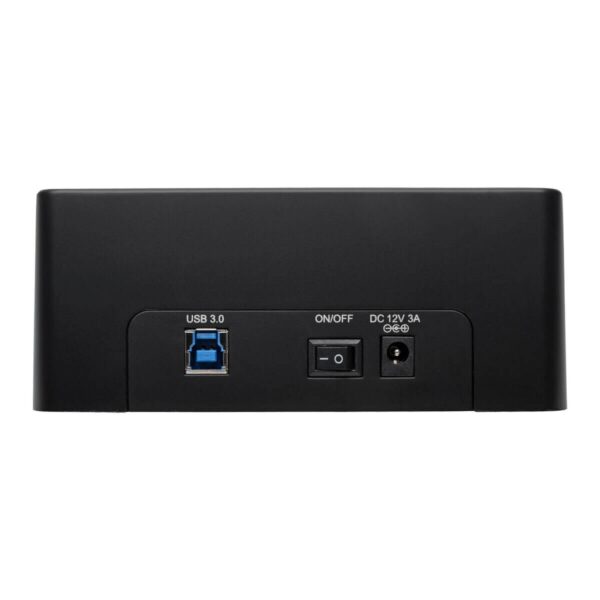

Side A - Connector 1
USB 3.0 A (MALE)
Side B - Connector 1
(2) 22 PIN SATA + POWER (FEMALE)
Connector Plating
Nickel
LED Indicators
Red (Read, Write, Power); Blue (Clone)
Color
Black
Material of Construction
ABS
Shipping Dimensions (hwd / cm)
6.86 x 16.00 x 20.32
Shipping Weight (kg)
0.77
Unit Dimensions (hwd / cm)
6.2 x 15.3 x 11.1
Unit Packaging Type
Box
Unit Weight (kg)
0.41
Operating Temperature Range
50° to 122°F (10° to 50°C)
Storage Temperature Range
32° to 149°F (0° to 65°C)
Relative Humidity
10% to 80% RH, Non-Condensing
BTUs
122.8 BTU/Hr
USB Specification
USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
UASP Support
Yes
Driver Required
No
External Power Supply Certifications
FCC; UL; cUL; RoHS
Product Compliance
RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)
3-year limited warranty
