Tripp Lite series USB 3.x (5Gbps) Laptop Dock – HDMI, DVI Video, Audio, USB, Ethernet

Quick Specs

• Add multiple ports to your laptop via one USB 3.0 connection
• Backward compatible to USB 2.0 and 1.1
• Windows 7 and later compatible, Windows 10
• Mac OS 10.8.5 and later compatible, Mac 10.11
• Compatible with Ubuntu 14.04.2

Overview

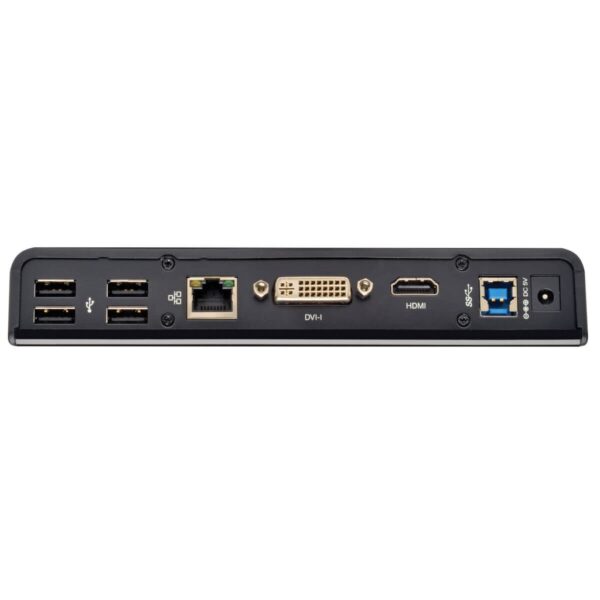

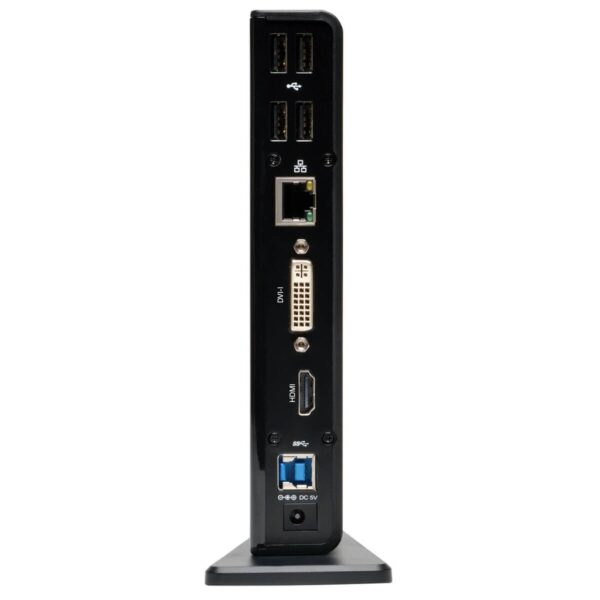

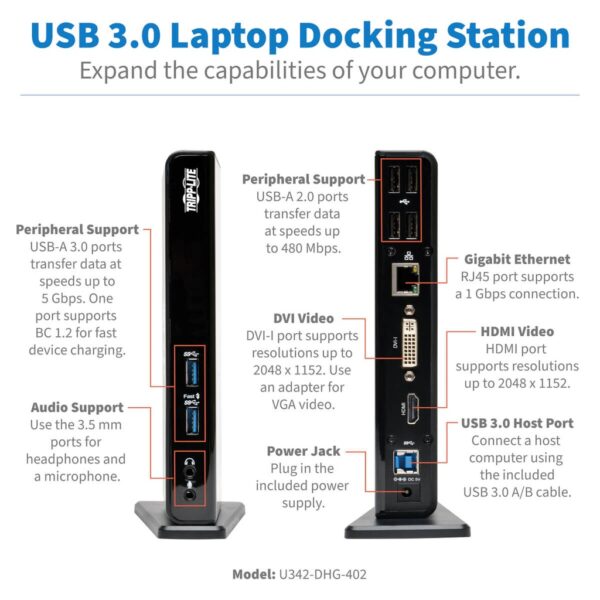

The U342-DHG-402 dock adds HDMI, DVI, 3.5 mm audio, Gigabit Ethernet and six USB ports to your computer, laptop or other device with a USB-A port. Two of the six USB-A ports support USB 3.2 Gen 1 speeds up to 5 Gbps. One USB 3.0 port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device.

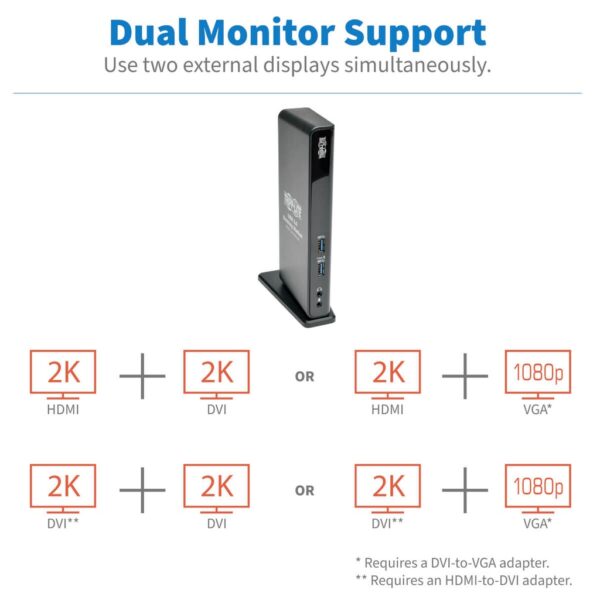

The universal USB docking station features two independent external monitor outputs (HDMI, DVI) that can be used to expand or mirror your computer’s main desktop. Both HDMI and DVI outputs support video resolutions up to 2048 x 1152 @ 60 Hz, including 1080p, and can be used simultaneously. A DVI monitor can be connected to the HDMI port via an HDMI-to-DVI adapter (sold separately). A VGA monitor can be connected to the DVI-I port using a DVI-to-VGA adapter (sold separately).

An all-in-one solution, the U342-DHG-402 also features audio ports for connecting a microphone and speakers, as well as an RJ45 port for connecting to a Gigabit Ethernet network. The USB dock supports true 10/100/1000 Mbps (1 Gbps) Gigabit Ethernet speeds.

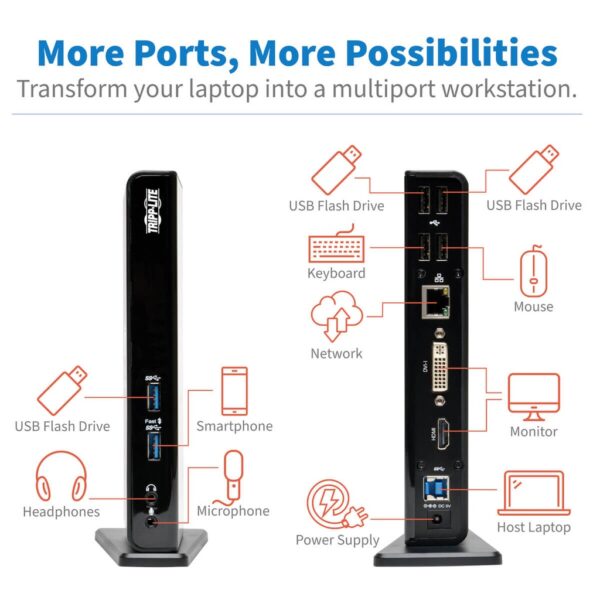

The U342-DHG-402 is an ideal accessory for enhancing laptop capability for users who need to connect and manage multiple devices at home or at the office. Compatible with Windows and Mac computers.

Features

• USB 3.0 is 10 times faster than USB 2.0 and supports data transfer rates of up to 5 Gbps
• Backward compatible with USB 2.0 and 1.1
• DVI-I and HDMI ports for connection of external monitors
• A VGA monitor can be connected to the DVI-I port using a DVI-to-VGA adapter, such as a P556-Series cable
• A DVI monitor can be connected to the HDMI port using an HDMI-to-DVI adapter, such as a P566-Series cable
• Supports video resolutions of up to 2048 x 1152 @ 60 Hz
• Automatically resumes operation from hibernation and suspend modes
• Gigabit Ethernet port supports true 10/100/1000 Mbps network speeds
• IEEE 802.3az (Energy Efficient Ethernet) compliant
• Supports full duplex and half duplex operations
• Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading
• Supports Wake-on LAN, VLAN tagging and Auto-MDIX
• Two USB 3.0 and four USB 2.0 hub ports for connection of additional USB peripherals
• One USB 3.0 port supports USB Battery Charging (BC) specification 1.2, allowing it to provide 1.5 amps of power for faster charging of mobile devices
• 3.5 mm Mini Stereo jacks for connection of speaker and microphone
• Compatible with Windows 7 and later, Windows 10
• Compatible with macOS 10.8.5 and later, Mac 10.11

System Requirements

• Windows® 7 / Windows 10 (32- and 64-bit), 8 (32- and 64-bit), 8.1 (32- and 64-bit) or 10 (32- and 64-bit)
• Mac OS X 10.8.5 and later, Mac 10.11
• Available USB port (USB 3.0 required for USB 3.0 speeds)
• VGA*, DVI or HDMI monitor
• 1.6 GHz Single Core processor (DVD playback on the add-on monitor requires a 2.0 GHz Dual Core processor)
• 1 GB RAM
• 30 MB of available disk space ( * Requires a DVI-VGA adapter, such as P556- Series cable )

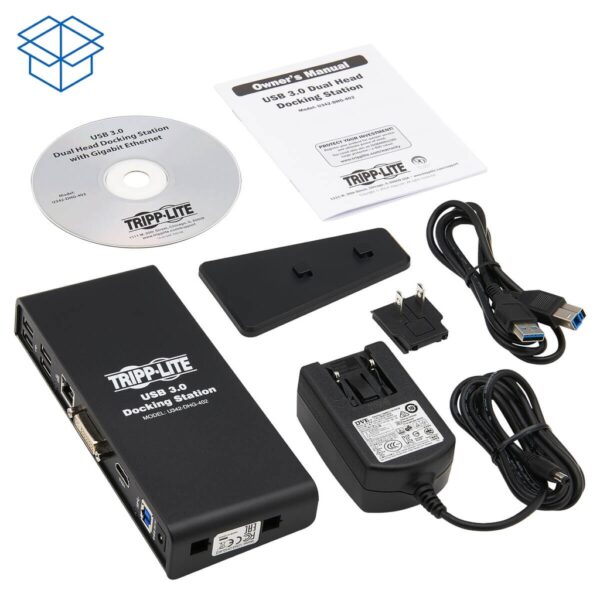

Package Includes

• U342-DHG-402
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.8A; Output: 5V, 4A), 6 ft.
• USB 3.0 A/B Cable, 3 ft.
• Driver CD
• Owner’s Manual
