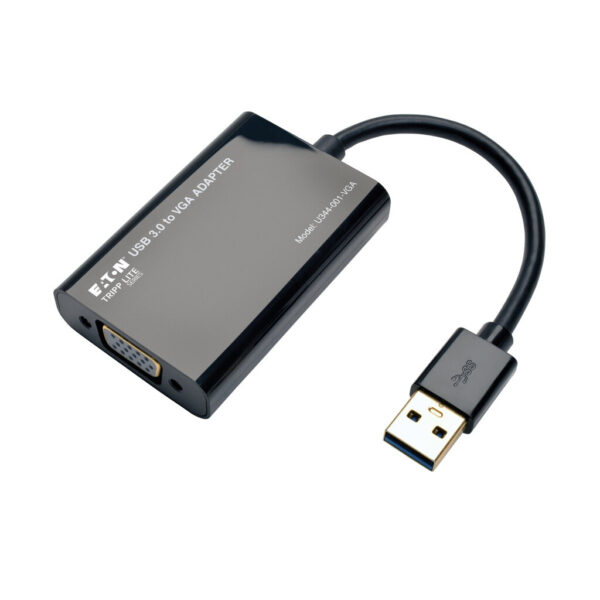

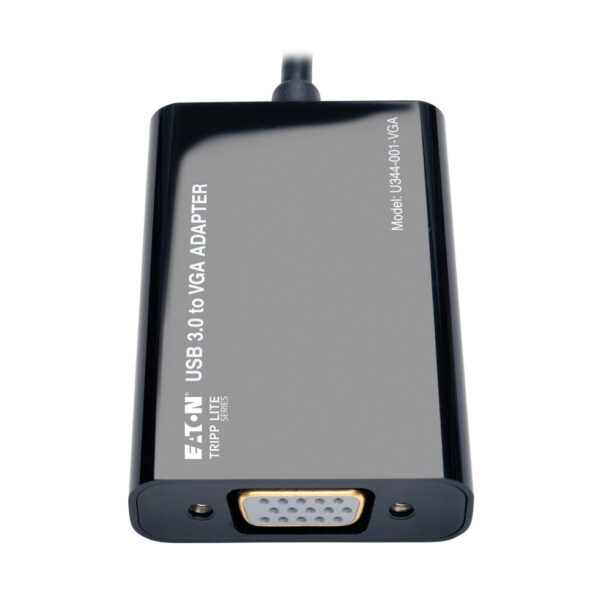

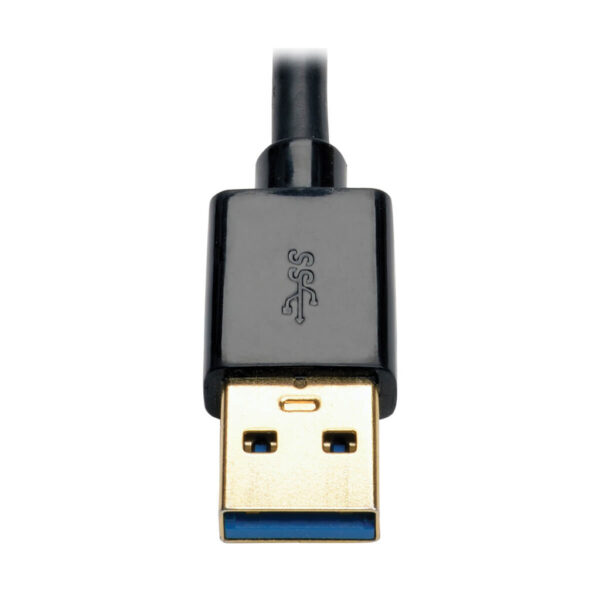

Tripp Lite series USB 3.0 SuperSpeed to VGA Adapter, 512MB SDRAM – 2048×1152,1080p

$48.69

Brand: Tripp Lite
Part Number (MPN): U344-001-VGA
UPC / GTIN: 037332186355
Datasheet: PDF

Tripp Lite series USB 3.0 SuperSpeed to VGA Adapter, 512MB SDRAM – 2048×1152,1080p

Manufacturer Warehouse: 61 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Add an additional VGA monitor through a single USB 3.0 port
  • Up to six adapters can be added to one computer
  • Features 512MB DDR2 SDRAM of memory
  • Supports video resolutions up to 2048 x 1152 (60Hz), 1080p (60Hz)
  • Windows and Intel Mac compatible
  • Compatible with Ubuntu 14.04.2

Overview

The U344-001-VGA USB 3.0 to VGA Multi-Monitor External Video Adapter allows you to connect an additional monitor or projector to a computer/laptop’s USB 3.2 port. Up to six adapters can be used simultaneously, allowing the user to connect up to six additional monitors to a single computer. Once the installation is done, the computer screen appears on the add-on monitor(s) without the hassle of function keys to swap to a second monitor. Supports video resolutions up to 2048 x 1152 (60 Hz), 1080p (60 Hz). Windows and macOS compatible.

Features

  • Add an additional VGA monitor through a single USB 3.0 port
  • Use up to six adapters simultaneously, adding up to six additional monitors to a single computer
  • View large spreadsheets across multiple screens by extending video amongst all monitors
  • Play video on one monitor while working on another
  • Do multiple screen presentations from a laptop computer
  • Bus powered…no external power adapter needed
  • Features 512MB DDR2 SDRAM of memory
  • Supports video resolutions up to 2048 x 1152 (60Hz), 1080p (60Hz)
  • Compatible with Windows 7 and later. Supports both 32- and 64-bit.
  • Supports Surface tablets running non-RT Windows 8 and 8.1
  • Compatible with Intel Mac OS X 10.8.5 and later. Supports both 32- and 64-bit.
  • Uses DisplayLink DL3100 chipset

System Requirements

  • Compatible with Windows 7 and later. Supports both 32- and 64-bit.
  • Supports Surface tablets running non-RT Windows 8 and 8.1
  • Compatible with Intel Mac OS X 10.8.5 and later. Supports both 32- and 64-bit.
  • Reference the owner’s manual for system requirements when using multiple adapters or when using the add-on monitor for DVD playback.

Package Includes

  • (1) U344-001-VGA USB 3.0 to VGA Adapter
  • (1) Driver CD
  • (1) Owner’s Manual
Weight 0.04 lbs
Dimensions 5.2 × 5.2 × 0.91 in
UPC Code

037332186355

Brand

Technology

VGA/SVGA

Max Supported Video Resolution

2048 x 1152 (1080p) @ 60Hz

Bus Powered

Yes

Product Length (in.)

8

Power Consumption (Watts)

1.3

Side A - Connector 1

USB 3.0 A (MALE)

Side B - Connector 1

HD15 (FEMALE)

Connector Plating

Nickel

Color

Black

Material of Construction

PVC, ABS

Cable Jacket Rating

VW-1

Unit Packaging Type

Box

Unit Weight (kg)

0.03

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

-4° to 140°F (-20° to 60°C)

Relative Humidity

10% to 90 % RH, Non-Condensing

BTUs

4.4 BTU/Hr

USB Specification

USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)

Driver Required

Yes

Product Compliance

RoHS; CE (Europe); REACH; FCC (USA)

Product Warranty Period (Worldwide)

3-year limited warranty
