Tripp Lite series 6-Port USB Charging Hub – USB 3.x (5Gbps) and USB 2.0, Dedicated Charging Port

Name: Tripp Lite series 6-Port USB Charging Hub - USB 3.x (5Gbps) and USB 2.0, Dedicated Charging Port
Brand: Tripp Lite
SKU: U360-412
Price: 60.16 CAD
Availability: InStock

$60.16

Brand: Tripp Lite

Part Number (MPN): U360-412

UPC / GTIN: 037332173560

Datasheet: PDF

Tripp Lite series 6-Port USB Charging Hub – USB 3.x (5Gbps) and USB 2.0, Dedicated Charging Port

Manufacturer Warehouse: 815 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

USB 3.0 Hub with two USB 3.0 SuperSpeed ports and four USB 2.0 High-Speed ports
One dedicated port for Tablet charging ( 5V, 2A )
USB 3.0 ports support up to 900mA per port
USB 2.0 ports support up to 500mA per port
Plug-and-Play – no software or drivers required

Overview

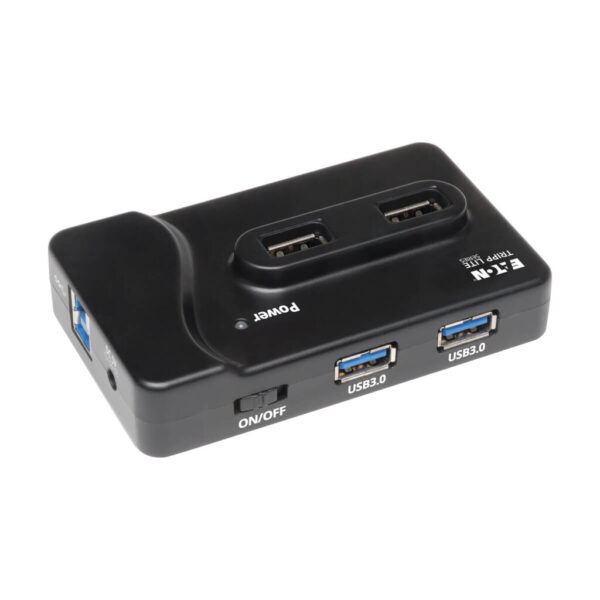

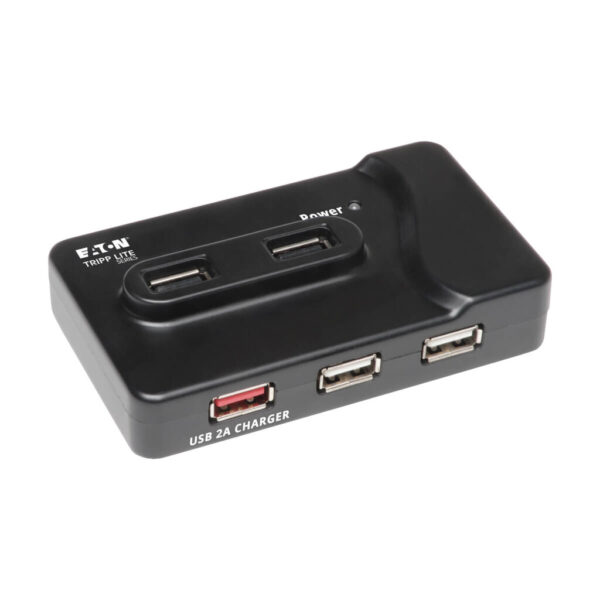

The U360-412 USB 3.0 Charging Hub plugs into a computer’s USB 3.0 port and provides two USB 3.0 SuperSpeed peripheral ports, four USB 2.0 High-Speed peripheral ports and one charging port for charging tablets. Two USB 2.0 ports have convenient top plugging for thumb drive access. Dedicated 2A charging port supplies the extra amperage needed to charge tablets. Plug-and-Play, so no software or drivers are required. Automatically switches to the highest speed supported by the peripheral. Windows (compatible with Windows 10) and macOS compatible.

Features

USB 3.0 ports support 5Gbps transfer speeds when plugged into a USB 3.0 computer and peripheral
USB 2.0 ports support High-Speed 480Mbps speeds
Charging port provides 5V,2A for tablet ( iPad ) full battery charging
USB 3.0 ports support up to 900mA per port
USB 2.0 ports support up to 500mA per port
The included external power supply provides 4A of power, to be shared between the hub ports (up to 2A for iPad charging port, up to 900mA per USB 3.0 port, up to 500mA per USB 2.0 port)
Top mount ports for Thumb Drive connections
Plug-and-Play
No software or drivers required
Windows (compatible with Windows 10) and Mac compatible
Overcurrent protection
LED power indicator light

System Requirements

USB 3.0 or 2.0 computer
USB 3.0 or 2.0 peripherals

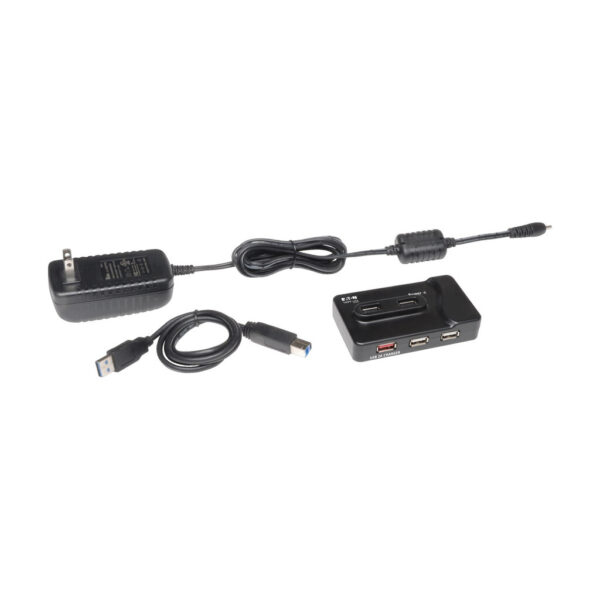

Package Includes

USB 7-port Hub
USB 3.0 A-B cable, 3ft
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.9A; Output: 5V, 4A)

Weight	1.02 lbs
Dimensions	5.5 × 4.6 × 3 in
UPC Code	037332173560
Cord Length	4.92
Number of Ports	7
Brand	Tripp Lite
Product Type	Hub
Technology	USB 3.x
Host Connector	USB A (MALE)
Extended Mode	No
Mirror Mode	No
Data Ports	(6) USB A (FEMALE)
Data Ports Details	(2) USB-A – USB 3.2 Gen 1 (5 Gbps); (4) USB-A – USB 2.0
AC Power Adapter Plug(s)	NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 0.6A
AC Power Adapter Output Specs (V / A)	5V / 4A
AC Power Adapter Cord Length (ft.)	5
AC Power Adapter Cord Length (m)	1.5
Voltage Compatibility (VAC)	100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Power Source Type	AC Adapter
AC Adapter	Input: 100-240V, 50/60Hz, 0.9A; Output: 5V, 4A
DC Barrel Plug	OD: 3.5 x 1.35 x 10mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)	1.6
Side A - Connector 1	USB 3.0 A (MALE)
Side B - Connector 1	(2) USB 3.0 A (FEMALE)
Side B - Connector 2	(5) USB A (FEMALE)
Connector Plating	Nickel
LED Indicators	Green – Power
Charging Ports	USB-A: 2A
Charging Ports Details	Dedicated charging port
Charging Ports / Amps	(1) 2A
Color	Black
Material of Construction	ABS
Shipping Dimensions (hwd / cm)	7.62 x 11.68 x 13.97
Shipping Weight (kg)	0.46
Unit Packaging Type	Box
Unit Weight (kg)	0.08
Operating Temperature Range	-4° to 158°F (-20° to 70°C)
Storage Temperature Range	-4° to 185°F (-20° to 85°C)
Relative Humidity	20% to 80% RH, Non-Condensing
BTUs	5.5 BTU/Hr
Power Provided to Connected Device(s)	5V 0.5A (2.5W) Output (USB-A 2.0), 5V 0.9A (4.5W) Output (USB-A 3.0), 5V 2A (10W) Output (USB 2A Charger)
USB Hub Ports	Yes
Number of USB Hub Ports	6
USB Specification	USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps)
Driver Required	No
TAA Compliant Option	N
External Power Supply Certifications	FCC; UL; cUL; RoHS
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)	3-year limited warranty
