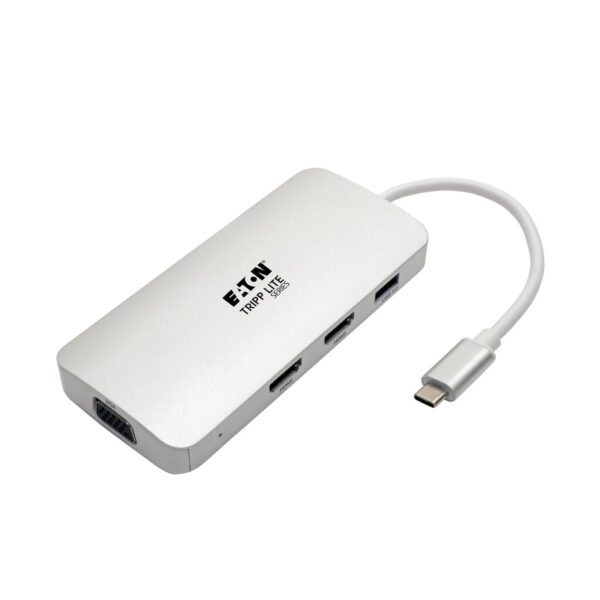

Tripp Lite series USB-C Dock, Triple Display – HDMI, VGA, USB 3.x (5Gbps), USB-A Hub, 60W PD Charging

Quick Specs

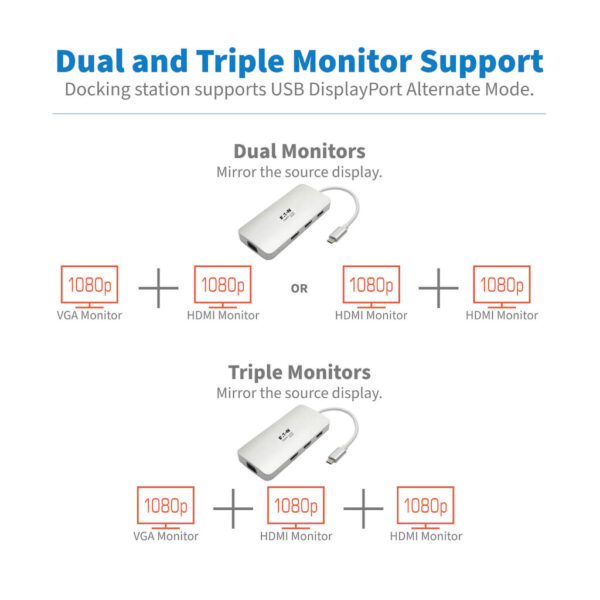

• Mirrors 3 displays at the same time for easy multitasking and increasing productivity
• Supports HDMI and VGA resolutions up to 1920 x 1200 (including 1080p) @ 60 Hz
• Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode

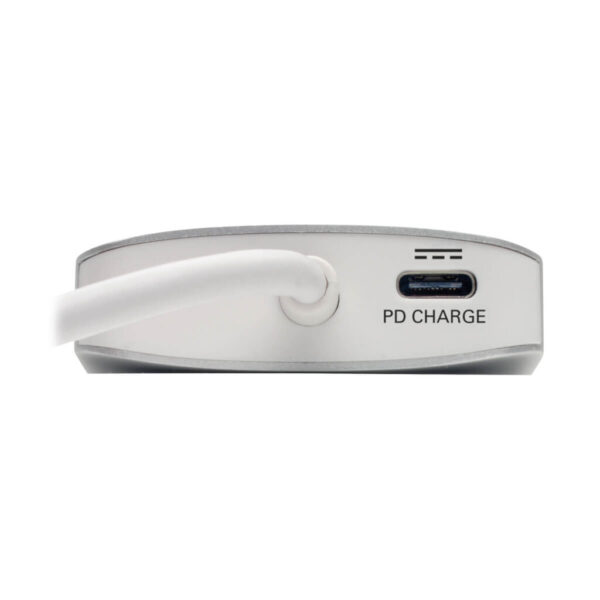

• Supports 20V 3A (60W) power output for fast-charging the host device
• USB-A port transfers data from thumb drives or printers at speeds up to 5 Gbps

Features

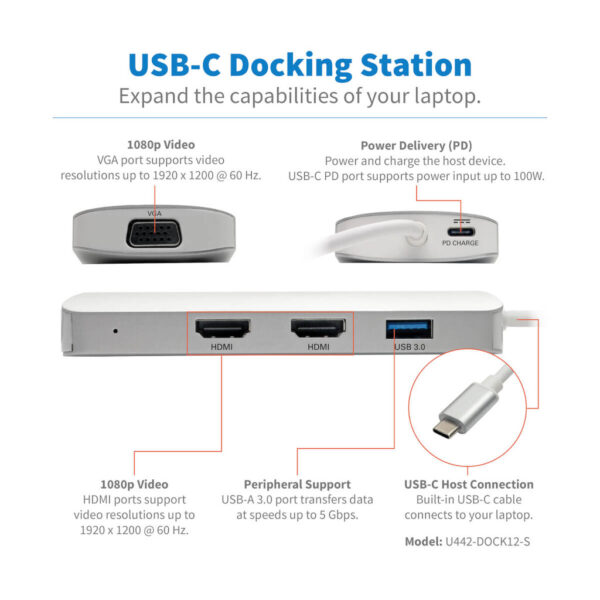

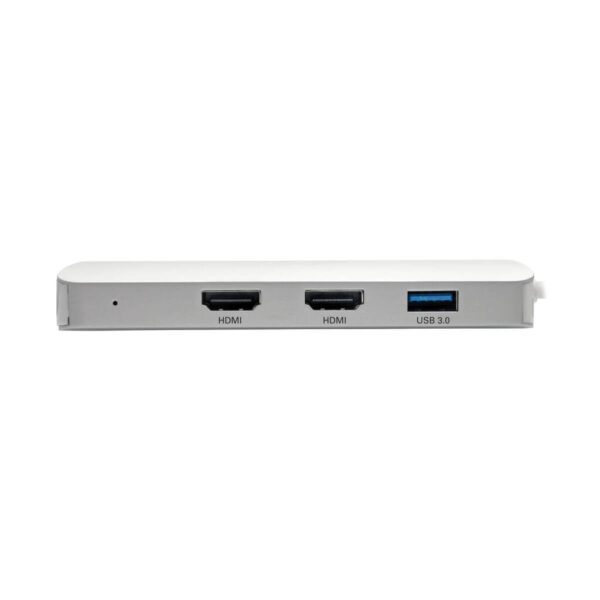

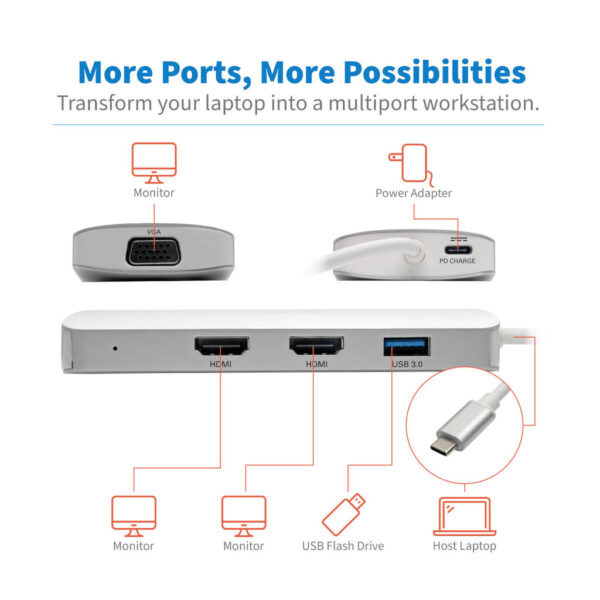

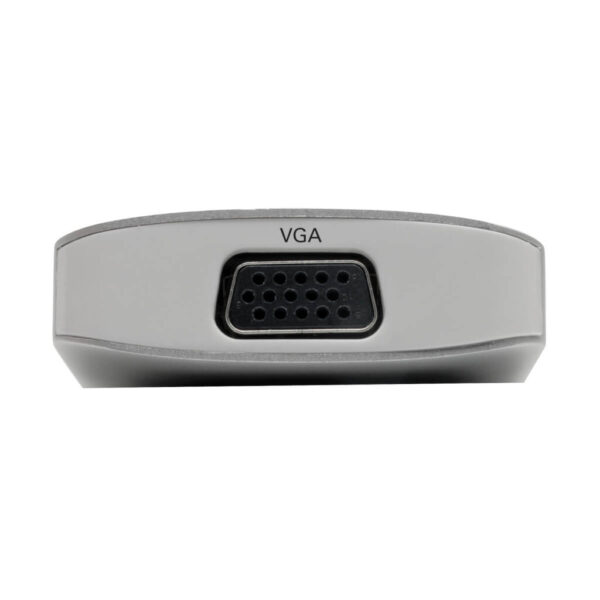

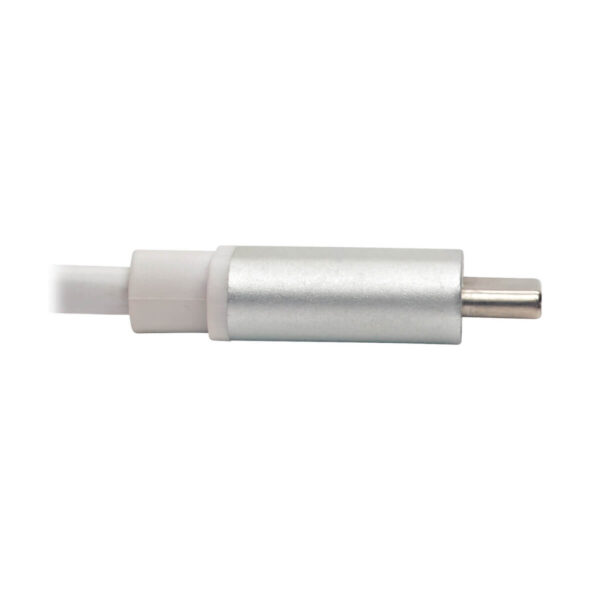

USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and more—all at the same time. Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 1080p video and digital audio to a compatible monitor, television or projector without installing special software drivers. Transmits Crystal-Clear 1080p Video and Digital Audio The two HDMI and single VGA ports support HD video resolutions up to 1920 x 1200, including 1080p, at 60 Hz. You can connect up to three external monitors at the same time in Mirror mode, which allows you to display the same 1080p image on all of them. A DVI display may also be connected using an HDMI to DVI adapter (sold separately). USB Port Connects Keyboards, Thumb Drives and Other USB Peripherals The USB 3.2 Gen 1 port accepts USB peripherals, such as flash drives, mice, keyboards and printers. It supports fast data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. Note: Host must support USB OTG (On-the-Go). PD 2.0 Charging Port Charges Connected Device via AC Wall Charger The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port. Note: USB-C PD port does not support Quick Charge (QC). Built-In USB-C Cable Connects in Either Direction Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Ready to Use Right Out of the Package The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.

System Requirements

• Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
• Display device with VGA, DVI* or HDMI input
• Not for use with Thunderbolt monitors

*Requires adapter (sold separately)

Package Includes

• U442-DOCK12-S USB-C Dock, Triple Display, Silver
• Owner’s manual
