Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
Supports single-output UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
Power Delivery port supports 20V 5A (100W) power output for charging host device
USB-A and memory card ports allow connection of flash drives and other peripherals
Plug-and-play operation with no software required for easy, immediate installation
Features

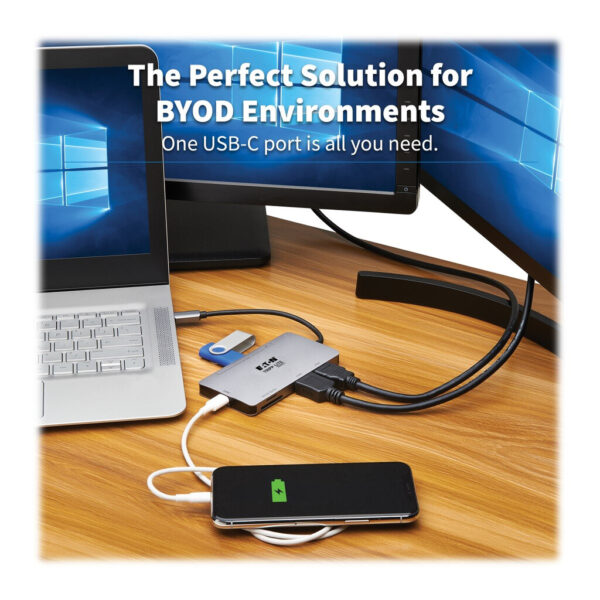

USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation This USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting 4K video and digital audio to two large displays, adding a thumb drive and other USB peripherals, and powering and charging a PD Charging-compliant mobile device, all at the same time.
Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals By connecting the built-in USB-C cable to a source device that supports USB DisplayPort (DP) Alt Mode, you can output 4K video and digital audio to an HDMI monitor, television or projector without installing special software drivers.

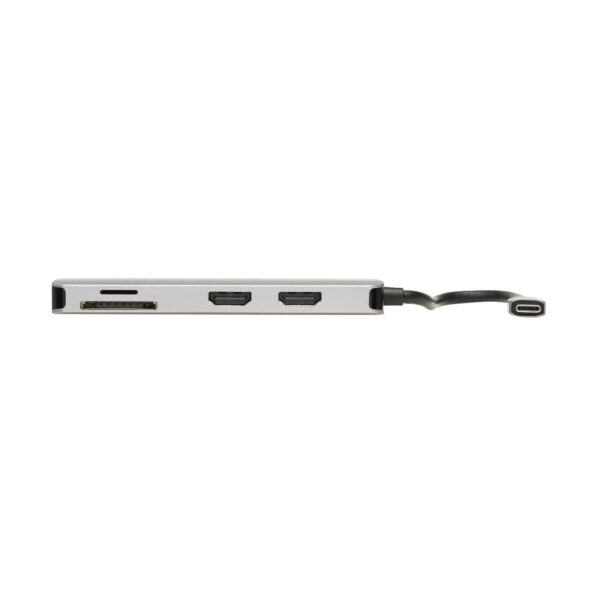

Transmits 4K Video to 2 HDMI Displays Simultaneously Two HDMI outputs each support 4K video resolutions up to 3840 x 2160 at 60 Hz with multi-channel sound, 36-bit Deep Color and 4:4:4 chroma subsampling. You can display the image from the host computer on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall. Connect both monitors in Extended (4K at 30 Hz under MST/Windows) or Mirror (4K at 60 Hz under SST/Mac) mode. Note: When connecting a DP 1.4 Alt Mode host, the maximum HDMI resolution is 3840 x 2160 at 60 Hz for one monitor and 3840 x 2160 at 30 Hz for two. When connecting a DP 1.2 Alt Mode host, the maximum HDMI resolution is 3840 x 2160 at 30 Hz for one monitor and 1920 x 1080 at 60 Hz for two, due to bandwidth limitation.

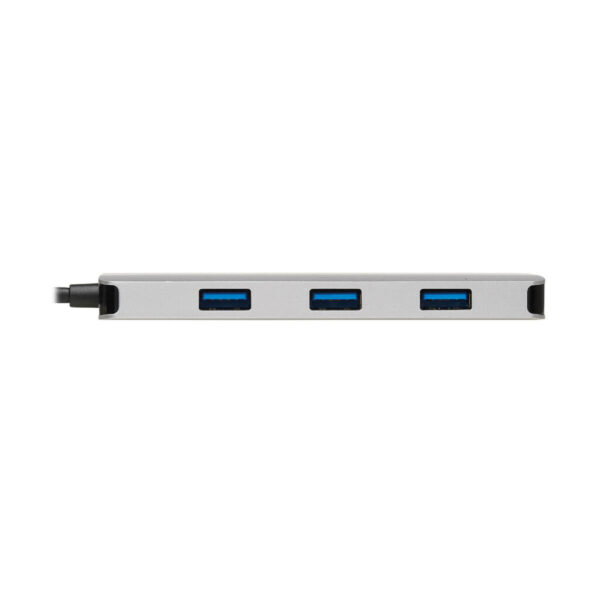

USB Ports Connect Keyboards, Thumb Drives and Other Peripherals Three USB-A hub ports accept USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with earlier USB generations. One dedicated port also supports 5V 1.5A (7.5W) of charging power dedicated to fast-charging your mobile device. Note: Host must support USB OTG (USB On-the-Go). The three ports share 8W (5V/1.6A) downstream charging.

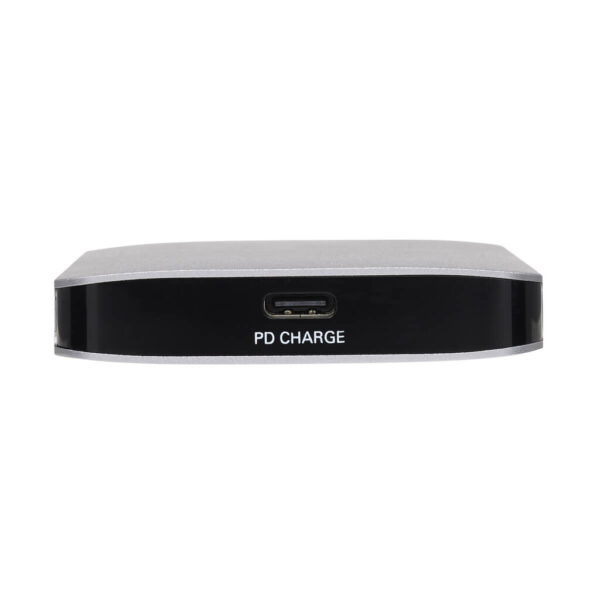

PD Charging Port Charges the Connected Notebook, Tablet or Other Device The USB-C port supports Power Delivery (PD) 3.0 charging of the connected PD Charging-compliant device. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). Note: 15W is dedicated to USB ports with remaining 85W available for PD Charging. This port does not support Quick Charge (QC).
Allows External Memory Access The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Both card slots can be used at the same time. The ports support Secure Digital v3.0 UHS-I (Ultra High Speed) HDR12.
Built-In USB-C Cable Attaches in Either Direction Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time.
Ready to Use Right from the Package, So You Can Plug and Play Immediately The plug-and-play USB-C dock is specifically designed for use with Windows laptops, Chromebooks and other devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed and no external power. It fits into a purse, backpack or laptop bag for multiport convenience wherever you go.
System Requirements
Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
Display device(s) with HDMI input
Multi-Stream Transport (MST) required to achieve extended dual displays; typically, Windows systems support MST
Single-Stream Transport (SST) required to achieve mirrored dual displays; typically, Mac systems support SST
3840 x 2160 @60Hz (Single); 3840 x 2160 @30Hz (Dual Extended)
Max Supported Video Resolution
3840 x 2160 @60Hz (Single); 3840 x 2160 @30Hz (Dual Extended)
Recommended Cabling
P568-Series 4K/30 Hz and 4K/60 Hz Video Cables
Extended Mode
Yes
Extended Mode Details
Note: Video output quantity and quality is dictated by the host computer's graphic card and ability to support MST mode. Not all laptops are capable of transmitting video to its primary screen and two connected displays. If two connected displays are desired then the local screen needs to be turned off under the computer's video settings. Mac OS does not support MST mode and only supports SST mode for transmitting mirrored video content to connected displays. To get maximum bandwidth the host should support DSC format.
Mirror Mode
Yes
Mirror Mode Details
Note: Video output quantity and quality is dictated by the host computer's graphic card. Not all laptops are capable of transmitting video to its primary screen and two connected displays. If two connected displays are desired then the local screen needs to be turned off under the computer's video settings. Mac OS does not support MST mode and only supports SST mode for transmitting mirrored video content to connected displays. To get maximum bandwidth the host should support DSC format.
Max Supported Color Depth
36-bit Deep Color
HDR Support
No
3D Video Supported
No
Chroma Sub Sampling
4:2:2; 4:4:4
DisplayPort Alt Mode
Yes
DSC Support
Yes
Data Ports
(3) USB A (FEMALE)
Data Ports Details
(3) USB-A – USB 3.2 Gen 1 (5 Gbps)
Card Slots
MICRO SD (FEMALE); SD (FEMALE)
Card Slots Details
Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s), SDR25(25Mbyte/s), SDR50(50Mbyte/s), DDR50(50Mbyte/s), and SDR104(104Mbyte/s) Both card slots can be used simultaneously
x1 USB-C PD 3.0 charging port provides up to 100W (20V/5A) to charge the host laptop x1 USB-A port provides 7.5W (5V/1.5A) dedicated to quickly charging mobile devices x3 USB-A ports share 8W (5V/1.6A) total for charging connected devices
Charging Ports / Amps
1.5A; 1.6A; 5A
Compatible Devices
Chromebook; Laptop; Smartphone; Tablet
Color
Black; Gray
Material of Construction
Aluminum, ABS
Cable Jacket Color
Black
Connector Color
Gray
Cable Jacket Material
TPE
Cable Jacket Rating
VW-1
Cable Outer Diameter (OD)
4.2mm
Cable Length (m)
0.12
Cable Length (cm)
12
Unit Dimensions (hwd / cm)
1.15 x 5.9 x 11
Unit Dimensions (hwd / mm)
11.5 x 59 x 110
Unit Packaging Type
Box
Unit Weight (kg)
0.09
Operating Temperature Range
32° to 113°F (0° to 45°C)
Storage Temperature Range
14° to 158°F (-10° to 70°C)
Operating Humidity Range
10% to 85% RH, Non-Condensing
Storage Humidity Range
5% to 90% RH, Non-Condensing
Power Provided to Connected Device(s)
USB-A: 5V/1.5A (7.5W), USB-C: 20V/5A (100W)
Over Current Protection
Y
Quick Charge Compliant
No
USB Hub Ports
Yes
Number of USB Hub Ports
3
USB Specification
USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps)
MST Support
Yes
Ethernet Support
No
UASP Support
No
Auto MDIX Support
No
Full Duplex Support
No
Suspend Mode Support
No
Remote Wakeup Support
No
SD Card Specification
SD; Micro SD
Displayport Specification
1.2; 1.4
HDCP Specification
1.4; 2.2
Driver Required
No
TAA Compliant Option
N
Product Certifications
ICES (Canada); NOM (Mexico)
Product Compliance
CE (Europe); FCC (USA); REACH; RoHS; UKCA
Product Warranty Period (Worldwide)
3-year limited warranty
