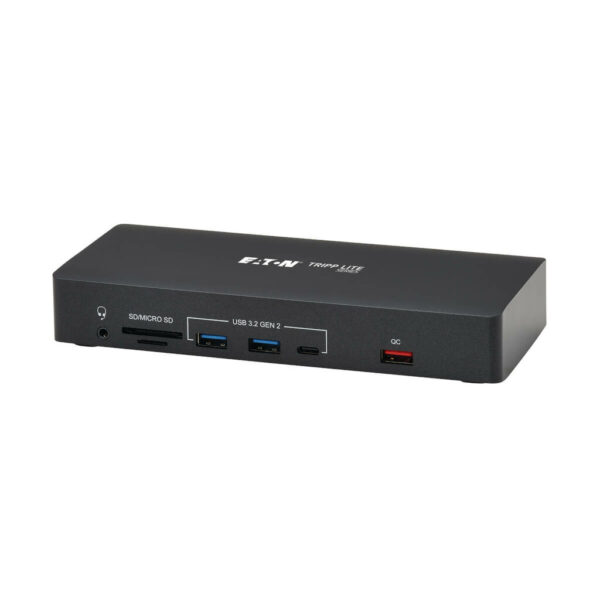

Tripp Lite USB-C Triple-Display Dock, 4K 60 Hz HDMI/DisplayPort, VGA, USB 3.2 Gen 2 Hub, GbE, 100W PD Charging, Antibacterial – U442AB-DOCK9

Quick Specs

• USB-C docking station extends desktop image across 2 HDMI and one DisplayPort monitor simultaneously
• Connects you to a wired 10/100/1000 Ethernet network when Wi-Fi is unavailable
• Power Delivery port supports 20V 5A (100W) power output for charging host device
• USB-C/A hub ports and memory card slots support flash drives and other peripherals
• Made with antibacterial material proven effective in inhibiting E. coli and staph

Features

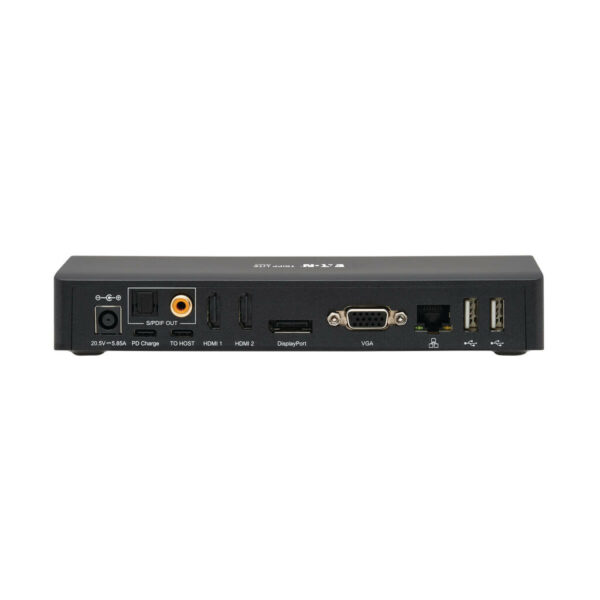

USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into 17 New Ports
This universal USB-C dock with Power Delivery (PD) charging expands the potential of your Windows laptop, Chromebook, MacBook Pro or PC’s USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 17 ports to your device:

• (2x) 4K 60 Hz HDMI
• 4K 60 Hz DisplayPort
• 1080p VGA
• RJ45 Gigabit Ethernet
• USB 3.2 Gen 2 Type-C
• (2x) USB 3.2 Gen 2 Type-A
• (2x) USB 2.0 Type-A
• USB-A Quick Charge 3.0
• USB-C PD Charging (100W)
• TOSLINK audio
• Coaxial audio
• 3.5 mm mini stereo
• SD 4.0 Card
• Micro SD 4.0 Card

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to compatible monitors, televisions or projectors without installing special software drivers.

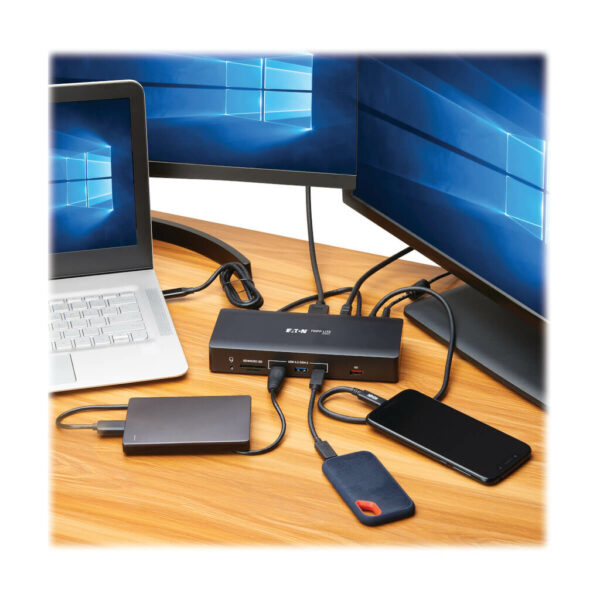

Transmits 4K Video to 3 Displays Simultaneously
The dual HDMI outputs and the DisplayPort output individually support 4K video resolutions at 60 Hz with High Dynamic Range (HDR) and 4:4:4 chroma subsampling. The VGA output supports 1080p resolutions and can be used simultaneously with the HDMI ports. By connecting a source that supports DisplayPort 1.2 HBR2, DisplayPort 1.4 HBR3 or DisplayPort 1.4 HBR3 with DSC support, you may connect up to three displays simultaneously. This allows you to display the same image on all monitors, extend your host desktop across all with different windows open on each, or combine all into one large display as a video wall. Note: See the SST (Single-Stream Transport) and MST (Multi-Stream Transport) tables in the included Owner’s Manual (also downloadable in PDF format from this page) for more information.

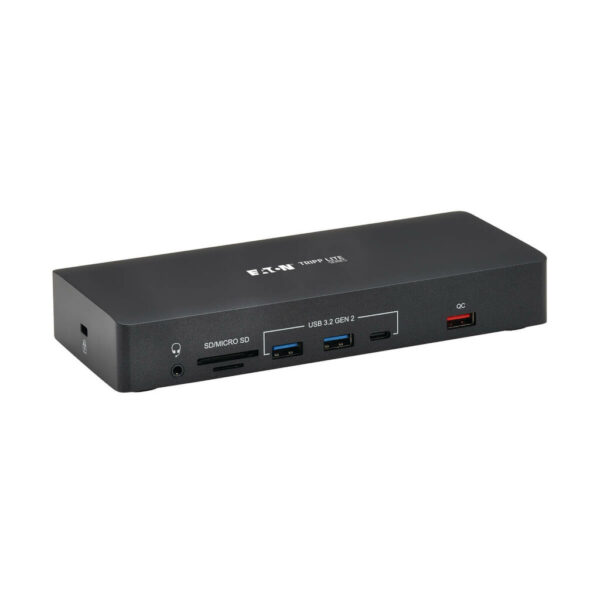

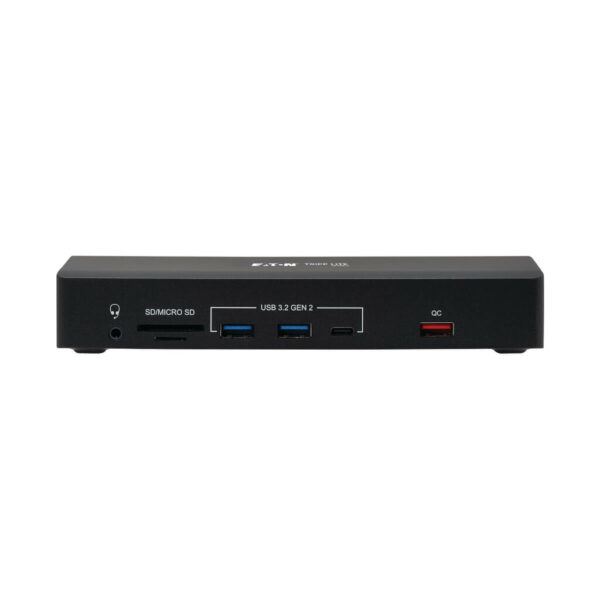

USB Ports Connect Keyboards, Thumb Drives and Other Peripherals
One USB-C and two USB-A hub ports support fast USB 3.2 Gen 2 data transfer rates up to 10 Gbps for connecting external storage, such as flash drives and external hard drives. Two other USB-A ports support USB 2.0 speeds for mice, keyboards and other peripherals. The Quick Charge 3.0 port is dedicated to charging smartphones and other compatible devices (5V/9V/12V) when the PD charging port is in use or if the external power supply is connected to an AC outlet.

PD Charging Port Charges the Connected Notebook, Tablet or Other Device
Connect the host device’s AC wall charger to the USB-C Power Delivery (PD) 3.0 port, which supports power input up to 20V 5A (100W). Smart power technology allows the U442AB-DOCK9 to distribute power according to actual consumption of the connected devices. The host receives 60W to 100W of power based on the number of connected devices drawing power.

Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

Allows External Memory Access
The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Both card slots support UHS-II up to 312 Mbps and can be used at the same time.

Connects Speakers, Microphone and Other Audio Equipment
A 3.5 mm mini stereo jack, an RCA coaxial port and a TOSLINK port are convenient for connecting speakers, headphones and/or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.

Provides Extra Protection Against Certain Bacteria
The U442AB-DOCK9 is constructed using an antibacterial material that is effective in inhibiting Escherichia coli (E. coli) and Staphylococcus aureus (staph). This added protection makes this Safe-IT™ docking station an ideal solution for medical facilities, schools, businesses, restaurants/kitchens and anywhere else that needs extra protection against bacteria.

Anti-Theft Lock Protects the USB-C Docking Station When You Aren’t Around
Connect a user-supplied computer/laptop security cable lock (not included) to this port to protect the dock against theft.

Ready to Use Right Out of the Package
The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed.

System Requirements

• Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
• Display device(s) with HDMI, DisplayPort and/or VGA input
• Multi-Stream Transport (MST) required to achieve extended or mirrored displays; typically, Windows systems support MST
• Single-Stream Transport (SST) required to achieve mirrored displays; typically, Mac systems support SST

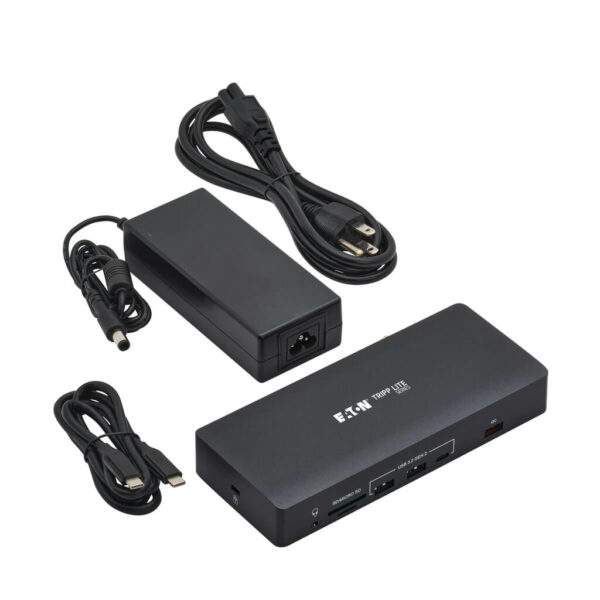

Package Includes

• U442AB-DOCK9 USB-C Dock, Triple Display
• USB-C to USB-C cable (M/M), 3.3 ft. (1 m)
• External power supply (Input: 100-240V, 50/60 Hz, 2A; Output: 20.5V 5.85A)
• Detachable C5 to NEMA 5-15P power adapter, 6 ft. (1.8 m)
• Owner’s manual
