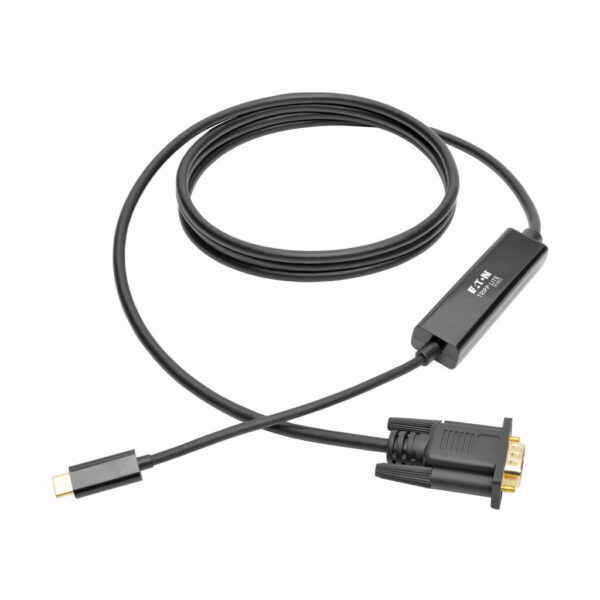

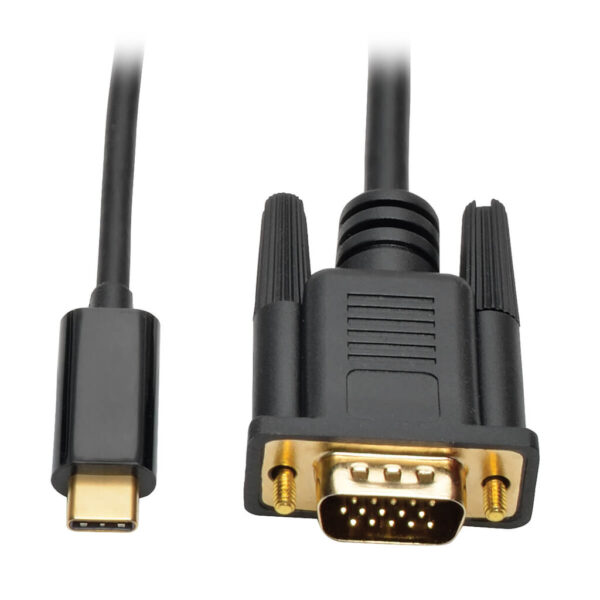

Tripp Lite series USB-C to VGA Active Adapter Cable (M/M), Black, 6 ft. (1.8 m)

Name: Tripp Lite series USB-C to VGA Active Adapter Cable (M/M), Black, 6 ft. (1.8 m)
Brand: Tripp Lite
SKU: U444-006-V
Price: 31.68 CAD
Availability: InStock

$31.68

Brand: Tripp Lite

Part Number (MPN): U444-006-V

UPC / GTIN: 037332202512

Datasheet: PDF

Tripp Lite series USB-C to VGA Active Adapter Cable (M/M), Black, 6 ft. (1.8 m)

Manufacturer Warehouse: 142 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Supports USB DisplayPort Alternate Mode for transmitting video
Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
Reversible USB-C plug connects in either direction
Plug-and-play operation with no software or drivers required

Features

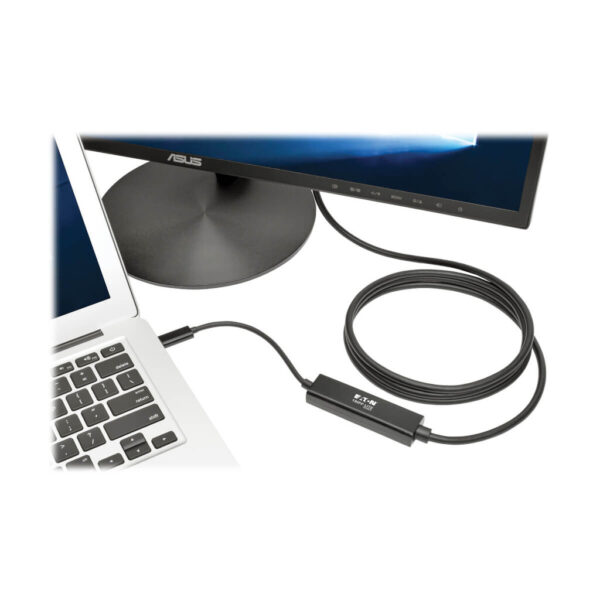

Connects a VGA Display to Your USB-C or Thunderbolt 3 Device

Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps

Common Applications

Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display

Crystal-Clear 1080p Video

Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
Supports 36-bit Deep Color (12 bits per channel)

Reversible USB-C Connector

Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Premium Construction

Gold-plated connectors and contacts for maximum conductivity and minimum data loss
Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
Integral strain relief helps cable and connectors move freely without stress or cracking
Durable PVC jacket designed to last a long time

Ready for Instant Use

Plug-and-play operation with no software, drivers or external power required
6 ft. length easy to manage in crowded environments
Backward compatible with non-1080p displays

System Requirements

Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
Display device with VGA input

Package Includes

U444-006-V USB 3.1 Gen 1 USB-C to VGA Adapter Cable (M/M), 6 ft.

Weight	0.23 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332202512
Cord Length	6
Brand	Tripp Lite
Product Type	Passive Cable
Technology	VGA/SVGA
Cable Type	Passive
Max Supported Video Resolution	1920 x 1200 (1080p)
Bus Powered	Yes
Product Length (in.)	72
Product Length (cm.)	182.88
Product Length (ft.)	6
Product Length (m)	1.83
Battery Charging (5V/1.5A Port)	No
Power Consumption (Watts)	0.6
Side A - Connector 1	USB C (MALE)
Side B - Connector 1	HD15 (MALE)
Connector Plating	Gold
Color	Black
Material of Construction	PVC, ABS
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Jacket Rating	VW-1
Cable Length (m)	1.83
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.10
Unit Packaging Type	Polybag
Unit Weight (kg)	0.10
Operating Temperature Range	32° to 113°F (0° to 45°C)
Storage Temperature Range	14° to 158°F (-10° to 70°C)
BTUs	2.1 BTU/Hr
Operating Humidity Range	10% to 85% RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing
USB Specification	USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
UASP Support	No
Auto MDIX Support	No
Full Duplex Support	No
Suspend Mode Support	No
Remote Wakeup Support	No
Driver Required	No
Product Certifications	UL Listed
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)	3-year limited warranty
