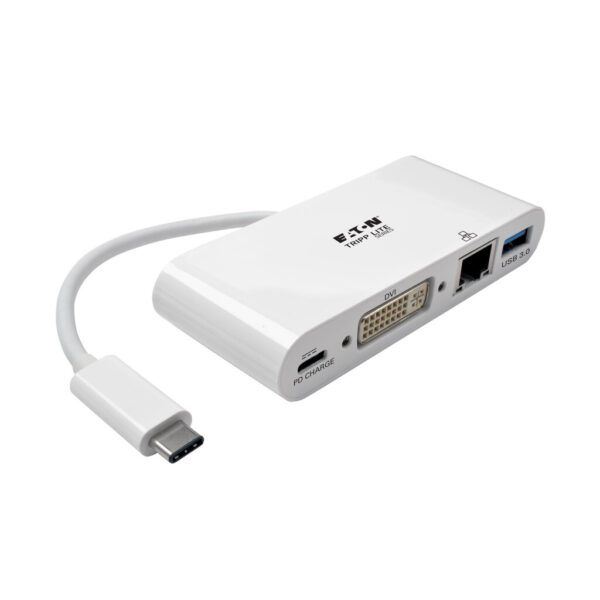

Tripp Lite series USB-C Multiport Adapter, DVI, USB 3.x (5Gbps) Hub Port, Gbe and PD Charging, White

Quick Specs

• Supports USB DisplayPort Alternate Mode for transmitting video
• Supports DVI video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
• Supports true 10/100/1000 Mbps Ethernet network speeds
• PD Charging port supports power input up to 20V 3A
• BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
• Plug-and-play operation with no software or drivers required

Features

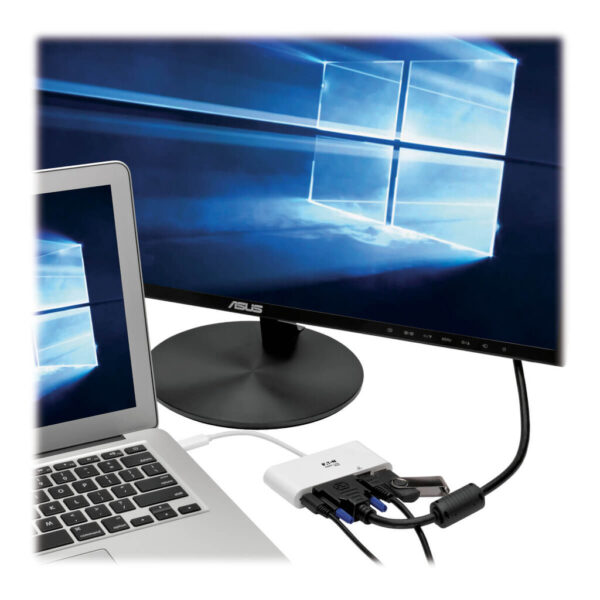

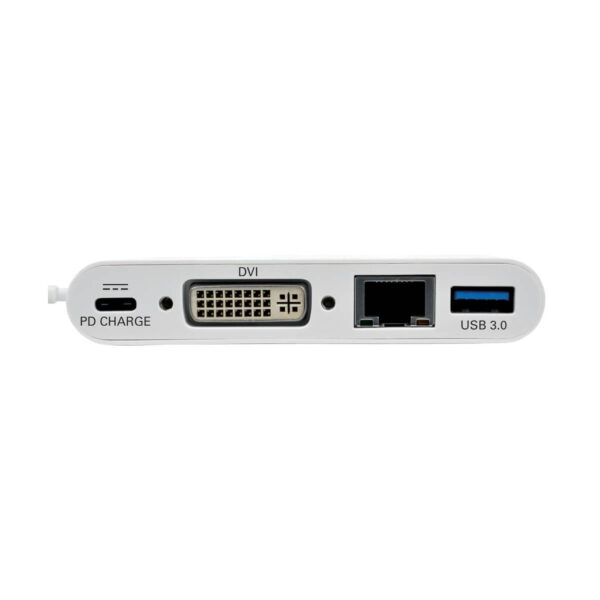

Mini Docking Station Turns Your Device’s USB-C Port into a Multiport Workstation

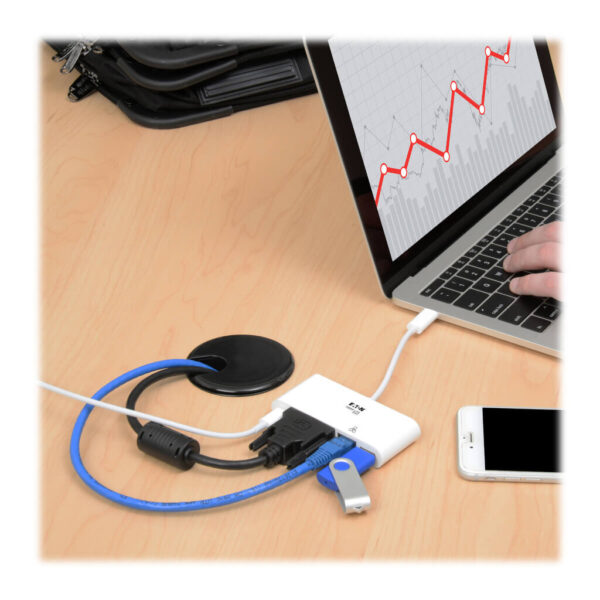

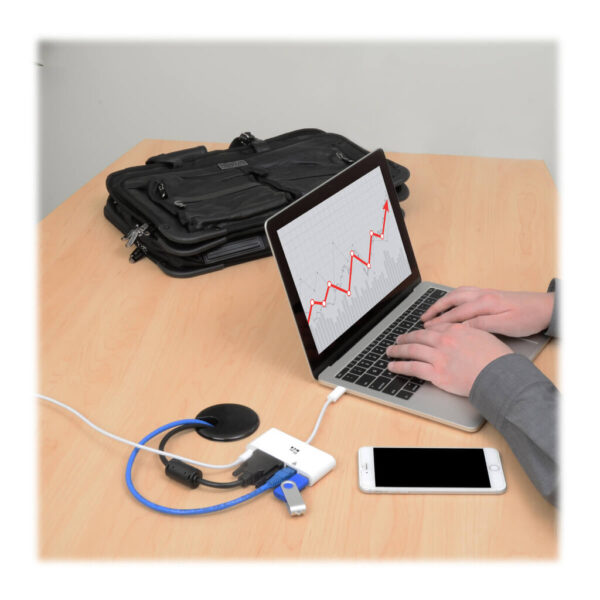

• Ideal for transmitting video to a large display, adding a USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network simultaneously
• Plug-and-play operation with no software, drivers or external power required

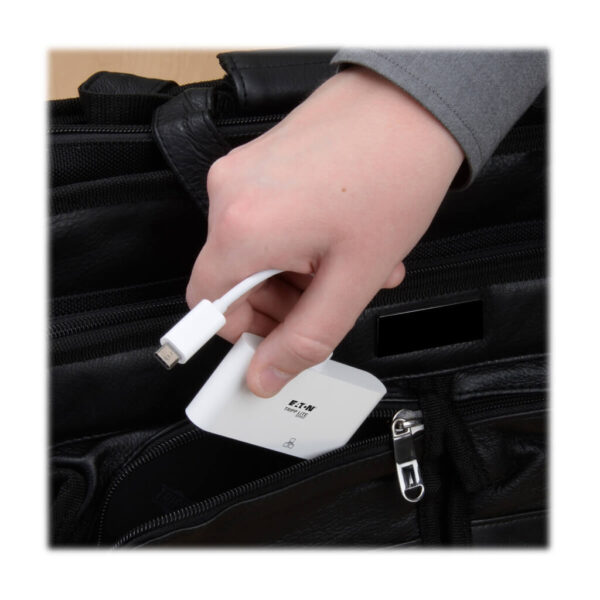

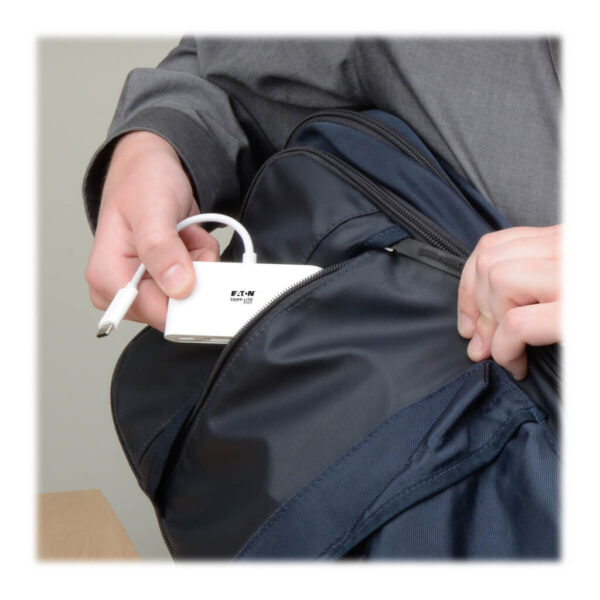

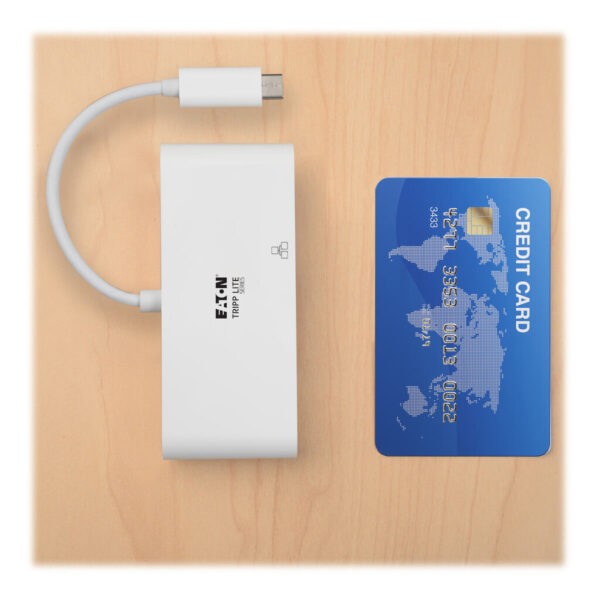

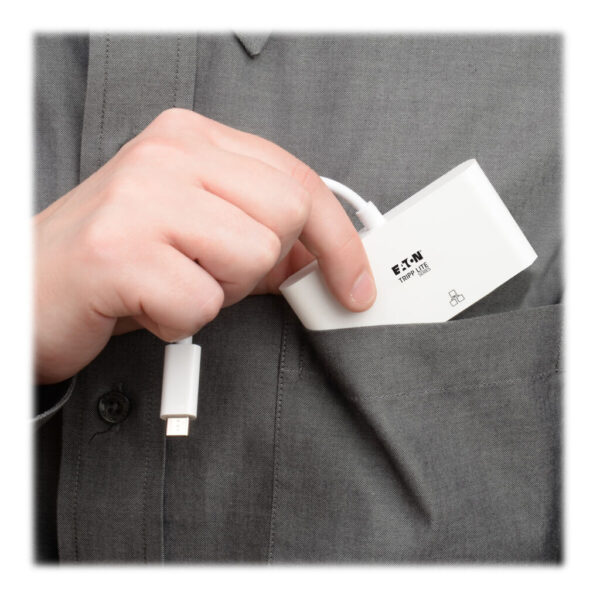

• About the size of a credit card for easy carrying in a pocket, purse or laptop bag

Transmit Crystal-Clear 1080p Video to DVI Display

• Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
• Supports DVI single-link video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
• Supports DVI digital transfer rates up to 6.75 Gbps (2.25 Gbps per channel)
• Extends video from your primary display to another
• Duplicates the same video on 2 displays
• Converts a secondary display to your primary display

Connect a USB Peripheral

• USB-A port accepts flash drives, mice, keyboards, printers and other USB peripherals
• Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
• Backward compatible with USB 2.0 and USB 1.1
• BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices

Note: Host must support USB OTG (On-the-Go)

Charge a Connected Device

• USB-C PD port connects to wall charger to power and charge the connected PD Charging-compliant USB-C/Thunderbolt 3 device
• Supports power input up to 20V 3A (60W)

Note: USB-C PD port does not support Quick Charge (QC).

Access a Wired Gigabit Ethernet Network

• RJ45 port supports true 10/100/1000 Mbps network speeds
• Recommended for a faster wired network connection or getting online when no Wi-Fi is available

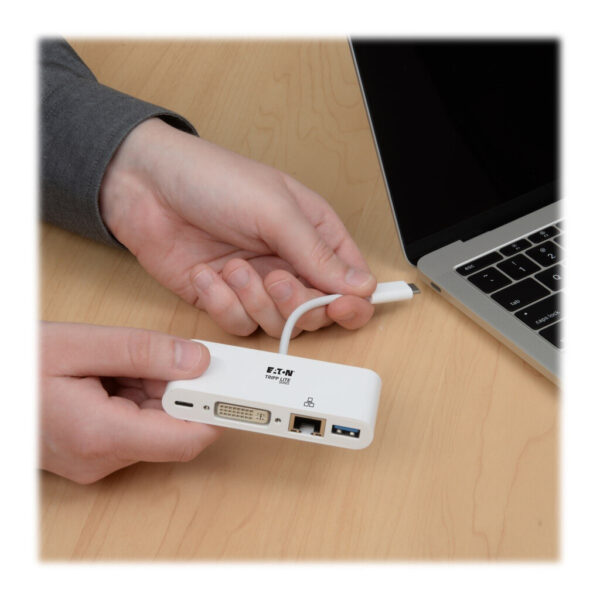

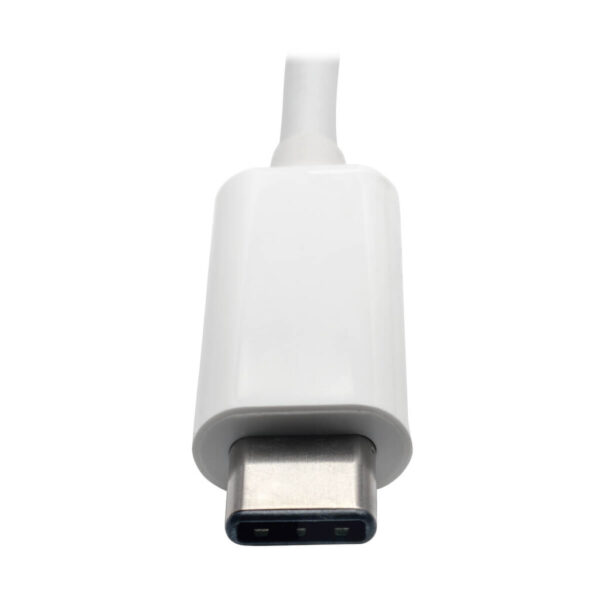

Built-In Cable with Reversible USB-C Connector

• Fumble-free reversible USB-C plug connects in either direction for quick connection every time

System Requirements

• Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
• Display device with DVI input (DVI port)

Package Includes

• U444-06N-DGU-C USB 3.1 Gen 1 USB-C to DVI Adapter
• Owner’s manual
