Tripp Lite series USB 3.2 Gen1 Type-C to HDMI 4K Adapter with Alternate Mode – DP 1.2, White
$32.15
Tripp Lite series USB 3.2 Gen1 Type-C to HDMI 4K Adapter with Alternate Mode – DP 1.2, White
Manufacturer Warehouse: 2,821 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports true UHD video resolutions up to 4K (3840 x 2160) @ 24/25/30 Hz

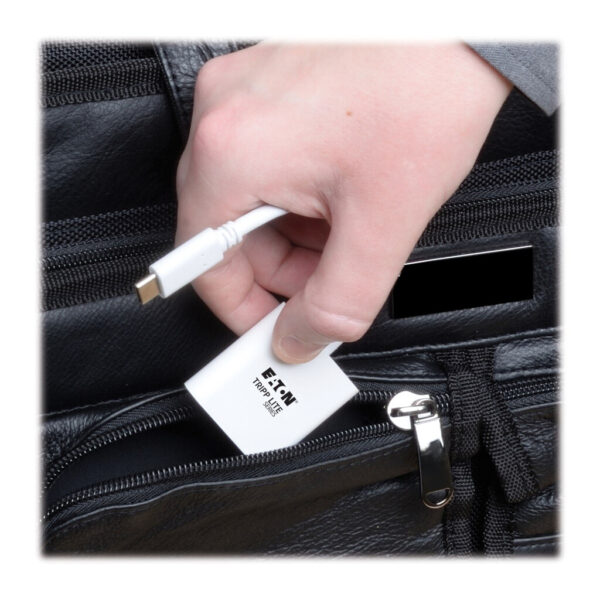

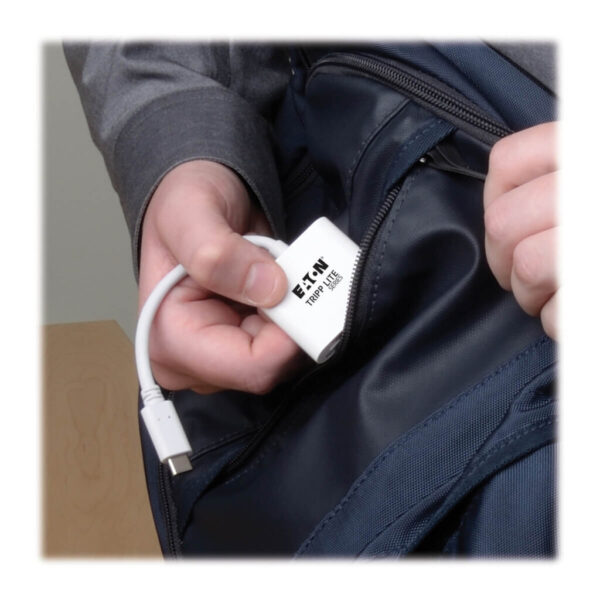

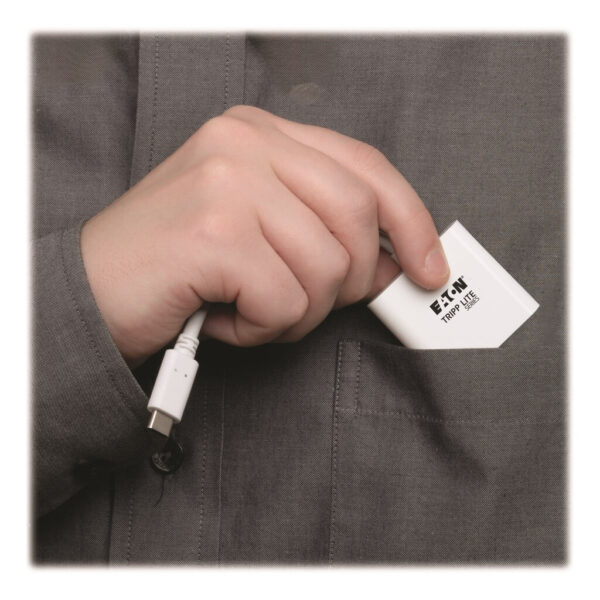

- Compact and easy to carry in a pocket, purse or laptop bag
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
Features

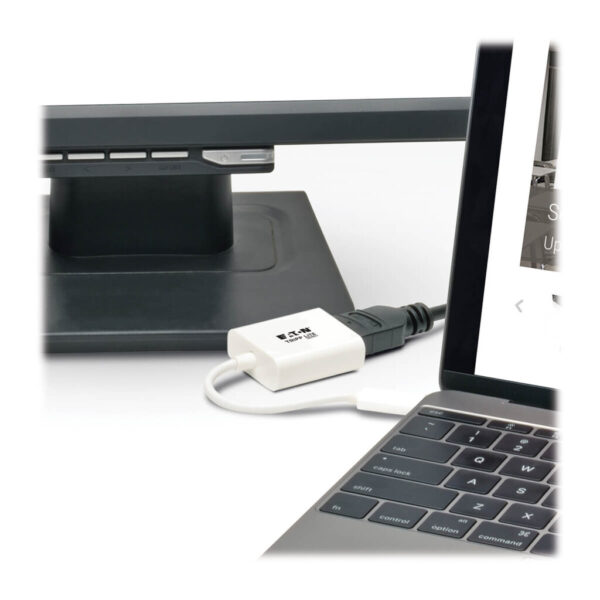

Connects an HDMI Display to Your USB-C or Thunderbolt 3 Device
- Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
- Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Common Applications

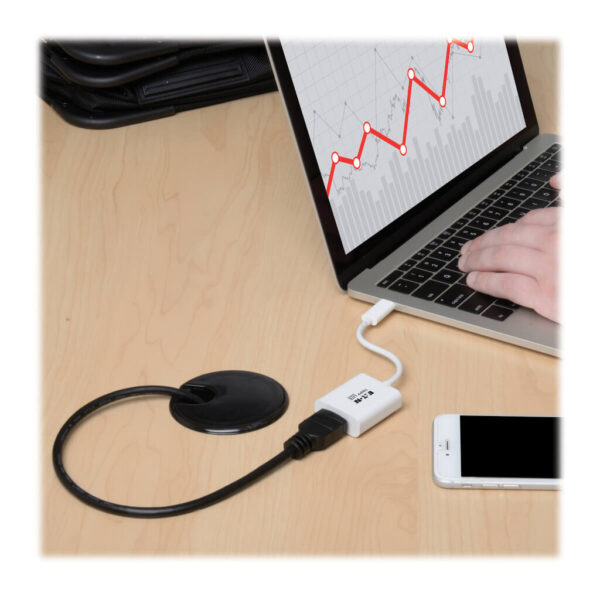

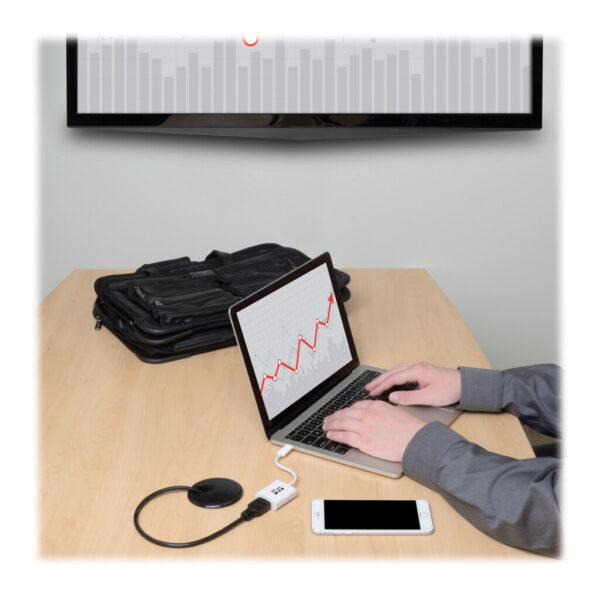

- Extends video from your primary display to another
- Duplicates the same video on 2 displays
- Converts a secondary display to your primary display
Crystal-Clear 4K Video and Digital Audio
- Supports UHD video resolutions up to 3840 x 2160 (4K) @ 24/25/30 Hz
- Supports 36-bit Deep Color (12 bits per channel)
- Supports 7.1 Audio Surround Sound
- Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

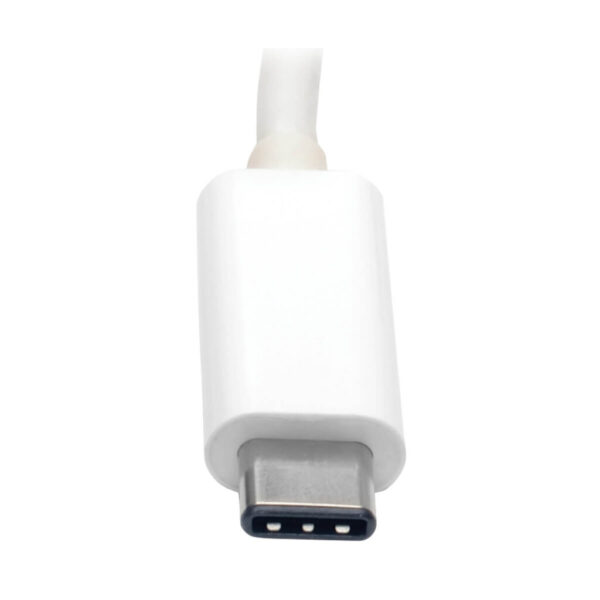

Built-In Cable with Reversible USB-C Connector
- Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Ready for Instant Use
- Plug-and-play operation with no software, drivers or external power required

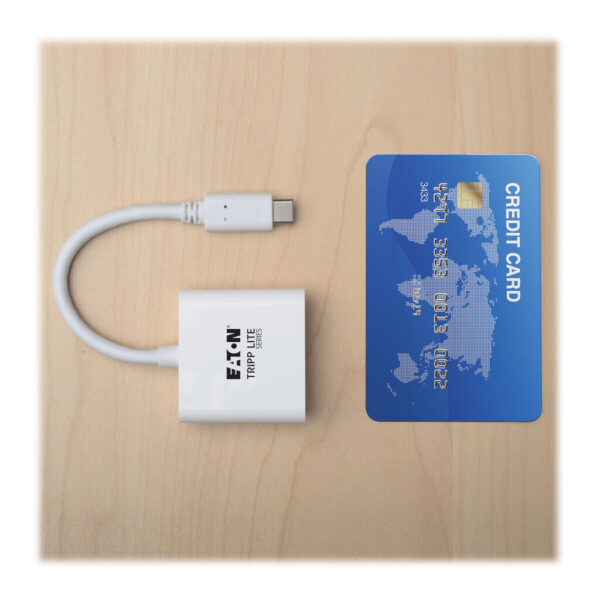

- Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
- Backward compatible with non-4K displays
System Requirements
- Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
- Display device with HDMI input
Package Includes
- U444-06N-HD-AM USB 3.2 Gen 1 USB-C to HDMI 4K Adapter (M/F)
- Quick Start Guide
| Weight | 0.07 lbs |
|---|---|
| Dimensions | 3.94 × 4.72 × 0.79 in |
| UPC Code | 037332189325 |
| Brand | |
| Product Type | USB-C to HDMI Video Adapter |
| Technology | HDMI |
| Host Connector | USB C (MALE) |
| Video Input | USB C (MALE) |
| Video Output | HDMI (FEMALE) |
| Number of Monitors Supported | 1 |
| Video Ports | HDMI (FEMALE) |
| Video Ports Details | HDMI 1.4; HDCP 1.4; DisplayPort 1.2 |
| Supported Resolutions | 1280×720 (720p); 1920×1080 (1080p); 3840×2160 (4K) |
| Max Supported Video Resolution | 3840 x 2160 (4K) @ 24/25/30Hz |
| Max Supported Color Depth | 36-bit Deep Color |
| 3D Video Supported | Yes |
| Chroma Sub Sampling | 4:4:4 |
| DisplayPort Alt Mode | Yes |
| Audio Specification | Supports 7.1 Audio Surround Sound |
| Built-In Cable Length (cm) | 10 |
| Bus Powered | Yes |
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Color | White |
| Material of Construction | PVC, ABS |
| Cable Jacket Color | White |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 3.9mm |
| Number of Displays | 1 |
| Shipping Dimensions (hwd / cm) | 2.01 x 11.99 x 10.01 |
| Shipping Weight (kg) | 0.03 |
| Unit Packaging Type | Box |
| Unit Weight (kg) | 0.02 |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Storage Temperature Range | 14° to 158°F (-10° to 70°C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
| USB Specification | USB 3.2 Gen 1 (up to 5 Gbps) |
| HDCP Specification | 1.4 |
| Driver Required | No |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
