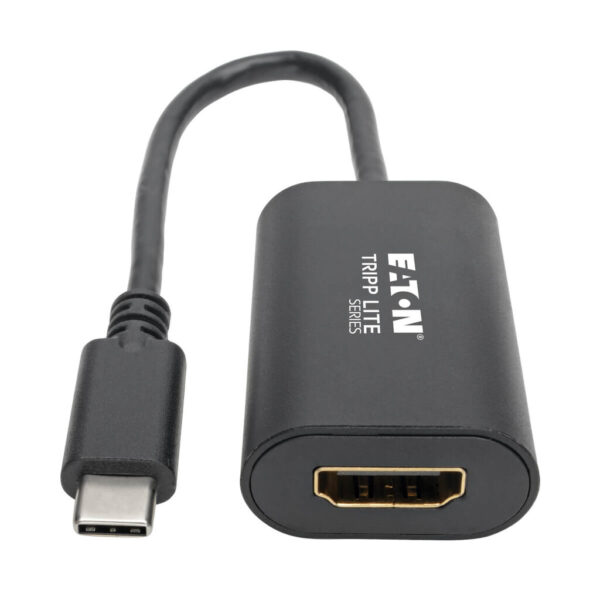

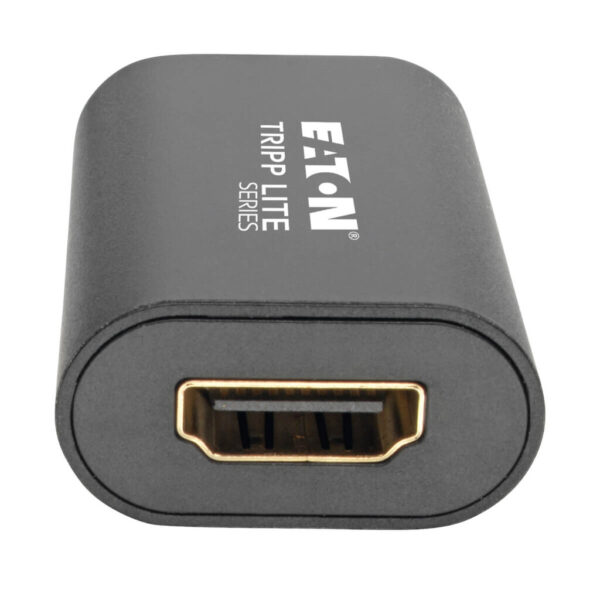

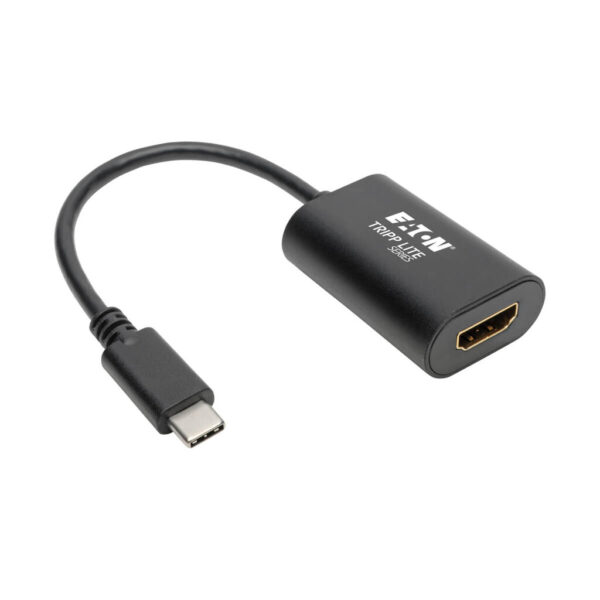

Tripp Lite series USB-C to HDMI Adapter (M/F) – 4K 60 Hz, HDCP 2.2, Black
$40.38
Tripp Lite series USB-C to HDMI Adapter (M/F) – 4K 60 Hz, HDCP 2.2, Black
Toronto Stock: 55 available
Manufacturer Warehouse: 1,499 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD resolutions up to true 4K @ 60 Hz for crystal-clear video
- Supports 7.1-channel surround sound
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
Features
Connects an HDMI Display to Your USB-C or Thunderbolt 3 Device
- Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
- Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
- Meets HDCP 2.2 specifications
Common Applications

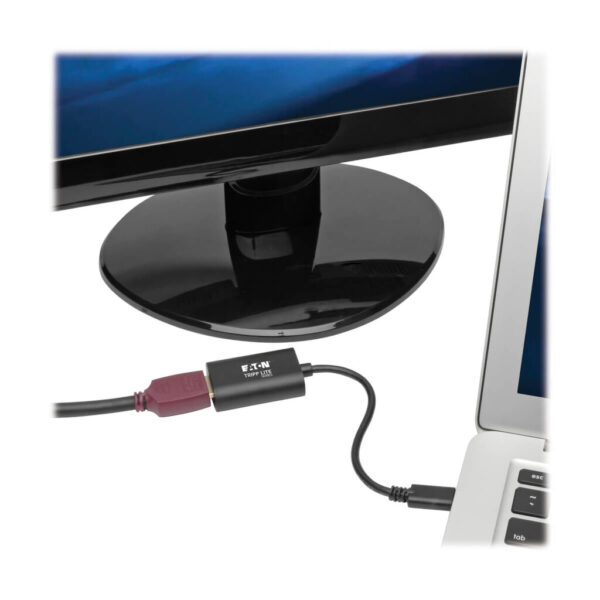

- Extends video from your primary display to another
- Duplicates the same video on 2 displays
- Converts a secondary display to your primary display
Crystal-Clear True 4K Video and Digital Audio
- Supports UHD video resolutions up to 4K x 2K (4096 x 2160) @ 60 Hz, as specified in HDMI 2.0
- Supports 24-bit Deep Color (8 bits per channel)
- Supports 7.1-channel surround sound
- Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

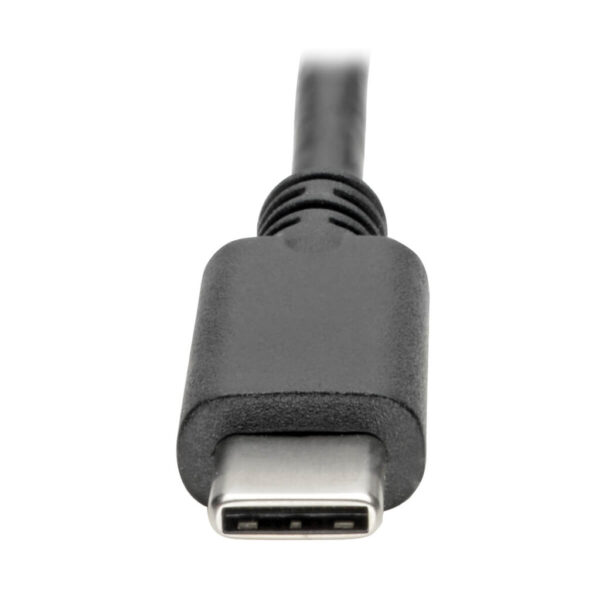

Built-In Cable with Reversible USB-C Connector
- Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Ready for Instant Use
- Plug-and-play operation with no software, drivers or external power required
- Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
- Backward compatible with non-4K displays
System Requirements
- Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
- Display device with HDMI input
Package Includes
- U444-06N-HD4K6B USB 3.2 Gen 1 USB-C to HDMI 4K Adapter (M/F)
- Owner’s manual
| Weight | 0.11 lbs |
|---|---|
| Dimensions | 3 × 5.71 × 1.06 in |
| UPC Code | 037332203366 |
| Number of Ports | 1 |
| Brand | |
| Product Type | Video Adapter |
| Technology | HDMI |
| Host Connector | USB C (MALE) |
| Video Input | USB C (MALE) |
| Video Output | HDMI (FEMALE) |
| Number of Monitors Supported | 1 |
| Video Ports | HDMI (FEMALE) |
| Video Ports Details | HDMI 2.0; HDCP 1.4; HDCP 2.2 |
| Supported Resolutions | 1280×720 (720p); 1920×1080 (1080p); 3840×2160 (4K) |
| Max Supported Video Resolution | 4096 x 2160 (4K X 2K) @ 60Hz |
| Extended Mode | No |
| Mirror Mode | Yes |
| Mirror Mode Details | Mirrors video from source device at resolutions up to 4K/60 Hz (3840 x 2160) @ 60 Hz as specified in HDMI 2.0 |
| Max Supported Color Depth | 36-bit Deep Color |
| HDR Support | Yes |
| 3D Video Supported | Yes |
| EDID Support | No |
| Audio Specification | 7.1 Channel Surround Sound |
| Built-In Cable Length (m) | 0.15 |
| Bus Powered | Yes |
| Product Length (in.) | 6 |
| Product Length (cm.) | 15.24 |
| Product Length (ft.) | 0.5 |
| Product Length (m) | 0.15 |
| Battery Charging (5V/1.5A Port) | No |
| Power Consumption (Watts) | 0.68 |
| USB Power Delivery (PD) Charging Support | No |
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Color | Black |
| Material of Construction | ABS |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 4.0mm |
| Shipping Dimensions (hwd / cm) | 2.69 x 14.50 x 7.62 |
| Shipping Weight (kg) | 0.05 |
| Unit Dimensions (hwd / cm) | 1.498 x 2.946 x 4.495 |
| Unit Packaging Type | Box |
| Unit Weight (kg) | 0.02 |
| Operating Temperature Range | -4° to 158°F (-20° to 70°C) |
| Storage Temperature Range | -4° to 185°F (-20° to 85°C) |
| Relative Humidity | 20% to 80% RH, Non-Condensing |
| BTUs | 2.3 BTU/Hr |
| USB Specification | USB 3.2 Gen 1 (up to 5 Gbps) |
| Multi-Resolution Support | Yes |
| UASP Support | No |
| Auto MDIX Support | No |
| Full Duplex Support | No |
| Suspend Mode Support | No |
| Remote Wakeup Support | No |
| HDCP Specification | 2.2 |
| Driver Required | No |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
