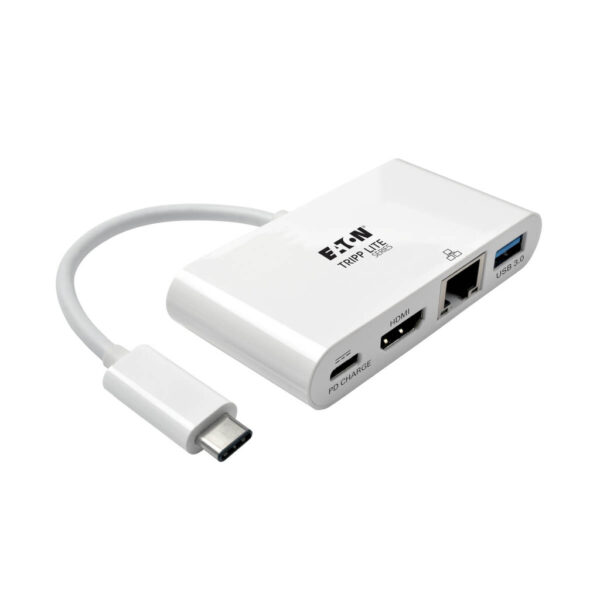

Tripp Lite series USB-C Multiport Adapter – HDMI, USB 3.x (5Gbps) Hub Port, Gigabit Ethernet, 60W PD Charging, HDCP, White

Quick Specs

• Supports USB DisplayPort Alternate Mode for transmitting audio/video
• Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
• Supports true 10/100/1000 Mbps Ethernet network speeds
• USB-C Power Delivery (PD) port supports 20V 3A (60W) power output for charging host device
• Plug-and-play operation with no software required for easy, immediate installation

Features

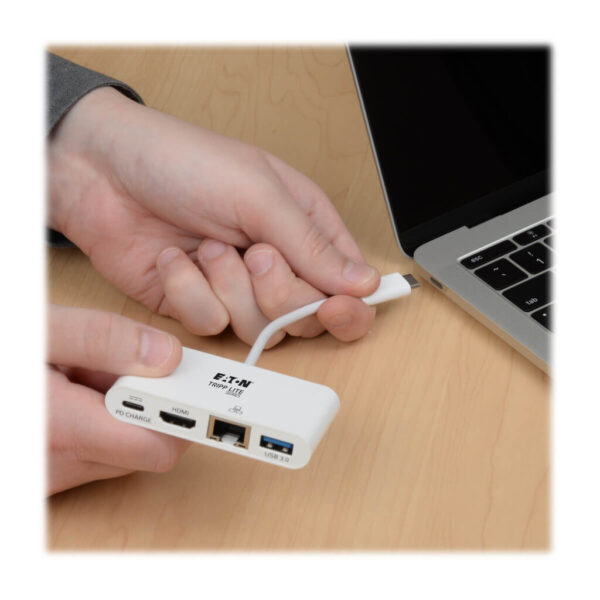

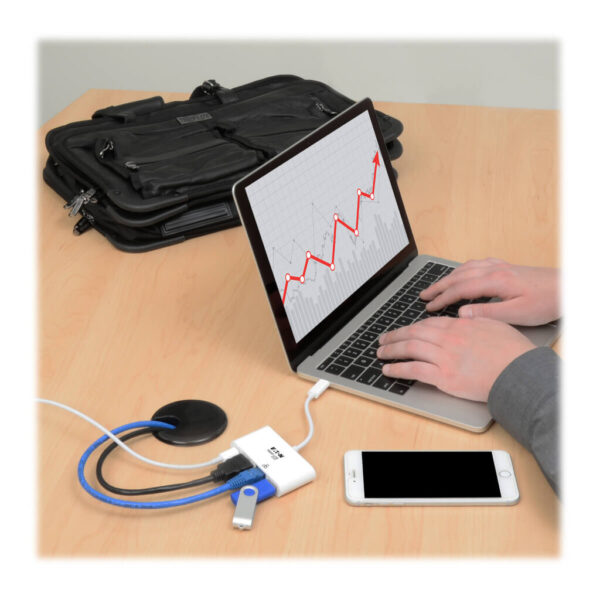

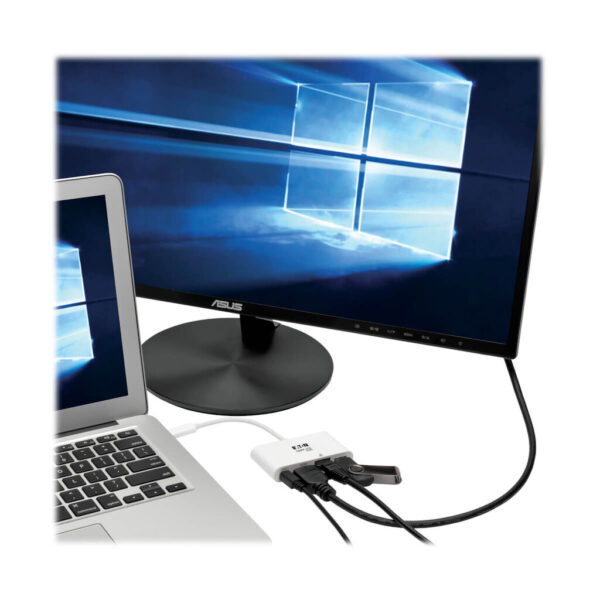

Multiport Adapter Turns Your Device’s USB-C Port into a Multifunction Workstation

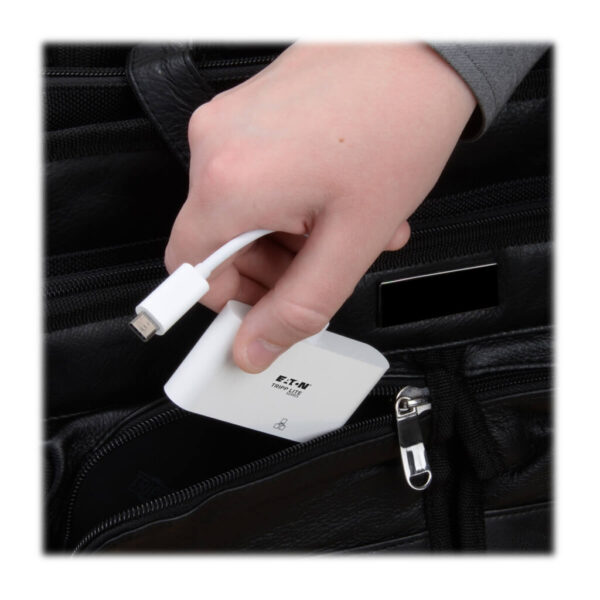

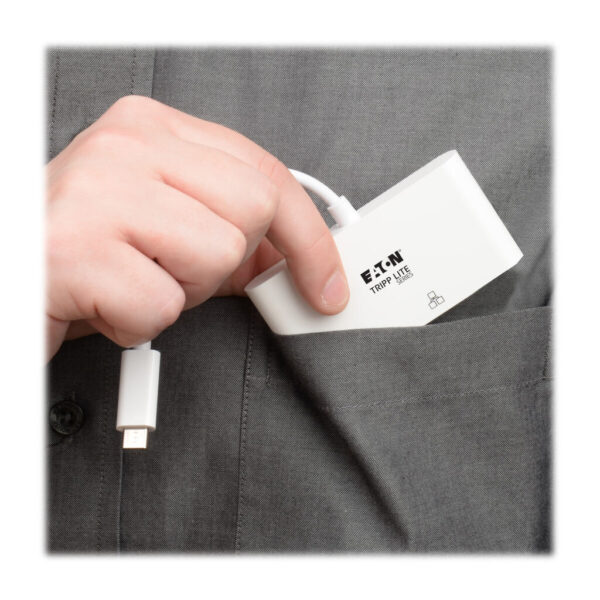

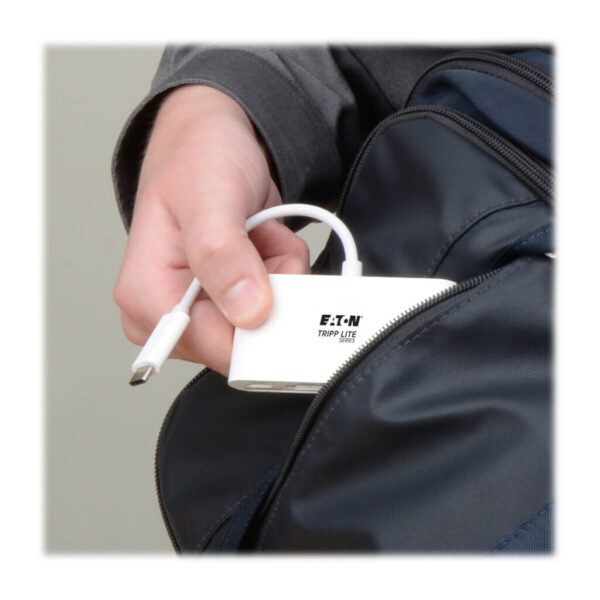

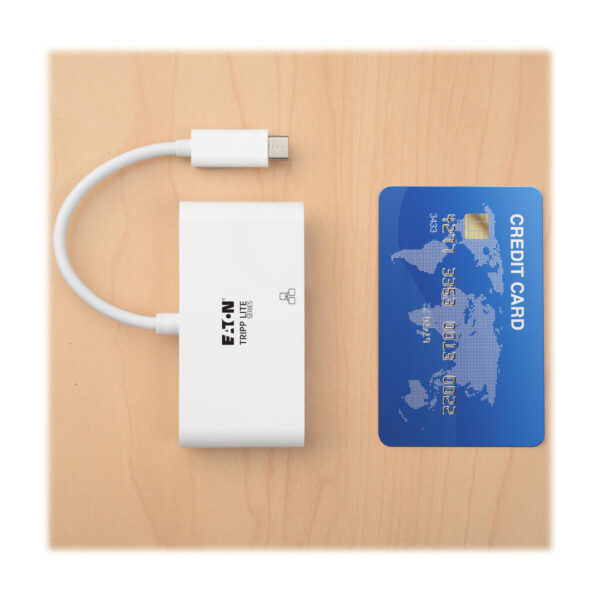

The U444-06N-HGU-C is ideal for transmitting audio/video to a large display, adding a USB peripheral, powering and charging a PD Charging-compliant device, such as the host laptop, and connecting to a Gigabit Ethernet network simultaneously. The adapter is plug-and-play, with no software, drivers or external power required. About the size of a credit card, it is easy to carry in a pocket, purse or laptop bag.

Transmit Crystal-Clear 1080p Video and Digital Audio to HDMI Display

Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode for transmitting video to a connected display. The adapter supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz, and is capable of extending a desktop from the host to a connected HDMI display or duplicating video output in mirror mode.

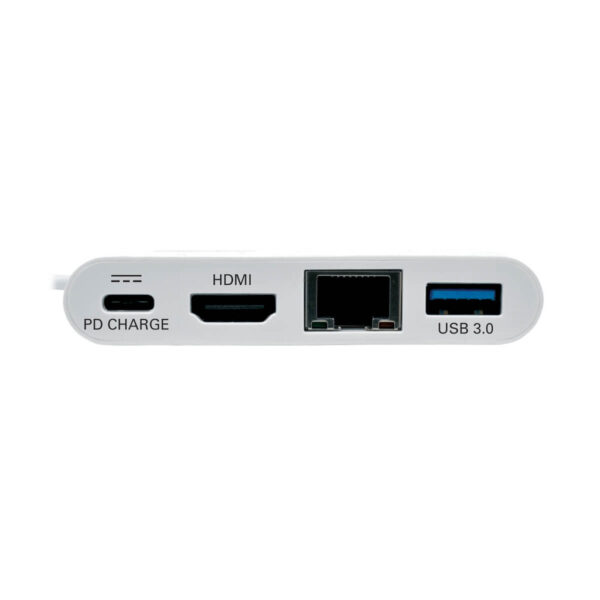

Connect a USB Peripheral or Charge a Mobile Device

The USB-A port accepts flash drives, mice, keyboards, printers and other USB peripherals with USB 3.2 Gen1 data transfer rates up to 5Gbps. The port is backward compatible with previous USB generations including USB 2.0 and USB 1.1. The port also provides up to 5V/1.5A (7.5W) for quickly charging mobile devices. Note: the host must support USB OTG (On-the-Go).

Charge the Host with 60 Watts of Power

USB-C PD port connects to a wall charger to power and charge the connected PD Charging-compliant USB-C/Thunderbolt 3 host. It supports power input up to 20V 3A (60W), which is enough to charge most laptops, tablets and smartphones. Note: it does not support Quick Charge (QC).

Connect to a Wired Gigabit Ethernet Network

The RJ45 port supports true 10/100/1000 Mbps network speeds for connecting to a wired Gigabit Ethernet network when Wi-fi is not available or the connection is spotty.

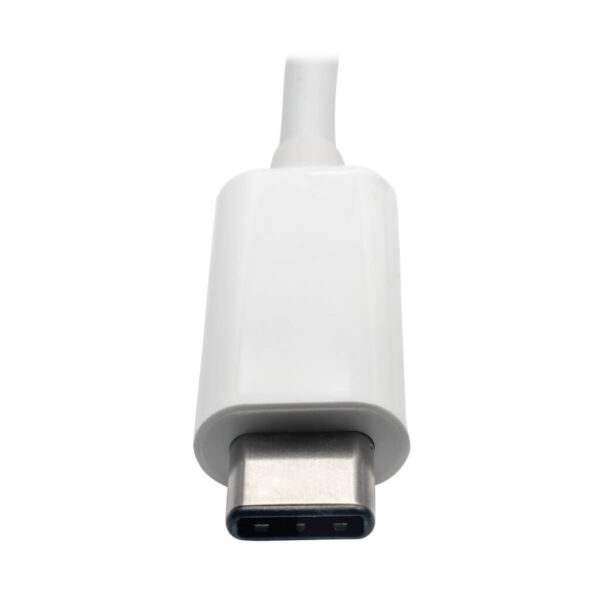

Built-In Cable with Reversible USB-C Connector

Fumble-free reversible USB-C plug connects in either direction for quick connection every time.

System Requirements

• Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
• Display device with HDMI input (HDMI port)

Note: The USB-A port may sometimes malfunction when the U444-06N-HGU-C is used with a Chromebook OS host, typically in the form of a small delay in functionality when connecting a USB peripheral, such as a mouse. This is due to incompatibility with ChromeOS and is not a malfunction of the product itself.

Package Includes

• U444-06N-HGU-C USB-C Multiport Adapter
• Owner’s manual
