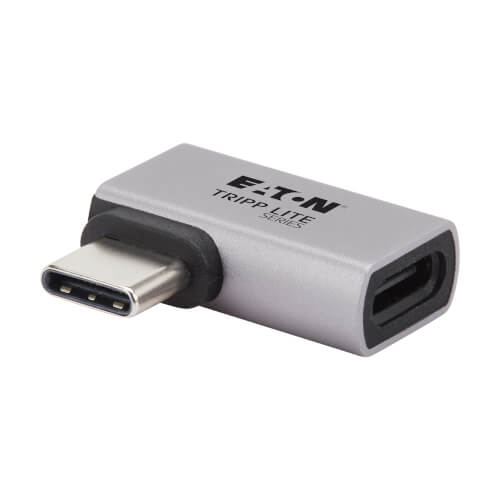

Tripp Lite series USB4 Right-Angle Adapter (M/F) – 8K 60 Hz or 4K 120 Hz Video, 40 Gbps Data, 240W PD Charging, Thunderbolt 4 Compatible

Quick Specs

• Connects smartphones, media servers and other USB devices to your computer
• Low-profile right-angle design helps reduce wear and tear on USB cables
• Supports USB4 up to 40 Gbps and Thunderbolt 4 for connecting data-intensive devices
• Supports 8K 60 Hz or 4K 120 Hz with DisplayPort 1.4 Alt Mode video passthrough
• Plug-and-play operation with no software required for easy, immediate installation

Features

Space-Saving USB4 Adapter Connects a USB-C Cable at a Right Angle
The U521-000-F-RA converts a standard USB-C port to a low-profile 90-degree angle while preserving full USB4 (up to 40 Gbps) and Thunderbolt 4 host compatibility. The compact right-angle design enables closer placement to walls, rack panels, and mounting surfaces, and helps minimize cable strain in high traffic or space constrained deployments.

Maintains Full USB4 Functionality
Built for USB4 40 Gbps connections, this USB adapter supports high throughput data paths and tunneled DisplayPort signaling to ensure docks, NVMe enclosures, capture devices and other performance sensitive peripherals operate at intended bandwidths. The adapter is backward compatible with USB 3.2 and USB 2.0 specifications, so you can connect legacy devices. Note: Performance depends on the combined capabilities of the host, cable and device.

Supports 8K and High-Refresh 4K Video
When used with a DisplayPort 1.4 (HBR3) source and DSC-capable display, the U521-000-F-RA supports 8K at 60 Hz or 4K at 120 Hz. USB4 display tunneling ability makes it an ideal adapter for USB4/Thunderbolt docking stations, video conferencing equipment, gaming displays, and high resolution workflows. Note: DP Alt Mode at 8K/60 Hz or 4K/120 Hz typically uses all four DisplayPort lanes, reducing USB data fallback to USB 2.0. For simultaneous high bandwidth data and video, a USB4 host port is recommended.

5A Pass-Through Charging for Pro Laptops and Docks
The adapter supports up to 240W USB-C Power Delivery (PD 3.1 EPR) passthrough for quickly charging high-performance laptops and workstations when used with 5A EPR-capable charging cables and power adapters. It’s universally compatible with USB-C PD charging devices and automatically negotiates down to PD 3.0 and below (<100W) for non-EPR equipment.

Ready to Use Right Out of the Package
The plug-and-play adapter preserves USB4 signals across a wide range of laptops, computers, cables, hard drives, displays and other compatible devices, including the MacBook Pro, iPad, iPhone, Precision and ThinkPad. It requires no drivers or external power. It is small enough to carry in your pocket, purse, briefcase or laptop bag, so you’ll always be ready to connect wherever you are.

System Requirements

• 240W charging requires a PD 3.1 EPR (Extended Power Range) charger and device and a 5A EPR-rated (E-Marker) USB-C cable. Otherwise, charging is limited to 100W or less.
• 8K/60 Hz or 4K/120 Hz video requires a host capable of DP 1.4 Alt Mode with DSC (HBR3), DSC-capable display and matching cabling.
• When using 8K/60 or 4K/120 through regular DP Alt Mode, USB data speeds may drop to USB 2.0. For full video + data performance at the same time, use a USB4 host port.

Package Includes

U521-000-F-RA USB4 Right-Angle Adapter (M/F)
