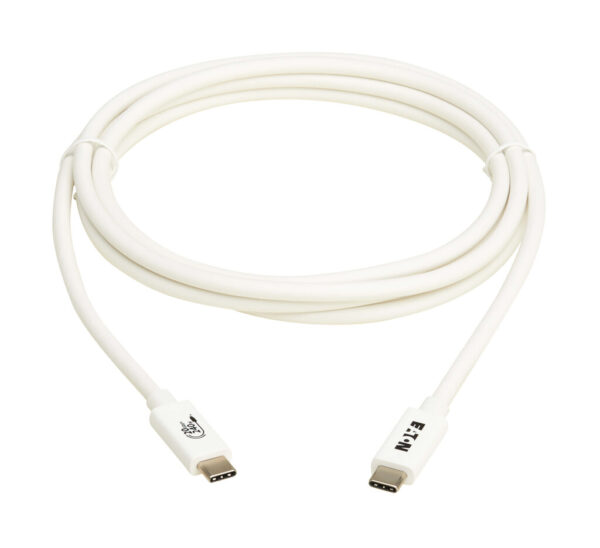

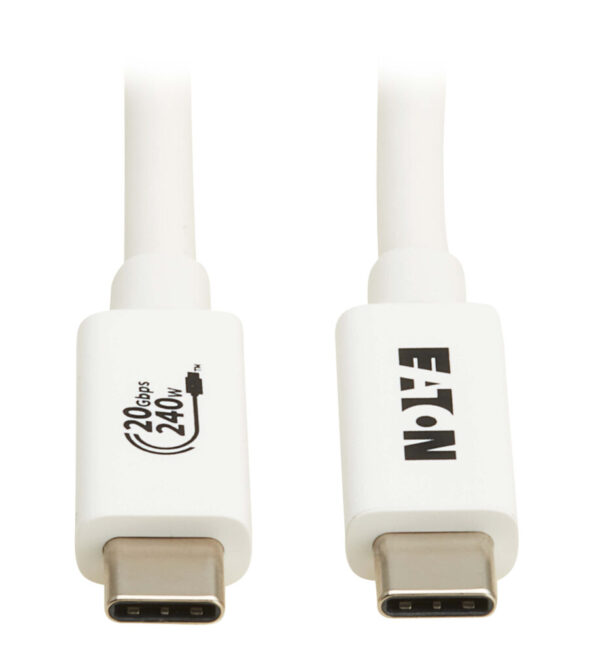

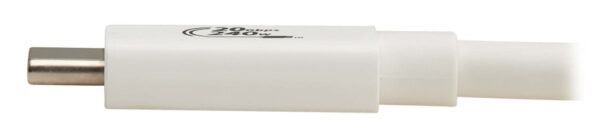

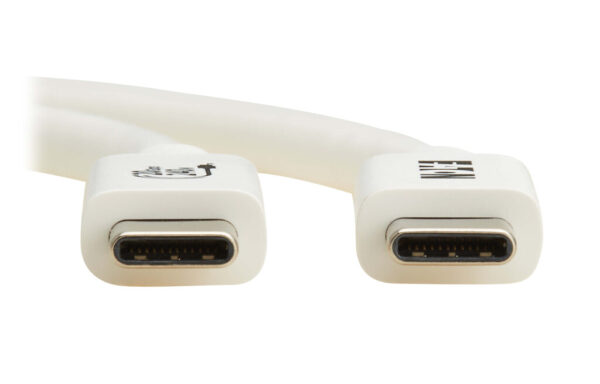

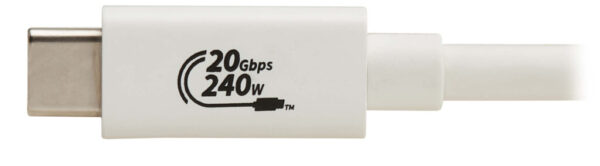

Tripp Lite series USB4 20Gbps Cable (M/M) – USB-C, 4K 60 Hz, 240W PD Charging, White, 2 m (6.6 ft.)

Quick Specs

• Transfers video and data files at speeds up to 20 Gbps – 4x faster than USB 3.0
• Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
• Connects a single 4K/60 Hz display with 24-bit True Color, HDR and 4:4:4
• Supports up to 240W EPR power output for charging high-powered devices
• Backward compatible with USB 3.x, USB 2.0 and legacy Thunderbolt 3 devices

Features

USB4 Cable Streams Video and Processes Data at 20 Gbps, 4x Faster Than USB 3.0
This USB4 20Gbps cable (M/M) transmits across two bidirectional lanes, supporting speeds up to 20 Gbps, which is four times faster than USB 3.0/3.1/3.2. Unlike previous USB generations, the USB4 20Gbps cable has the ability to allocate resources. Instead of splitting video and data equally between its two lanes, the U521-1P0M-WH20G allows the connected display as much bandwidth as it needs, while saving all remaining bandwidth for high-speed data transfers. This makes the cable perfectly suited for 4K video streaming and editing.

Supports DisplayPort Alternate Mode for Unidirectional 20 Gbps Video Connections
By connecting a 4K display to a host device that supports DisplayPort Alt Mode 1.4, this cable can use both high-speed lanes to transmit 4K video at 60 Hz in one direction at 20 Gbps maximum speed with 24-bit True Color, HDR and 4:4:4 chroma subsampling.

Backward Compatible with Legacy USB and Thunderbolt 3 Devices
Though both connected devices must support USB4 20Gbps for the cable to reach its full potential, the U521-1P0M-WH20G is backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices. It connects two USB-C devices, including MacBooks, Chromebooks, Windows laptops, Kindles, game consoles, smartphones, external storage devices, docking stations and wall chargers. It is compatible with all USB-C and Thunderbolt 3 devices, enabling use in existing installations while preparing for future upgrades.

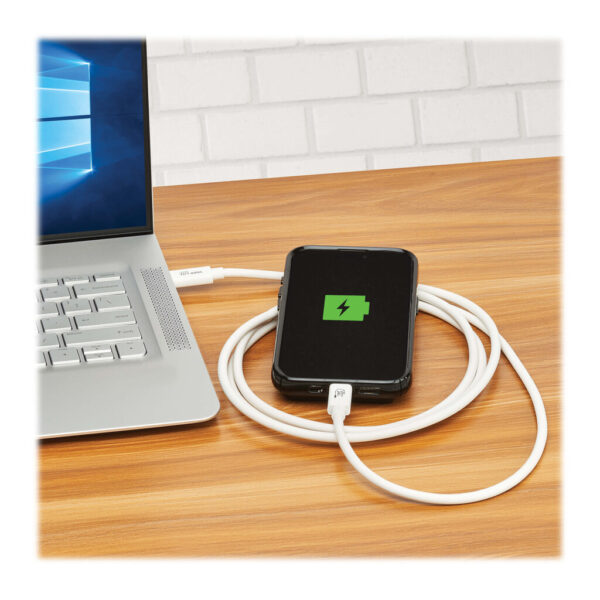

240W EPR Charging Cable Keeps the Connected Notebook, Laptop or Other Device at Capacity
The U521-1P0M-WH20G supports Power Delivery (PD) 3.1 and Extended Power Range (EPR) charging of the connected PD Charging-compliant device. It carries power output up to 48V 5A (240W), which is sufficient for fast-charging and powering your MacBook or other mobile device, including the latest iPhone and other smartphones with a USB-C connector. The built-in E-Mark chip ensures a safe and reliable charging connection between the power source and device.

USB-IF Certification Ensures Rigorous Testing and Top-of-the-Line Performance
This cable meets the high standards of USB-IF (USB Implementers Forum, Inc.), a non-profit organization consisting of companies that developed the USB specification. Receiving USB-IF certification means the U521-1P0M-WH20G meets the industry’s highest environmental, mechanical and electrical standards. It operates with your USB peripherals, adapters and cables with top efficiency and safety.

System Requirements

• Devices with USB-C or Thunderbolt 3 ports (USB4 20Gbps compatibility required to achieve USB4 20Gbps performance)
• DP 1.4 Alt Mode required for maximum video output capability (4K/60Hz)
• 240W PD Charging output is supported, but the actual charging performance of a connected device is dictated by the maximum power draw of the device itself

Package Includes

U521-1P0M-WH20G USB4 20Gbps Cable (M/M), White, 2 m (6.6 ft.)
