Tripp Lite series USB-A to Serial Adapter Hub (DB9) – Keyspan, High-Speed (M/M), 4-Port, TAA

Quick Specs

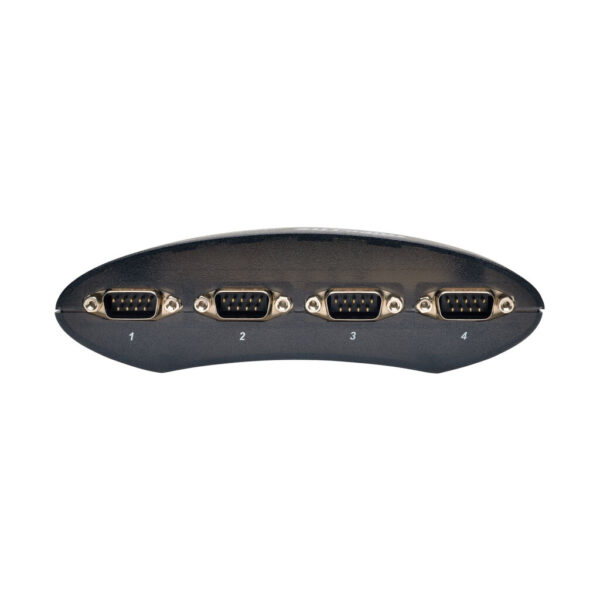

• Connects up to four DB9 serial devices to a computer USB-A port
• Supports data transfer speeds up to 460 Kbps
• Detachable 6-foot USB cable included
• No external power source required
• Works with Windows (XP and later) and Mac OS X (10.6 through 10.13)

Overview

The USA-49WG Keyspan® High-Speed 4-Port USB-to-DB9-Serial Adapter Hub allows you to connect as many as four 9-pin serial devices to a computer or laptop with a USB Type-A port. An easy and inexpensive way to add serial ports to your computer without hassle, the USA-49WG works with any DB9 serial device. Configuring and sharing data among multiple modems, GPS devices, cellphones, hand-held scanners, point-of-sale systems, touch screens, medical and scientific instruments, industrial process control devices and UPS systems is a breeze.

The included 6-ft. (1.83 m) cable supports data transfer speeds up to 460 Kbps—four times as fast as a built-in serial port. Five LEDs display port status at a glance. The USA-49WG requires no external power. Windows line monitor and data trace software included. Works with Windows (XP and later) and Mac OS X (10.6 through 10.13).

Features

Operate 4 DB9 Serial Devices Simultaneously

• Connects to networking equipment, modems, GPS devices, cellphones, hand-held scanners, point-of-sale systems, touch screens, medical and scientific instruments, industrial process control devices, UPS systems and other devices with a 9-pin serial port
• Supports data transfer speeds up to 460 Kbps—4 times as fast as a built-in serial port

Easy to Set Up and Use

• No external power supply needed
• Includes detachable 6-ft. (1.83 m) USB cable
• Can use with USB cable up to 16-ft. (4.88 m) long

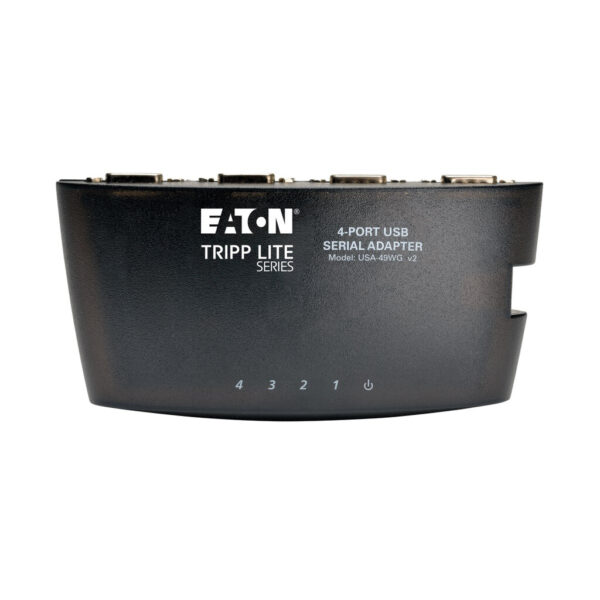

• 5 LEDs display port status at a glance

Compatible with Most Systems

• Works with Windows (XP and later) and Mac OS X (10.6 through 10.13)
• Includes Windows line monitor and data trace software

System Requirements

• USB port
• Compatible with Windows 2000, XP, Vista, 7, 8, 8.1, 10, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016
• Compatible with Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13

Package Includes

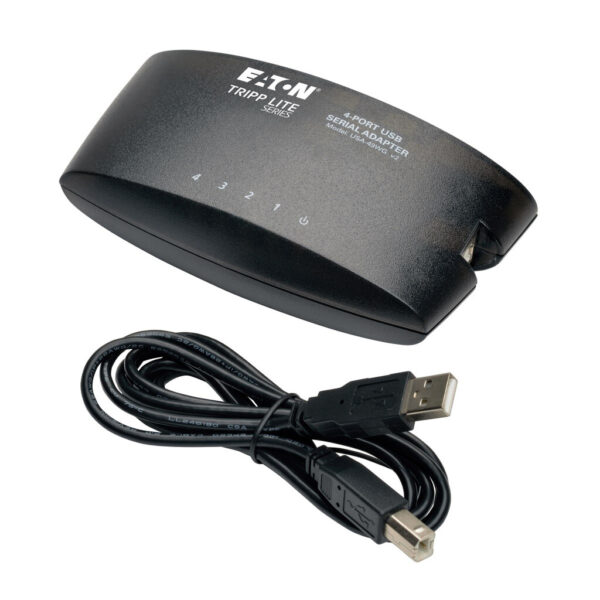

• USA-49WG USB-A to Serial Adapter Hub (DB9) – Keyspan, High-Speed (M/M), 4-Port
• USB cable, 6-ft. (1.83 m)length
• Owner’s Manual
