Connects to select expandable Eaton 9PX UPS systems to add critical runtime
Includes heavy-gauge battery cabling with high-current 48V DC connectors
Daisy-chain connector supports additional battery packs for even longer runtime
Features

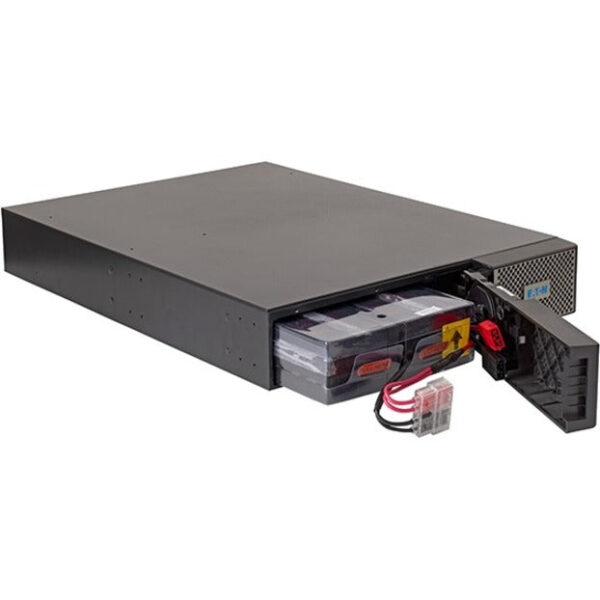

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime The valve regulated lead acid 9PXEBM48RT offers extended battery runtime when used in conjunction with Eaton’s 9PX1000GRT, 9PX1500RT, 9PX1500RTN and 9PX1500GRT 9PX UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

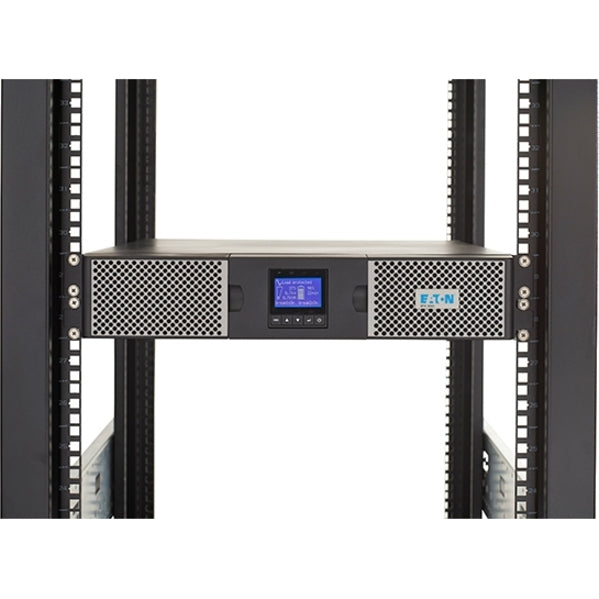

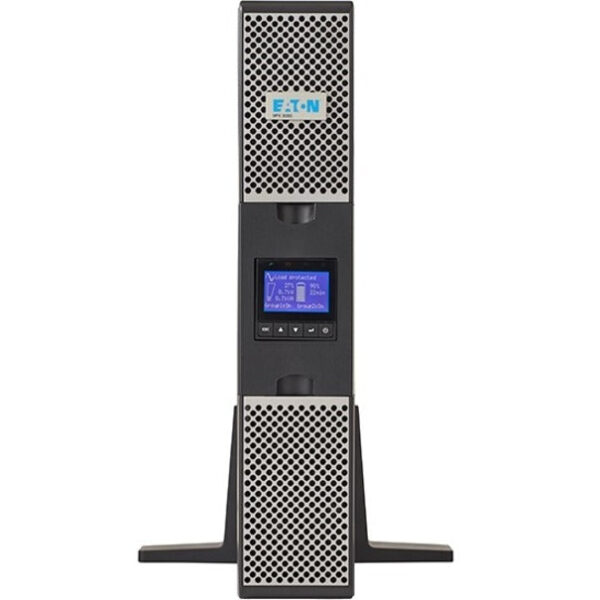

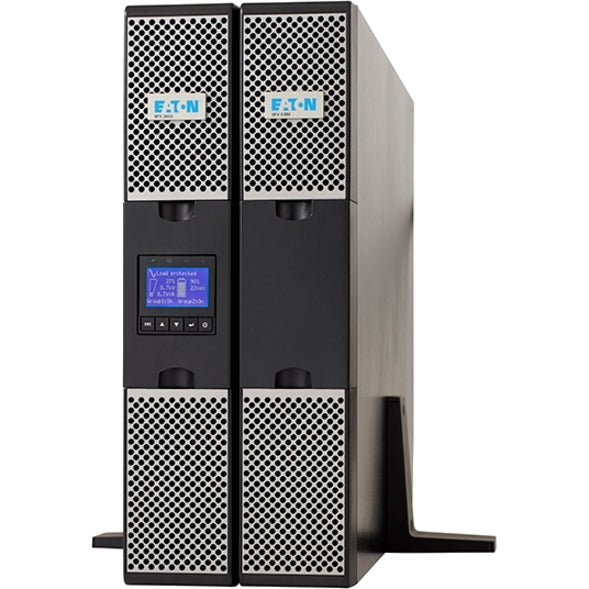

Versatile Installation Options You can mount the 9PXEBM48RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands.
System Requirements
Compatible only with Eaton’s 9PX1000GRT, 9PX1500RT, 9PX1500RTN and 9PX1500GRT UPS systems

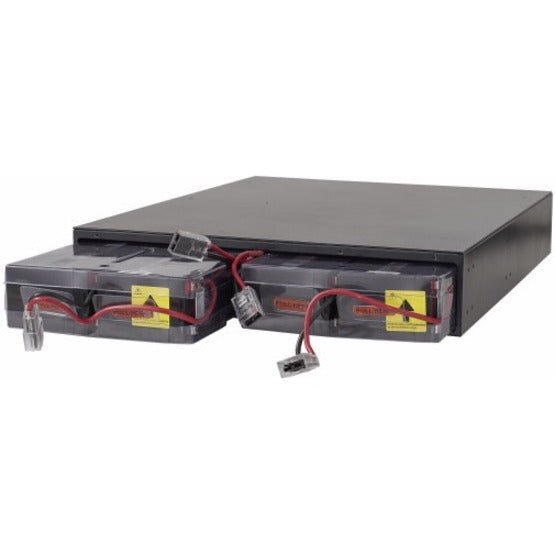

Hot-swappable, user replaceable batteries. EBM requires 2 Replacement Battery Cartridges.
Battery Management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Primary Form Factor
Rackmount; Tower
Color
Black; Silver
Rack Height
2U
External Battery Pack Form Factor
Rack/Tower
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( RK2PC )
Minimum Required Rack Depth (cm)
53.34
Unit Weight (kg)
26.99
Operating Temperature Range
32° to 104°F (0° to 40°C)
Relative Humidity
0-96% non-condensing
Product Certifications
cUL Listed; NOM (Mexico); ICC-ES AC156 OSHPD Seismic Certified
Product Compliance
CE (Europe); ENERGY STAR Qualified; RoHS
Product Warranty Period (U.S. & Canada)
3-year limited warranty
Extended Service Plans
ADVANCED DEPOT EXCHANGEService Part Number: 9SW5Y-3000BCExpedited parts coverage for 5 yearsParts, electronics and UPS batteries coverageNext business day shippingTechnical support5-YEAR ON-SITE PLAN (US ONLY)Service Part Number: WEBN75XX-7000BCOn-site parts and labor coverage for years 5Parts, electronics and UPS batteries coverage24x7 on-site labor coverage, next-day responseNext-day shippingTechnical support
