Keeps equipment running during outages to allow time for file saves and safe shutdown
Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
Included NETWORK-M3 Gigabit network card enables full remote access and control
Compatible with 14U rack mounting or secure floor installation with included hardware
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features

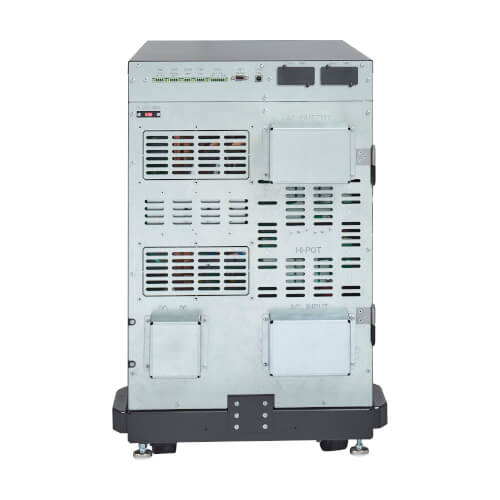

Modular, Scalable Battery Backup for Edge Data Centers and Industrial/Commercial Applications This 9PXM online double-conversion UPS system is superlative power management. Rugged enough to stand up to mission-critical applications, the 9PXM8S16K’s compact footprint and dual network card slots help make it a valuable UPS system for colocation and edge data centers, as well as industrial/commercial applications, including retail, financial, government and education. It features hardwired input and output connections.

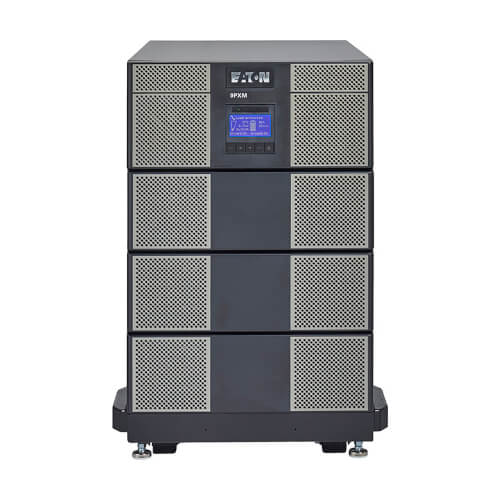

Protects Mission-Critical Equipment against Damage, Downtime and Data Loss The 9PXM8S16K provides reliable power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. It includes a 14U cabinet, four split-phase 4kVA power modules, eight internal battery modules (two per slot) and a NETWORK-M3 Gigabit network card.
UPS Has a Power Range up to 16kVA The UPS cabinet comes with four hot-swappable 4kVA power modules (9PXMSPPM), the maximum. All power modules share the load requirements equally, even if one power module fails or is removed.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages The UPS cabinet requires two hot-swappable extended battery modules (9PXMBAT) per slot. The valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM® technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.
Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M3 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M3 without dropping the load, so you don’t have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

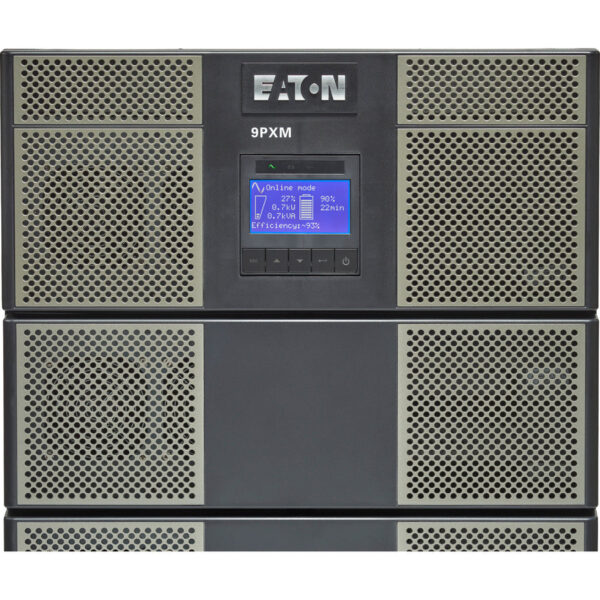

Intuitive Control Panel Keeps You Informed at a Glance The UPS control panel includes a graphical LCD, light indicators and function buttons. The control panel provides data and control for the UPS, load status, events, measurements and settings.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). EPO and ROO connectors permit emergency shutdown or remote restart of all connected equipment. By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components.

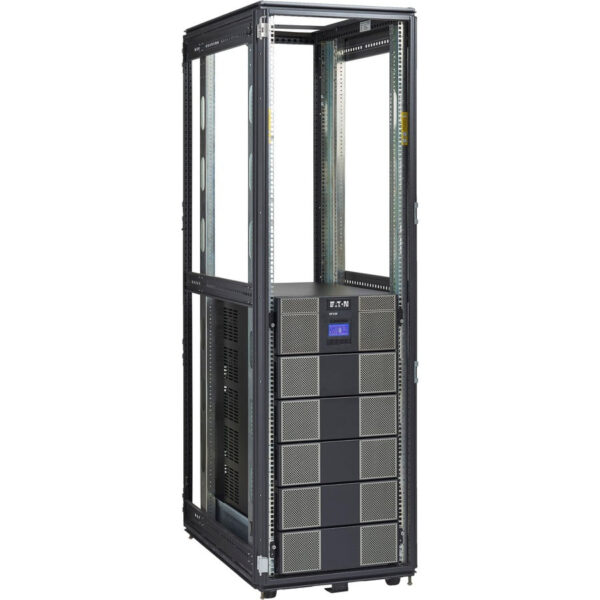

Versatile Installation Options You can install the 9PXM8S16K in 14U of space in an EIA-standard 19-inch rack using the optional rackmount kit (9PXMRK2, sold separately). Leveling feet and a caster tray are included for secure floor installation.
TAA-Compliant for GSA Schedule Purchases The 9PXM8S16K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
<5% at nominal input voltage, full load and battery fully charged
Output Capacity (kVA)
16
Output Capacity (kW)
14.4
Output Capacity Details
Scalable output capacity from 4kVA to 16kVA
Power Factor
0.9
Crest Factor
3:1
Nominal Voltage Details
110V/220V, 120V/208V, 120V/240V, 127V/220V
Frequency Compatibility
50 / 60 Hz
Output Voltage Regulation (Line Mode)
<5% steady state
Output AC Waveform (AC Mode)
Pure Sine wave
Output AC Waveform (Battery Mode)
Pure Sine wave
Nominal Output Voltage(s) Supported
110V; 120V; 127V; 208V; 220V; 240V
Output Receptacles
Hardwire
Battery Type
Valve Regulated Lead Acid (VRLA)
Runtime Full Load (min.)
6 min. (14400W)
Runtime Half Load (min.)
17 min. (7200W)
Expandable Runtime
Yes
Expandable Runtime Description
9PXMBAT (2 required per slot). Additional extended runtime options are available. See pg. 8 of the 9PXM brochure under Documents & Downloads for more details.
DC System Voltage (VDC)
120 per battery string
Battery Access
Battery access door
Internal UPS Replacement Battery Cartridge
9PXMBAT
Battery Replacement Description
Hot-swappable internal batteries and extended battery modules (EBMs)
Battery Management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Front Panel LCD Display
LCD graphical display
Switches
RPO / ROO
Alarm Cancel Operation
Press ESC to silence the alarm
Audible Alarm
Audible alarm indicates utility failure, low-battery, overload, other UPS/Battery fault or remote shutdown conditions
LED Indicators
4 status-indicating LEDs
EMI / RFI AC Noise Suppression
Yes
AC Suppression Response Time
0 ms
Primary Form Factor
Rackmount; Tower
Rack Height
14U
Cooling Method
Fan
Form Factors Supported
Rack/Tower
Included Battery Pack Weight (kg)
14.97
Installation Form Factors Supported with Included Accessories
Tower
Maximum Device Depth (cm)
88.90
Maximum Device Depth (mm)
889
Minimum Required Rack Depth (cm)
96.52
Minimum Required Rack Depth with External Battery Pack (in.)
38
Minimum Required Rack Depth without External Battery Pack (in.)
38
Optional Mounting Accessory Notes
9PXMRK2 – Four post rail kit
Primary UPS Depth (mm)
889
Primary UPS Height (mm)
635
Primary UPS Width (mm)
445
UPS Power Module Weight (kg)
10.21
Unit Weight (kg)
213.64
Operating Temperature Range
32° to 104°F (0° to 40°C)
Relative Humidity
5-95% non-condensing
AC Mode Efficiency Rating (100% Load)
94
AC Economy Mode Efficiency Rating (100% Load)
97
Network Management Cards
NETWORK-M2; INDGW-M2 ; RELAY-MS
Communications Interface
RS-232; USB
High Availability UPS Features
Hot swappable batteries; Hot swappable UPS power module; Remote management
UPS Applications
Mission Critical Applications
Product Certifications
IEC 61000; UL Listed; cUL Listed
Product Compliance
FCC (USA); RoHS; Trade Agreements Act (TAA)
Product Warranty Period (U.S. & Canada)
2-year limited warranty
Extended Service Plans
ADVANCED DEPOT EXCHANGEService Part Number: 9SW5Y-11000UCExpedited parts coverage for 5 yearsParts, electronics and UPS batteries coverageNext business day shippingTechnical support5-YEAR ON-SITE PLAN (US ONLY)Service Part Number: WFLN75XX-11000UCOn-site parts and labor coverage for years 5Parts, electronics and UPS batteries coverage24x7 on-site labor coverage, next-day responseNext-day shippingTechnical support
Input Plug
Hard-wire
