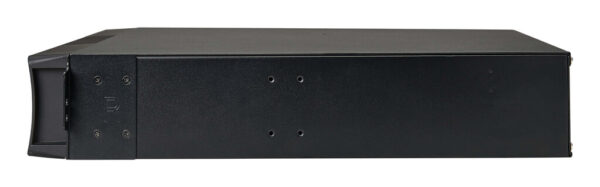

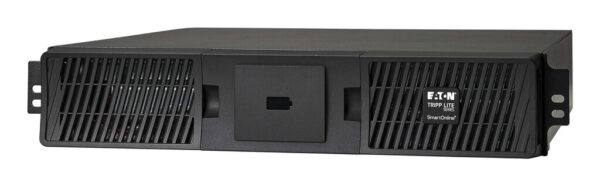

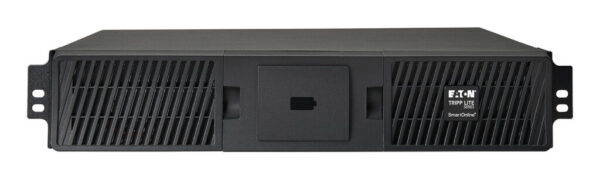

Tripp Lite series 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower

Tripp Lite series 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower

Name: Tripp Lite series 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
Brand: Tripp Lite
SKU: BP72RT
Price: 1269.95 CAD
Availability: BackOrder

$1,269.95

Brand: Tripp Lite

Part Number (MPN): BP72RT

UPC / GTIN: 037332279729

Datasheet: PDF

Tripp Lite series 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Connects to select expandable Eaton series SmartOnline UPS systems to add critical runtime

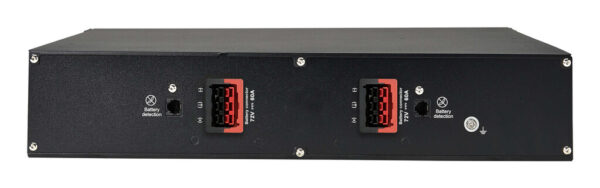

Includes heavy-gauge battery cabling with high-current 72V DC connectors
Daisy-chain connector supports additional battery packs for even longer runtime
Contains 2 batteries connected in parallel: 9Ah per battery, 18Ah total at 72V

Features

Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The valve-regulated lead-acid (VRLA) BP72RT offers extended battery runtime when used in conjunction with SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. The BP72RT contains two batteries connected in parallel with a 9Ah rating per battery for a total of 18Ah at 72V.

Versatile Installation Options
You can mount the BP72RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system’s support stands.

System Requirements

Compatible only with 2023 redesign SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U UPS systems

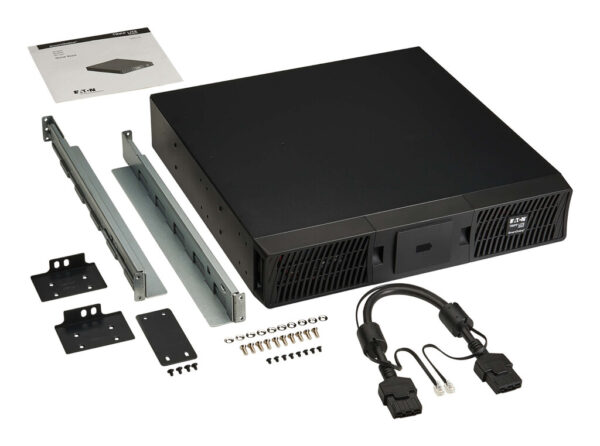

Package Includes

72V Extended Battery Module
External battery cable
Rack-mounting hardware
Quick start guide

Weight	100.31 lbs
Dimensions	30.3 × 22.8 × 9.4 in
UPC Code	037332279729
Rack Depth	27
Brand	Tripp Lite
Input Phase	Single-Phase
Input Cord Details	15.7 in. connector cord
Battery Type	Valve Regulated Lead Acid (VRLA)
DC System Voltage (VDC)	72
Replacement Battery Cartridge	744-A3121
Battery Replacement Description	Hot-swappable, user replaceable batteries. EBM requires 2 Replacement Battery Cartridges.
UPS Connection	UPS specific DC connector
Primary Form Factor	Rackmount; Tower
Rack Height	2U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( RK2PC )
Minimum Required Rack Depth (cm)	68.58
Shipping Weight (kg)	45.50
Unit Weight (kg)	39.19
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	0-96% non-condensing
Product Certifications	UL Listed
Product Compliance	CE (Europe); FCC (USA); REACH; RoHS
Product Warranty Period (U.S. & Canada)	2-year limited warranty
Extended Service Plans	ADVANCED DEPOT EXCHANGEService Part Number: TL9SW5Y-3000BCParts, electronics and batteries coverageNext business day shippingTechnical support5-YEAR ON-SITE PLAN (US ONLY)Service Part Number: TLWEBN75XX-7000BCOnsite parts and labor coverage for 5 yearsParts, electronics and batteries coverage24x7 onsite labor coverage, next-day responseNext-day shippingTechnical support
Part Number	Description
TLWEBN75XX7000BC	5-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs)
