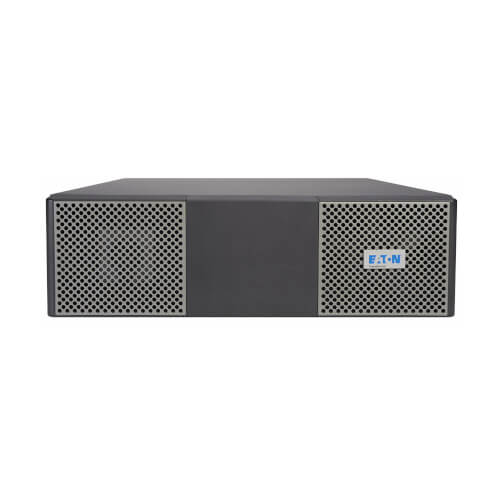

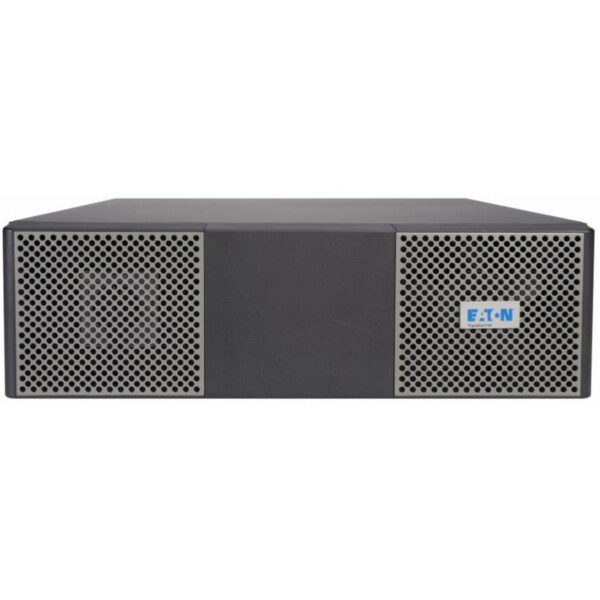

Eaton 9PX 10kVA 120V Stepdown Transformer – 8 NEMA 5-20R, 2 L14-30R Outlets, 50/60 Hz, Hardwire Input, 3U Rack/Tower

$3,300.72

Brand: Eaton
Part Number (MPN): 9PXTFMR11
UPC / GTIN: 743172039323
Datasheet: PDF

Eaton 9PX 10kVA 120V Stepdown Transformer – 8 NEMA 5-20R, 2 L14-30R Outlets, 50/60 Hz, Hardwire Input, 3U Rack/Tower

Manufacturer Warehouse: 53 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Converts 208V AC input into 120V output for powering low-voltage equipment
  • 8 NEMA 5-20R 120V outlets for connecting components with 5-15P or 5-20P plugs
  • Resettable circuit breakers protect mission-critical equipment from hazardous overloads
  • Requires hardwired connection to Eaton 9PX 8kVA to 11kVA UPS systems

Features

208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output
This 10kVA Stepdown Transformer converts your UPS system’s 208V high-voltage input to 120V low-voltage output. It features eight NEMA 5-20R and two L14-30R outlets for connecting equipment. Resettable circuit breakers protect your 120V equipment against overload conditions. The 9PXTFMR11 works with Eaton’s 8kVA to 11kVA 9PX UPS systems.

Versatile Installation Options
You can mount the 9PXTFMR11 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included joining bracket and hardware.

System Requirements

Compatible with Eaton’s 8kVA to 11kVA 9PX UPS systems

Package Includes

  • 9PXTFMR11 10kVA 120V Stepdown Transformer
  • Transformer cable
  • (2) Cable glands
  • Joining bracket and hardware for tower configuration
  • Rack-mounting hardware
  • Owner’s manuals
Weight 187.39 lbs
Dimensions 27.6 × 17.3 × 5.1 in
UPC Code

743172039323
Brand

Accessory Type

Isolation Transformer
Accessory Class

UPS Accessories
Input Phase

Single-Phase
UPS Input Connection Type

Hardwire
Input Plug Type

Hard-wire
Primary Form Factor

Rackmount; Tower
Rack Height

3U
Operating Temperature Range

32° to 104°F (0° to 40°C)
Relative Humidity

0-95% non-condensing
Product Certifications

cUL Listed; NOM (Mexico)
Product Compliance

CE (Europe); ENERGY STAR Qualified; RoHS
Product Warranty Period (U.S. & Canada)

3-year limited warranty
Extended Service Plans

ADVANCED DEPOT EXCHANGEService Part Number: 9SW5Y-11000UCExpedited parts coverage for 5 yearsParts, electronics and UPS batteries coverageNext business day shippingTechnical supportON-SITE 24X7, NEXT DAY RESPONSE (US ONLY)2 YEAR UPGRADE: WUN72XXX-11000UCOn-site expedited parts and labor coverage for first 2 yearsParts, electronics and UPS batteries coverageEaton on-site labor coverage24x7 coverage, next day responseNext day shippingTechnical support3 YEAR FLEX PLAN: FLN73XXX-11000UCOn-site parts and labor coverage for years 3 to 5Parts, electronics and UPS batteries coverage24x7 on-site labor coverage, next day repsonseNext day shippingTechnical support
Input Plug

Hard-wire
