Eaton Power Cord for Select Eaton Universal PDUs – 17300/22100VA 240/415V Wye or 230/400V Wye 3-Phase, 532P6W Input, 30/32A, 10 ft. (3.05 m)

$514.67

Brand: Eaton
Part Number (MPN): CBL358-10
UPC / GTIN: 786689783884
Datasheet: PDF

Eaton Power Cord for Select Eaton Universal PDUs – 17300/22100VA 240/415V Wye or 230/400V Wye 3-Phase, 532P6W Input, 30/32A, 10 ft. (3.05 m)

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Delivers 17.3kVA or 22.1kVA 3-phase power to Eaton’s universal input PDU (UPDU)
  • 10 ft. length allows flexibility in placing PDU in relationship to AC outlet

Features

Detachable Power Cord Supports Universal Input PDU

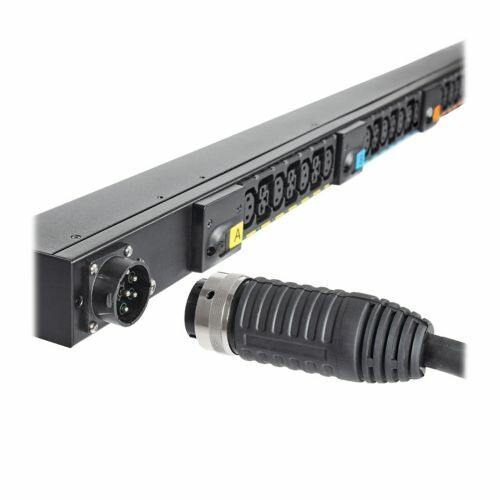

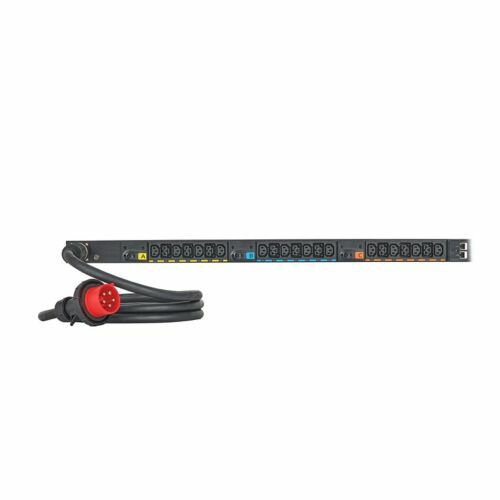

This detachable power cord is designed for 240/415V Wye (North America) or 230/400V Wye (Europe/Asia) 3-phase use. Its 8-pin universal connector mates with an Eaton universal input PDU (UPDU) to meet your diverse rack-power needs. The 10-foot (3.1-meter) length with 532P6W input plug allows you convenient flexibility in placing the UPDU with respect to the AC outlet.

System Requirements

Pairs with Eaton’s universal input PDU (UPDU)

Package Includes

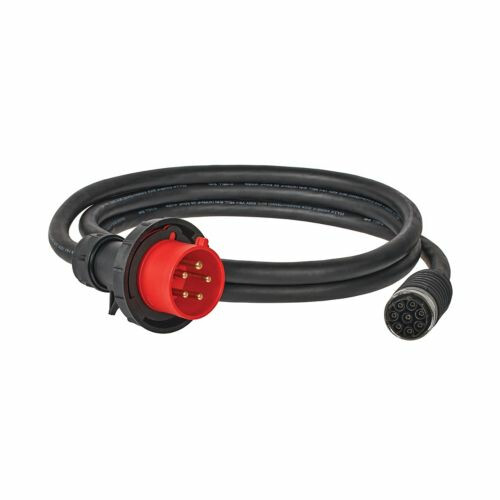

CBL358-10 Power Cord, 17300/22100VA 3-Phase, 10 ft. (3.05 m)

Weight 7.01 lbs
Dimensions 10.75 × 11.25 × 4 in
UPC Code

786689783884
Cord Length

10.01
Max Input Amps

32
Brand

Device Compatibility

PDU
Country/Region

Global
Input Phase

3-Phase
Voltage Compatibility (VAC)

230/400V 3-Phase Wye

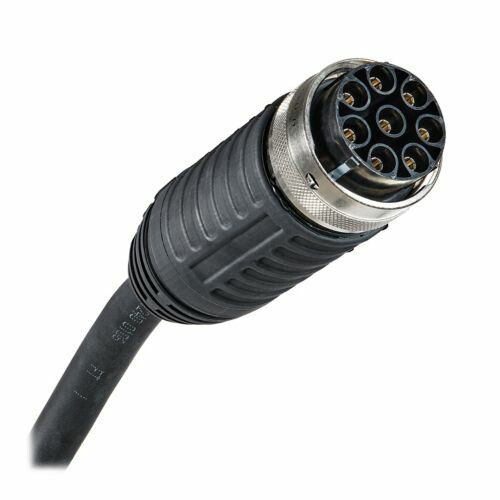

Side A - Connector 1

8-Pin Souriau UTG
Side B - Connector 1

532P6W
Plug Color

Red
Cable Jacket Color

Black
Connector Color

Black
Power Cord Jacket Type

SOOW; H07RN-F
Cable Outer Diameter (OD)

21mm
Number of Conductors

5
Wire Gauge (OD - mm²)

6
Cable Length (m)

3.05
Shipping Dimensions (hwd / cm)

12.70 x 43.18 x 43.18
Shipping Weight (kg)

3.28
Operating Temperature Range

32° to 140°F (0° to 60°C)
Storage Temperature Range

32° to 194°F (0° to 90°C)
Operating Temperature

32° to 140°F (0° to 60°C)
Operating Humidity Range

10% TO 90% RH, NON-CONDENSING
Storage Humidity Range

10% TO 90% RH, NON-CONDENSING
High Voltage

Yes
Product Certifications

UL Listed; cTUVus; cUL Listed
Product Compliance

CE (Europe); FCC (USA); RoHS; UKCA; REACH
Product Warranty Period (Worldwide)

3-year limited warranty
