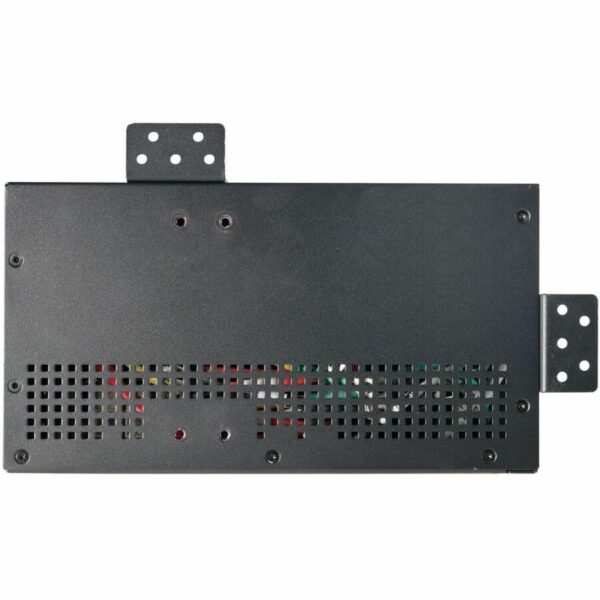

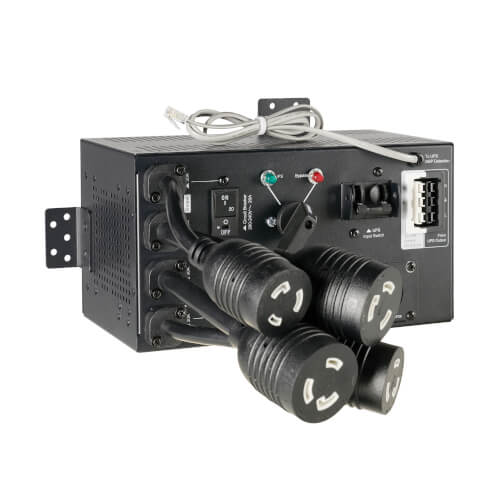

Eaton 9PX G2 Maintenance Bypass for 3-6kVA UPS, Hardwired or L6-30P Input, Hardwired Output, 2x L6-20R, 2x L6-30R, 0U Rack/Tower/Wall – MBP6K208G2

Quick Specs

• Isolates UPS from connected loads for maintenance without powering down equipment
• Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
• Compatible with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, 3–6kVA TF5G2 bundles, 9PX6K-L and 9PX6KG2-L

Features

Compatible with Select Eaton 3kVA/5kVA/6kVA UPS Systems
The MBP6K208G2 works with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, 3–6kVA TF5G2 bundles, 9PX6KG2, and 9PX6KG2-L. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.

Versatile Connection and Installation Options

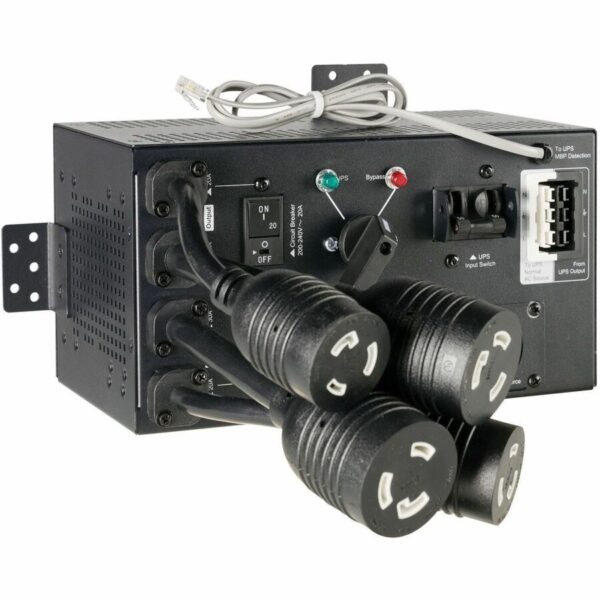

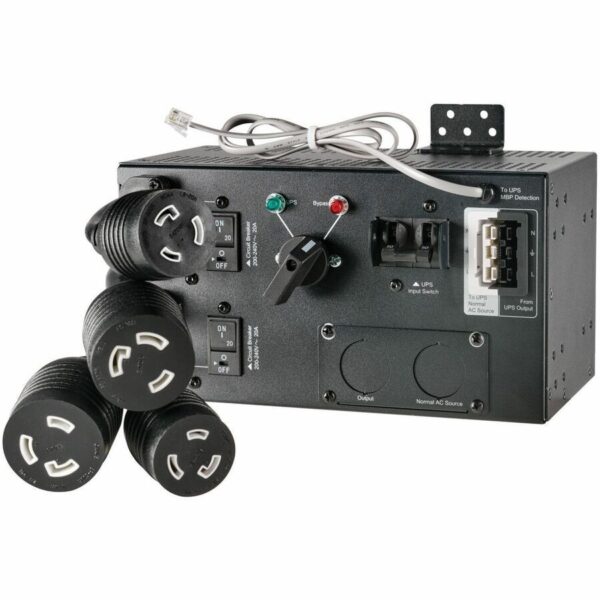

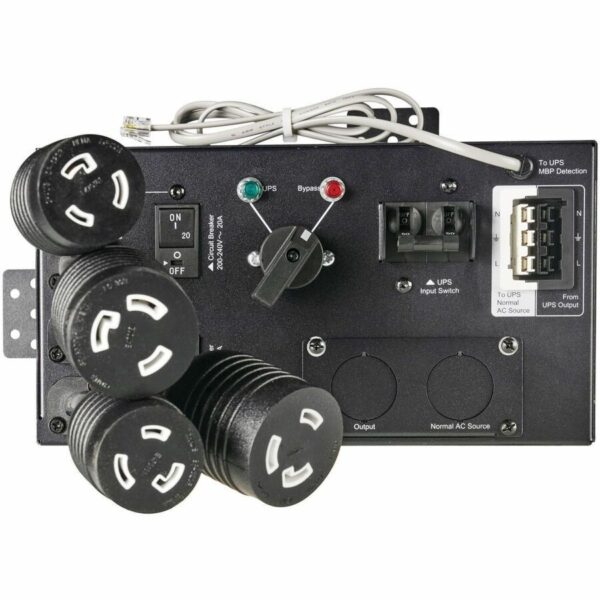

The MBP6K208G2 features hardwired input and output connections, as well as two NEMA L6-20R and two NEMA L6-30R outlets. You can also use the L6-30P cable included with your 9PX G2 3–6kVA UPS for an L6-30P input with MBP6K208G2. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.

System Requirements

Compatible with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, 3–6kVA TF5G2 bundles 9PX6KG2, and 9PX6KG2-L

Package Includes

• MBP6K208G2 Maintenance Bypass
• Input/output UPS cable set
• (2) Cable glands
• Mounting hardware
