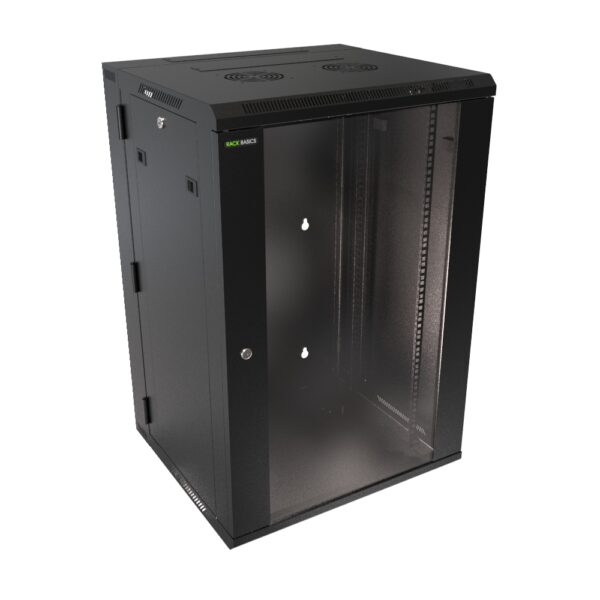

Name: Rack Basics 18U Swing-Out Wall Cabinet
Brand: Hammond
SKU: RB-SW18
Price: 691.85 CAD
Availability: InStock

Rack Basics 18U Swing-Out Wall Cabinet

$691.85

Brand: Hammond

Part Number (MPN): RB-SW18

UPC / GTIN: 623980046372

Datasheet: PDF

18U Rack Basics swing-out wall-mount cabinet with a locking front door, 130 lb capacity and rear access for cabling.

Toronto Stock: 103 available

Need project pricing? Add items to your cart to request a custom project quote.

The Hammond Rack Basics RB-SW18 is an 18U, 19-inch swing-out wall-mount cabinet for network closets and telecom rooms. The cabinet body is hinged so it swings away from the wall, giving full rear access for cable routing and servicing without unmounting equipment.

18U of 19-inch EIA rack space; two pairs of square-hole punched mounting rails
16-gauge steel construction rated for 130 lb of equipment
Locking front door for physical security
Includes a starter pack of 25 screws and cage nuts
Black (RAL9005) finish; RoHS and REACH compliant
Dimensions (H x W x D): 35.43 x 23.63 x 21.65 in (900 x 600 x 550 mm); shipping weight 88 lb

Weight	88 lbs
Dimensions	21.65 × 23.63 × 35.43 in
Brand	Hammond
Height	35.43 in
Width	23.63 in
Depth	21.65 in
Shipping Weight	88 lb
Load Capacity	130 lb
Rack Type	Enclosed swing-out wall-mount cabinet
Rack Width	19 in (EIA)
Rail Type	Square hole, cage nut
Mounting Rails	2 pairs, square-hole punched
Material	16-gauge steel
Color	Black (RAL9005)
Front Door	Locking
Series	Rack Basics RB-SW
RoHS Compliant	Yes
REACH Compliant	Yes
