Tripp Lite series 1U Rack-Mount Console with 19″ LCD, DVI or VGA, TAA

Quick Specs

• Rack-mount console (19” LCD monitor, keyboard and touch pad) in a space-saving, 1U rack-mountable housing
• DVI-I port supports both digital and analog video, with a maximum resolution of 1366 x 768
• Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch
• Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive or CAC card reader
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Overview

Need to add convenient rack-side access to securely manage and control your critical network systems? The B021-000-19-HD Rack-Mount Console is the smart solution for controlling a computer, server or KVM switch in IT applications where rack space is at a premium. The console features an integrated 19-inch LCD, full 88-key keyboard and touchpad, all in a 1U rack-mountable housing. A sliding 1U drawer and flip screen allows you to store the console neatly in the rack when not in use. The B021-000-19-HD features a DVI-I port that supports either DVI Digital or VGA Analog (when using the included DVI to VGA adapter) video signals. For added convenience, the console features a USB 2.0 pass-through port for easy connection of a USB peripheral such as a flash drive or CAC card reader. Your peripheral device connects to the USB-A port on the front of the unit, and your server or KVM switch (must have a USB hub port) connects to the USB-A port on the back of the unit using a UR020-Series M/M cable. The included KVM cable kit allows for connection to a USB server or KVM switch. With its high-quality 19-inch LCD screen, premium connectors, intuitive controls and broad compatibility, the B021-000-19-HD will provide trouble-free operation in demanding high-availability environments. It is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Convenient Rack-Side Access to Computers, Servers and KVM Switches

• Ideal for controlling a computer, server or KVM switch in IT environments where rack space is at a premium
• Mountable in 19-inch 1U system racks with depths ranging from 27 to 42 inches (rack-mount hardware is included)
• Input 110/220 V, 2A with a NEMA 5-15P and C14 on unit
• Constructed of heavy-duty steel housing

All-in-One Control Solution for Secure Management of Critical Network Systems

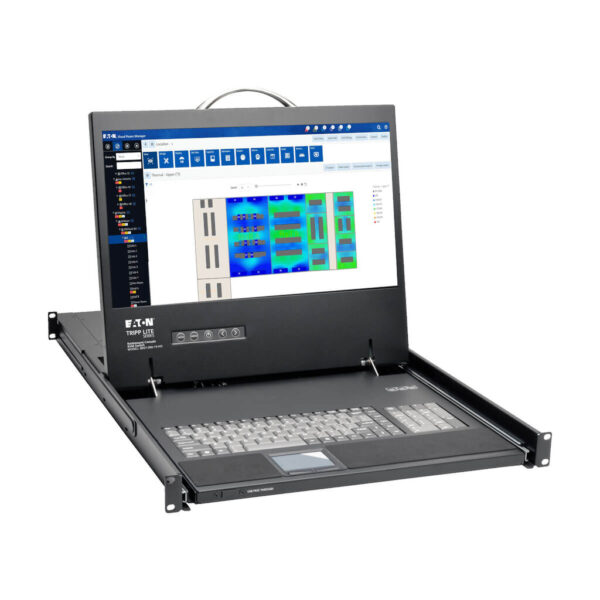

• Combines a full keyboard, numeric keypad, touchpad and 19-in. LCD in a 1U sliding drawer that stores neatly in the rack when not in use
• No server-resident software is required, so server performance and reliability are never compromised

Accepts DVI Digital or VGA Analog Video Signals

• DVI-I port supports both digital and analog video signals
• Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch
• The 19-in. LCD screen supports video resolutions of up to 1366 x 768

Supports Multiple Platforms

• Nearly all platforms can be accommodated, including UNIX®, Linux®, Windows®, macOS®, Solaris™, because compatibility is based on common hardware standards rather than system software dependencies
• Compatible with most KVM switches that have a VGA or DVI monitor port and USB keyboard/mouse ports

Pass-Through USB 2.0 Port for Easy Connection of Peripherals

• Features a USB 2.0 pass-through port for easy connection of a USB peripheral, such as a flash drive or CAC card reader
• The peripheral device connects to the USB-A port on the front of the unit, and your server or KVM switch (must have a USB hub port) connects to the USB-A port on the back of the unit using a UR020-Series type A M/M cable (sold separately)

System Requirements

• Server or KVM switch with a VGA or DVI monitor port and USB keyboard/mouse ports

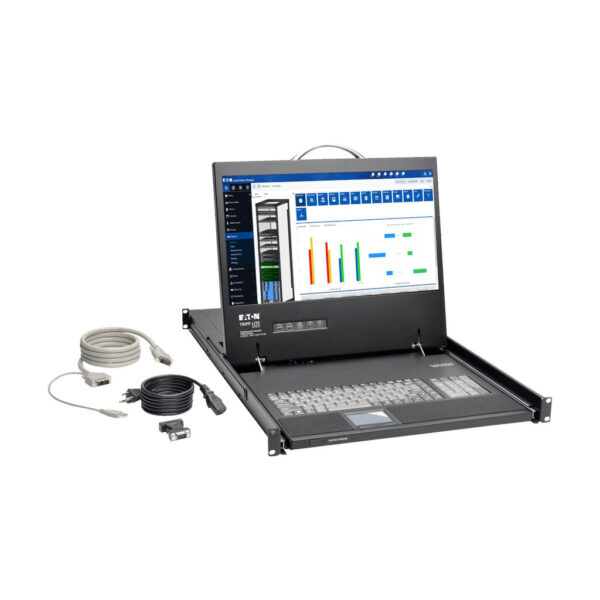

Package Includes

• 1U Rackmount Console
• KVM Cable Kit (DVI-I, USB)
• DVI to VGA Adapter
• AC Power Cord
• Owner’s Manual
• Mounting Brackets
