Tripp Lite series NetCommander 8-Port Cat5 KVM over IP Switch – 19 in. LCD, 1 Remote + 1 Local User, 1U Rack-Mount, TAA

Quick Specs

• Control computers/servers locally or via LAN, WAN or Internet
• Occupies just 1U of space in a rack-mountable drawer
• Low-cost Cat5 cabling allows longer distances, reduces cable clutter
• 19” LCD screen supports video resolutions up to 1366 x 768
• Simultaneous support for 2 users – 1 local, 1 remote
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Free Management Software available to Access and Control all of your NetCommander IP KVM’s (B070 and B072 IP series) from a single interface
• Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

Overview

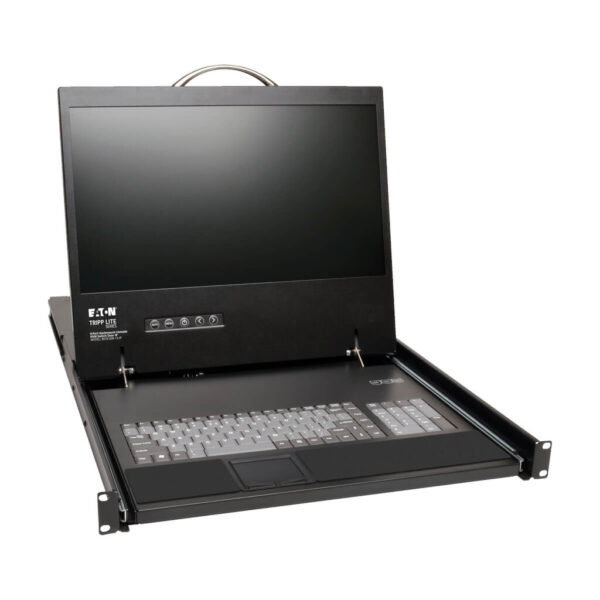

The B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to eight computers/servers locally from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.

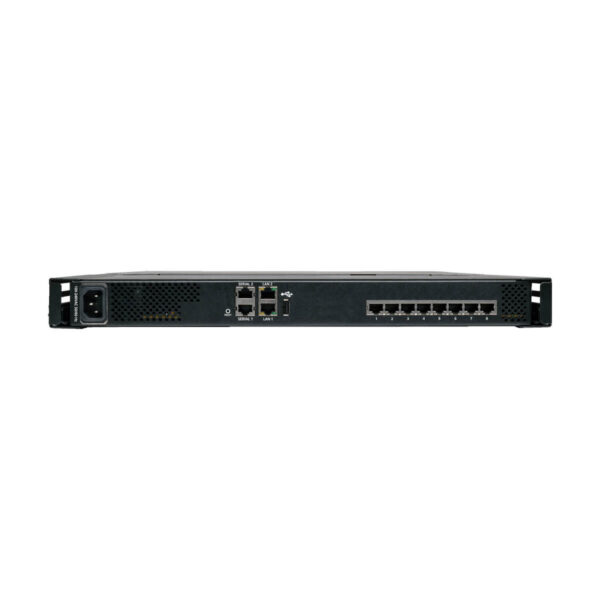

The B070-008-19-IP uses inexpensive user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 feet away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.

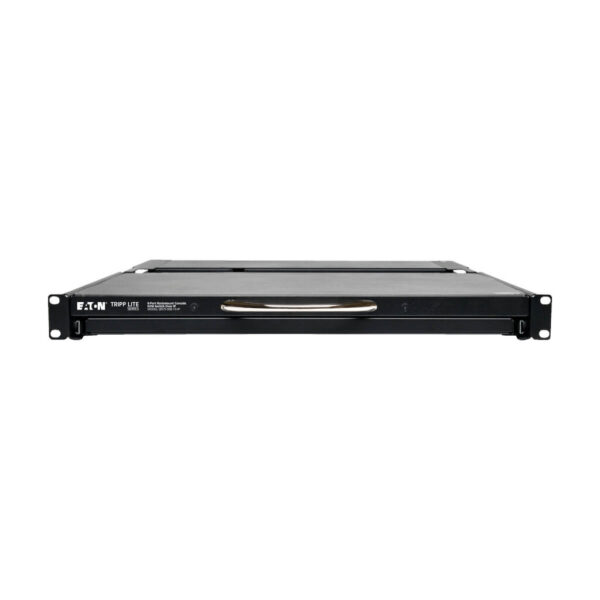

Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-008-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Free NetCommander-AXS Management Software is available for access and control of all of your NetCommander IP KVM switches (B070- and B072-Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be found on the model support page of the B070-008-19-IP.

Features

Saves Space and Money

• Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
• Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use B019-000
• Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
• Use Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
• For computers with Displayport or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

• Remote access means there’s no need to travel to the server room or network closet
• Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
• A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
• 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
• Supports both IPv4 and IPv6
• Free Management Software available to Access and Control all of your NetCommander IP KVM’s (B070 and B072 IP series) from a single interface

Simplifies IT Tasks

• On-screen display, hot keys and remote toolbar for easy use
• 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
• Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port
• Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it
• Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
• System-sent messages to SNMP server notify you of LAN failures
• Supports RADIUS and LDAP/S authentication
• Log tracks events on your installation

Large 19” LCD

• Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
• DDC emulation allows for optimal output to LCD

Advanced Security Features

• Multi-level password protection: create administrator accounts with full access and user accounts with limited access
• Supports TLS 1.2 security protocol
• You can install SSL certificates to ensure secure transactions between web servers and browsers

Expandability and Long-Lasting Reliability

• Flash-upgradeable firmware over the network
• Heavy-duty steel housing stands up to use

TAA Compliant

• Complies with the Federal Trade Agreements Act for GSA Schedule purchases

System Requirements

• Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
• User-supplied Cat 5e/6/6a cabling
• B078-101-USB-1 (USB) Server Interface Unit is required for each connected computer/server
• For computers with DisplayPort or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
• Compatible with Windows and Linux operating systems
• Remote access supported using Windows computers
• Remote console computers require minimum Pentium 4 with 2 GB memory
• Power consumption: 120V, 60Hz, 30W

Package Includes

• B070-008-19-IP 1U rackmount console KVM switch with 19” LCD

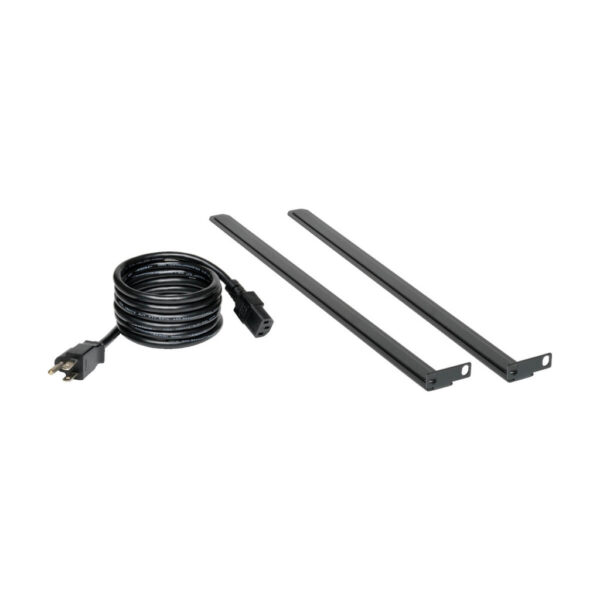

• C13 to 5-15P power cord
• Rackmount hardware
• Quick start guide
