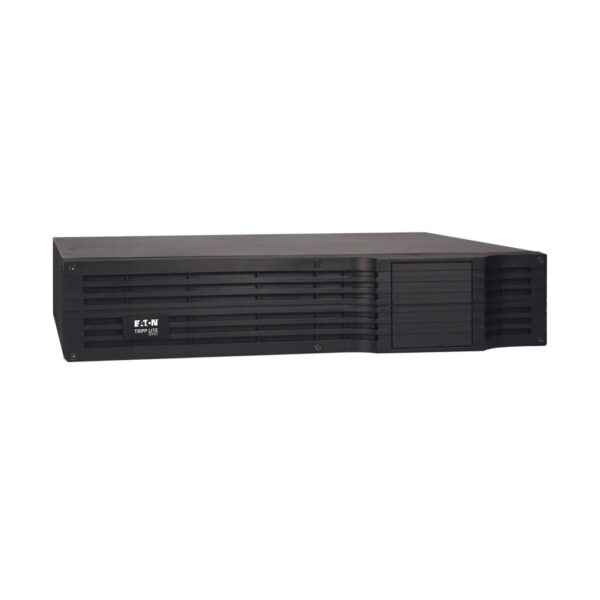

Tripp Lite series External 48V 2U Rack-mount Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V24-2U)

Name: Tripp Lite series External 48V 2U Rack-mount Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V24-2U)
Brand: Tripp Lite
SKU: BP48V24-2U
Price: 1122.67 CAD
Availability: InStock

$1,122.67

Brand: Tripp Lite

Part Number (MPN): BP48V24-2U

UPC / GTIN: 037332043603

Datasheet: PDF

Tripp Lite series External 48V 2U Rack-mount Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V24-2U)

Toronto Stock: 1 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Extends the runtime of compatible 48V UPS Systems
Supports 2U rack-mount installation; 4-post installation accessories included
Options for 2-post rack-mount installation available

Features

Offers extended-run UPS operation when used in conjunction with compatible 48V DC UPS systems
Includes heavy-gauge cabling with high-current DC connectors for simple installation
Included mounting brackets support rack-mount installation in 4-post racks using only 2 rack spaces (2U)
UPDHDEARKIT option supports two-point front-rail rack-mount installation without rear supports
2POSTRMKITWM option supports balanced two-point center-mounting in 2-post equipment racks
48VDCSPLITTER option enables the connection of two BP48V24-2U external battery packs
NOTE: LIMIT OF 2 BP48V24-2U PER UPS (Adding one requires no accessories. Use 48VDCSPLITTER to connect two to the host UPS), SEE BP48V60RT-3U or BP48V27-2US FOR MULTI-PACK COMPATIBILITY AND TOWER MOUNTING CAPABILITY.
NOTE: When used with SMART5000XFMRXL, this battery pack must either be (1) placed in a recessed position inside the rack so the DC cable can reach the BP connector on the back of the UPS or (2) be installed with a 1-ft. (0.3 m) 48VDC extension cable BPEXT481

Package Includes

BP48V24-2U external rackmount battery pack with attached DC cabling
4 post compatible mounting hardware
Owner’s manual

Weight	71.4 lbs
Dimensions	19.5 × 23.4 × 8.9 in
UPC Code	037332043603
Rack Depth	17
Brand	Tripp Lite
Input Phase	Single-Phase
DC System Voltage (VDC)	48V
Battery Pack Accessory (Optional)	48VDCSPLITTER (*Limit 2 BP48V24-2U with 48VDCSPLITTER )

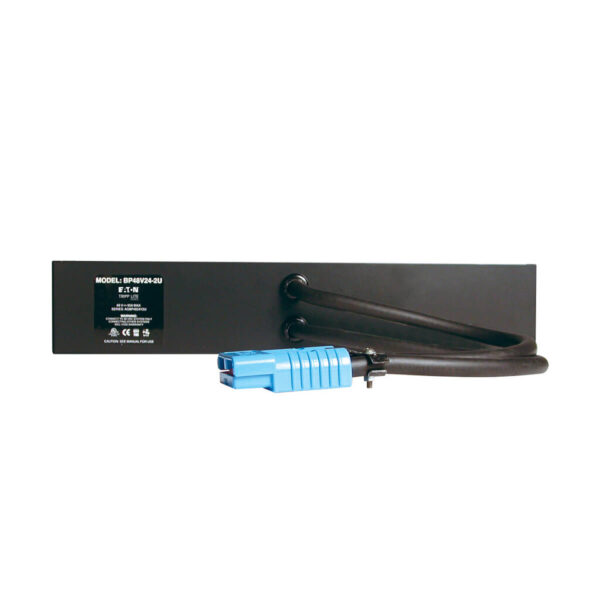

UPS Connection	Attached cable with blue 175 amp DC connector
Typical Battery Lifespan	4-6 years typical (North America)
Rack Height	2U
External Battery Pack Form Factor	Rack
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT )
Minimum Required Rack Depth (cm)	43.18
Shipping Dimensions (hwd / cm)	22.61 x 59.44 x 49.53
Shipping Weight (kg)	32.39
Unit Dimensions (hwd / cm)	8.9 x 44.5 x 34.3
Unit Weight (kg)	28.58
Grounding Details	Yes
Product Certifications	NOM (Mexico); UL Listed
Product Compliance	CE (Europe); RoHS
Product Warranty Period (U.S. & Canada)	2-year limited warranty
Optional Coverage	1-year, 2-year, and 3-year standard extended warranty options available
WEXT1H	Extended Warranty and Technical Support for Select Products – KVM, PDU, Inverters
WEXT2H	Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
WEXT3H	Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
TLWEBN72XX7000BC	2-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs)
TLWEBN75XX7000BC	5-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs)
Part Number	Description
TLWEBN73XX7000BC	3-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs)
