Tripp Lite series External 48V 4U Battery Pack for select UPS Systems (BP48V48RT4U), TAA
$2,401.44
Tripp Lite series External 48V 4U Battery Pack for select UPS Systems (BP48V48RT4U), TAA
Manufacturer Warehouse: 5 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Extends the runtime of 48V DC UPS Systems
- 4U reduced-depth configuration with included 2-post mounting accessories is ideal for use with SMART2200CRMXL and SMART3000CRMXL UPS systems
- Included daisychain connector supports the addition of multiple compatible external battery packs
- Supports 4U rack-mount installation; 2-post installation accessories included
- Options for 4-post rack-mount available
Overview
The BP48V48RT4U 4U external battery pack offers extended battery runtime when used in conjunction with expandable 48V rack-mount and tower UPS systems. 4U reduced-depth configuration with included 2-post mounting accessories is ideal for use with compact rack-mount models SMART2200CRMXL and SMART3000CRMXL. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 4U balanced two-point center-mounting rack-mount installation in 2-post racks. Options for 4-post mounting available.
Compatible with these UPS Systems: SMART2200CRMXL, SMART3000CRMXL and other UPS systems that specify the use of this battery pack. (Note: BP48V48RT4U, SMART2200CRMXL and SMART3000CRMXL include hardware for 2-post rack-mount installation. Most other rack-mount UPS systems and battery packs include hardware for 4-post rack-mount installation.)
Features
- Offers extended-run UPS operation when used in conjunction with compatible 48V DC UPS systems
- Reduced-depth configuration is ideal for use with Compact rack-mount UPS systems SMART2200CRMXL and SMART3000CRMXL
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS
- Included mounting brackets support rack-mount installation in 4-post racks using only 4 rack spaces (4U)
- 4POSTRAILKIT option supports 4-post rack-mount installation

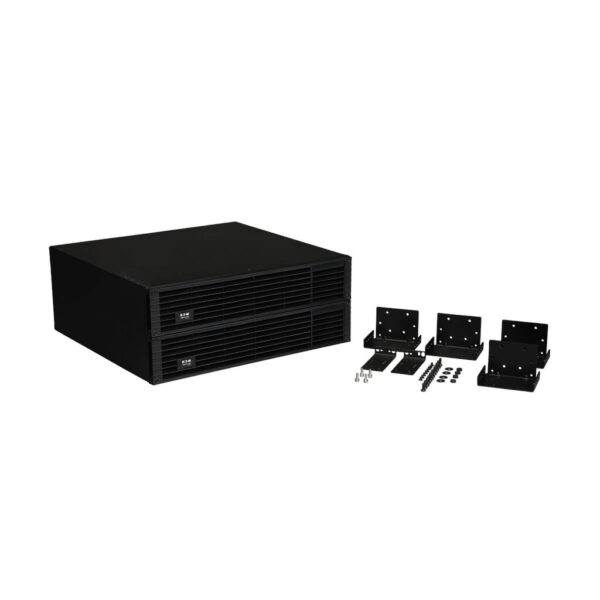

Package Includes
- BP48V48RT4U external battery pack with attached DC cabling
- 2 post compatible mounting hardware
- Owner’s manual
| Weight | 170 lbs |
|---|---|
| Dimensions | 23.5 × 22.5 × 13.5 in |
| UPC Code | 037332142474 |
| Rack Depth | 20 |
| Brand | |
| Input Phase | Single-Phase |
| Overload Protection | 180A DC output fuse system |
| Expandable Runtime | Yes |
| Expandable Runtime Description | Includes a second input/output connector to daisy-chain multiple BP48V48RT4U battery packs |
| DC System Voltage (VDC) | 48 |

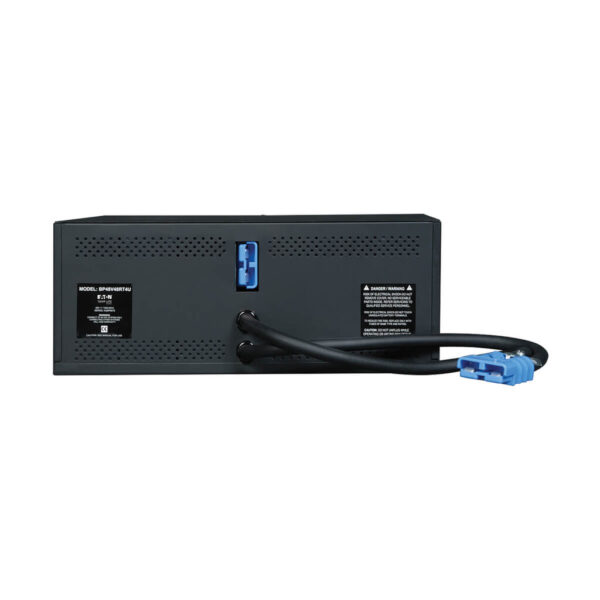

| UPS Connection | Attached 20.5 inch cabling with UPS specific DC connector (52.1 cm length, 4 gauge cable) |
| Typical Battery Lifespan | 4-6 years typical (North America) |
| Material of Construction | Steel |
| Rack Height | 4U |
| External Battery Pack Form Factor | Rack |
| Installation Form Factors Supported with Optional Accessories | 4 post rackmount full-depth ( 4POSTRAILKIT ) |
| Minimum Required Rack Depth (cm) | 50.80 |
| Shipping Dimensions (hwd / cm) | 34.29 x 57.15 x 59.69 |
| Shipping Weight (kg) | 77.11 |
| Unit Dimensions (hwd / cm) | 17.78 x 44 x 42.5 |
| Unit Weight (kg) | 65.00 |
| Product Compliance | RoHS; CE (Europe); Trade Agreements Act (TAA) |
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
| WEXT1N | Extended Warranty and Technical Support for Select Products – KVM, Inverters |
| WEXT2N | Extended Warranty and Technical Support for Select Products – KVM Switches, Power Inverters |
| WEXT3N | Extended Warranty and Technical Support for Select Products – KVM Switches, Power Inverters |
| TLWEBN72XX7000BC | 2-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs) |
| TLWEBN75XX7000BC | 5-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs) |
| Part Number | Description |
| TLWEBN73XX7000BC | 3-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs) |
