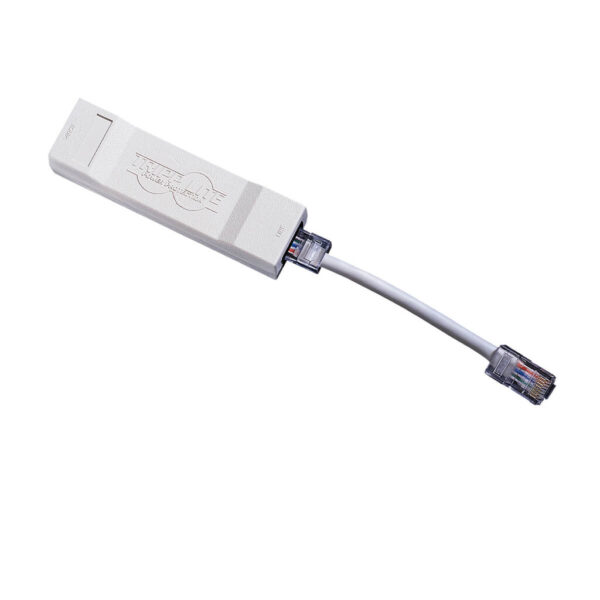

Tripp Lite series DataShield In-Line Surge Protector for Network and Phone Lines, 1-Line RJ45

Quick Specs

• Network Ethernet line surge suppression for 100Base-T, 10Base-T, Token Ring, AS400/Sys3x and RS422 applications
• Ideal protection for NICs, terminals, hubs, printers, LAN equipment, and other internetworking devices
• Protects against the effects of electrostatic discharge
• Reduces blown NIC cards, garbled network transmissions, system lock-ups and hard equipment failure
• 750A circuit breaker; 7.5V nominal clamping voltage
• RJ45 input and output connections with included patch cable

Overview

The DNET1 provides network Ethernet line surge suppression for 100Base-T, 10Base-T, Token Ring, AS400/Sys3x and RS422 applications. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges away from network interface connections. This network surge suppressor reduces blown NIC cards, garbled network transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground. Convenient RJ45 input and output connections with an included five-inch Ethernet cable enables ideal protection for network workstations, printers and other internetworking devices with a network connection.

Features

• DNET1 protects network workstations, printers and internetworking devices from surges present on 10/100Base-T, token ring, AS400/Sys3x or RS422 network lines
• Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 7.5V clamping)
• 5 inch Ethernet patch cable enables ideal protection placed as close as possible to the point of use
• Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground
• RoHS Compliance
• Lifetime Warranty

Package Includes

• DNET1 dataline protector
• 5-in. RJ45 patch cable
• Warranty information and instruction manual
