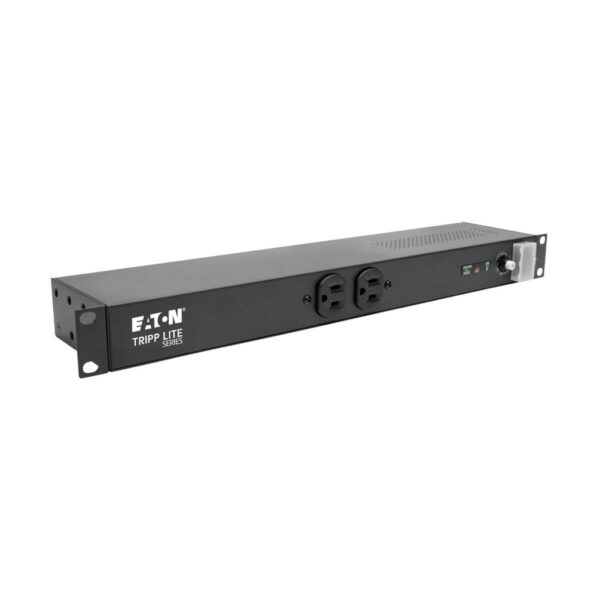

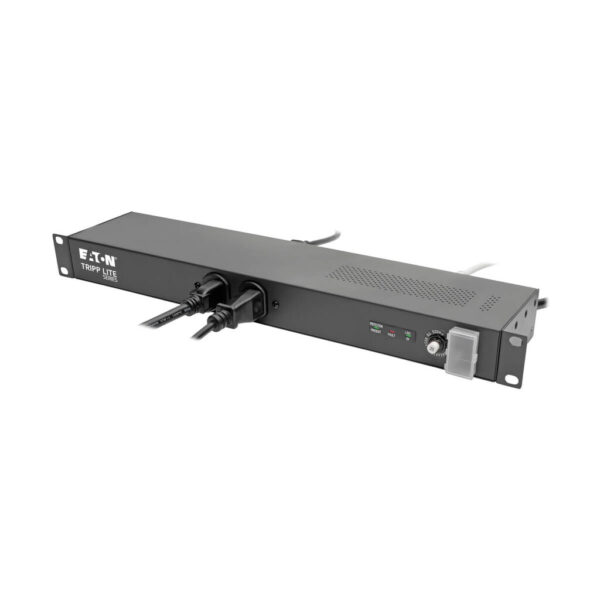

Tripp Lite series Isobar 12-Outlet Network Server Surge Protector, 15 ft. (4.57 m) Cord with 5-20P Plug, 3840 Joules, Diagnostic LEDs, 1U Rackmount

Tripp Lite series Isobar 12-Outlet Network Server Surge Protector, 15 ft. (4.57 m) Cord with 5-20P Plug, 3840 Joules, Diagnostic LEDs, 1U Rackmount

Name: Tripp Lite series Isobar 12-Outlet Network Server Surge Protector, 15 ft. (4.57 m) Cord with 5-20P Plug, 3840 Joules, Diagnostic LEDs, 1U Rackmount
Brand: Tripp Lite
SKU: IBAR12-20ULTRA
Price: 269.91 CAD
Availability: BackOrder

$269.91

Brand: Tripp Lite

Part Number (MPN): IBAR12-20ULTRA

UPC / GTIN: 037332099235

Datasheet: PDF

Tripp Lite series Isobar 12-Outlet Network Server Surge Protector, 15 ft. (4.57 m) Cord with 5-20P Plug, 3840 Joules, Diagnostic LEDs, 1U Rackmount

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

2 NEMA 5-15R and 10 NEMA 5-20R outlets in isolated filter banks
Network-grade 3840-joule surge protection rating
Mounts into 1U of space in EIA-standard 19 in. racks
20A resettable circuit breaker prevents dangerous overloads

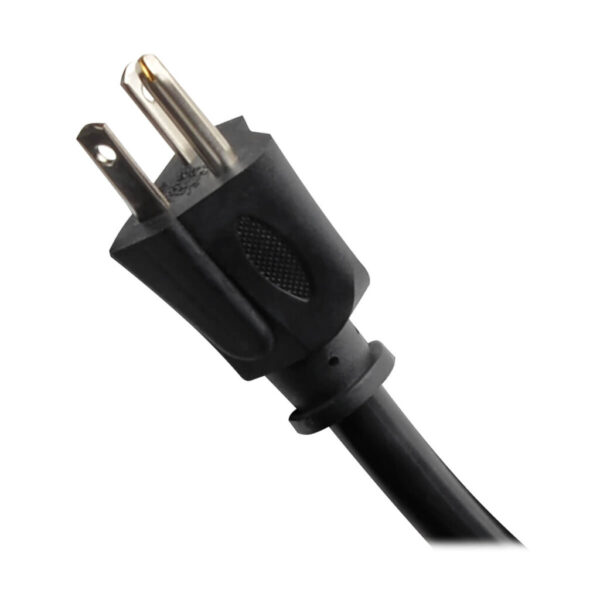

15-ft. (4.57 m) AC power cord with NEMA 5-20P plug

Features

Network-Grade 3840-Joule Surge Protection for IT or Industrial Electronics

Protects rack-mounted network hardware, retail displays, appliances, power tools and other expensive electronics against even the strongest surges and spikes
Recommended for network workstations, telecom systems, point-of-sale equipment and audio/video systems requiring AC line protection
Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
Exceeds IEEE 587 Category A and B surge suppression specifications

12 Outlets Accept Wide Range of Electronic Devices

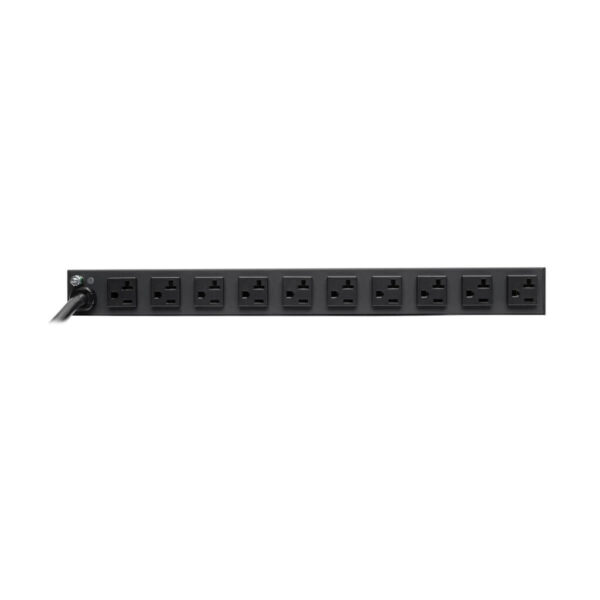

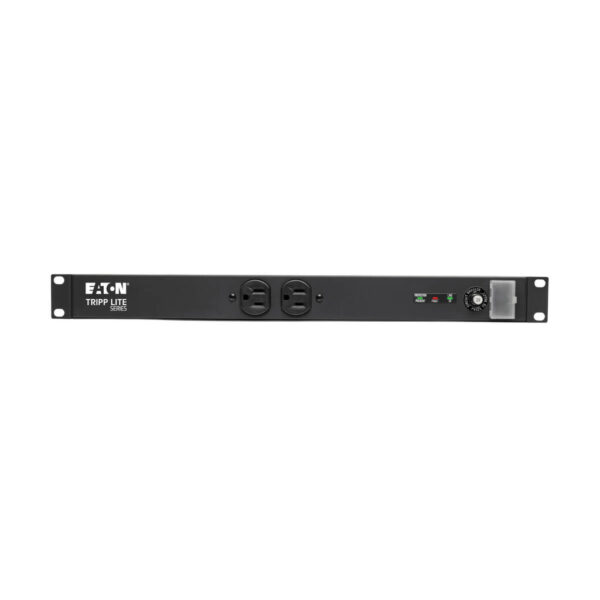

2 NEMA 5-15R in front, 10 NEMA 5-20R in rear
AC outlets accept most computer, networking and telecom equipment

Isolated Filter Banks Provide Extra Protection

Outlets arranged in 2 exclusive isolated filter banks to limit noise interaction among connected equipment
Block disruptive EMI/RFI line noise that can cause equipment damage or data loss

Premium Safety Features

Lighted on/off switch with locking cover provides one-touch control over connected equipment
Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Diagnostic LEDs confirm power, protection and line fault status at a glance
Conforms to current UL 1449 3rd Edition safety standards

Flexible Mounting Options

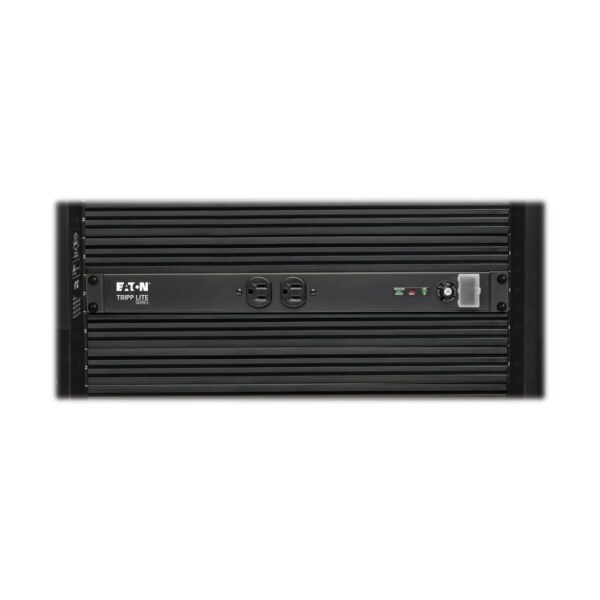

Mounts into 1U of space in EIA-standard 19 in. racks
Included mounting hardware also allows installation on wall or under counter
Long 15-ft. (4.6 m) AC power cord with NEMA 5-20P plug reaches distant outlets
All-metal housing designed for long life

Backed by Ultimate Lifetime Insurance

$25,000 Ultimate Lifetime Insurance covers any connected components damaged by power surge (U.S., Canada and Puerto Rico only)

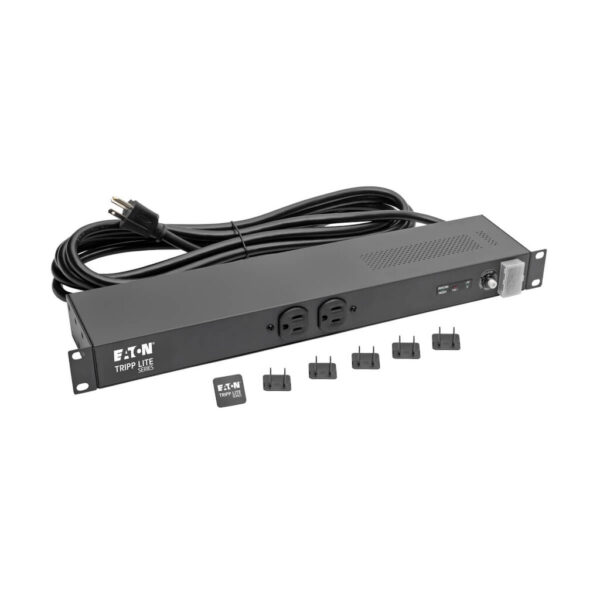

Package Includes

IBAR12-20ULTRA Isobar 12-Outlet Surge Protector, 1U Rack-Mount
Rack-mounting brackets
Owner’s manual

Weight	5 lbs
Dimensions	20 × 6 × 4 in
UPC Code	037332099235
Cord Length	14.99
Output (W)	2400
Joule Rating	3840
Brand	Tripp Lite
Nominal Input Voltage(s) Supported	120V AC
Recommended Electrical Service	120V (110-125V)
Input Cord Gauge (AWG)	14
Voltage Compatibility (VAC)	120
Maximum Surge Amps	150000
Input Plug Type	NEMA 5-20P
Input Cord Details	SJT
Right-Angle Plug	No
Input Cord Length (m)	4.57
Frequency Compatibility	50 / 60 Hz
Output (Watts)	2400
Output Receptacles	(2) 5-15R; (10) 5-20R
Circuit Breaker (amps)	20
Diagnostic LED(s)	Yes
Switches	Red illuminated power switch controls power to all outlets
Diagnostic LED Details	PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
Locking Switch Cover	Transparent locking switch cover prevents accidental shutoff
AC Suppression Joule Rating	3840
AC Suppression Response Time	NM = 0 ns. CM = <1 ns
Protection Modes	Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
AC Suppression Surge Current Rating	96,000 amps
AC Suppression Components Used	Metal oxide varistors, toroidal balanced chokes and VHF capacitors
Safe Thermal Fusing	Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
UL1449 Let Through Rating	330V
EMI / RFI Filtering	40-80 dB
Isolated Filter Banks	Yes
Immunity	Conforms to IEE 587 / ANSI C62.41
Network (Ethernet) Protection	No
Material of Construction	Metal
Power Cord Color	Black
Form Factors Supported	1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported – detachable flanges can be re-configured to support a variety of additional mounting options
Housing Color	Black
Mounting Holes or Slots	No
Outlets Measurement (Center to Center)	Distance between front outlets = 38.9mm; Distance between rear outlets = 40.65mm
Receptacle Color	Black
Shipping Dimensions (hwd / cm)	23.37 x 6.60 x 51.56
Shipping Weight (kg)	2.99
Unit Dimensions (hwd / cm)	4.45 x 44.45 x 10.16
Unit Weight (kg)	2.86
Mounting Details	Includes flanges
Mounting Accessory Included	Yes
Product Certifications	CAN/CSA-C22.2 No. 369.3:2017 (2nd Ed.); UL 1449 5th Ed. Rev: 2021
Product Compliance	RoHS
Product Warranty Period (Worldwide)	Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)	$25,000 Ultimate Lifetime Insurance
