Tripp Lite series Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 4 C13 Outlets, TAA

Quick Specs

• Protects sensitive equipment from EMI/RFI line noise and surges
• Cumulative leakage current less than 50 µA
• Automatically shuts down all outlets in case of overload
• Offers complete isolation from input AC mains power
• Ideal for use in any industrial, network or medical environment

Overview

The IS300HGDV Isolator® Series Dual-Voltage 115/230V 300W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.



An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS300HGDV and connected equipment to levels less than 50 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility-related surge conditions.



Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS300HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode.

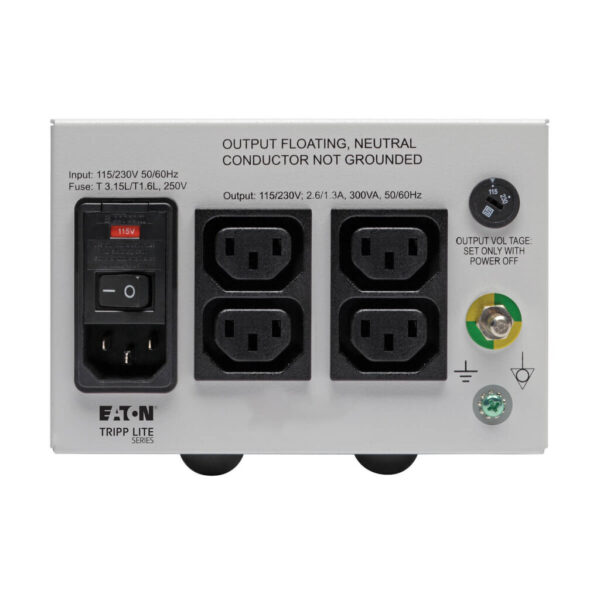

Components connect to four C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C13 AC input cord with country specific plug (sold separately).

Features

Full CAN/ES/IEC/EN 60601-1 Medical-Grade Listing with C14 Inlet and 4 C13 Outlets

• Ideal for protecting sensitive electronic equipment in patient-care vicinities
• Reduces cumulative leakage current of Isolator and connected equipment to levels less than 50 µA
• Inexpensive alternative to dedicated circuits and site electrical upgrades

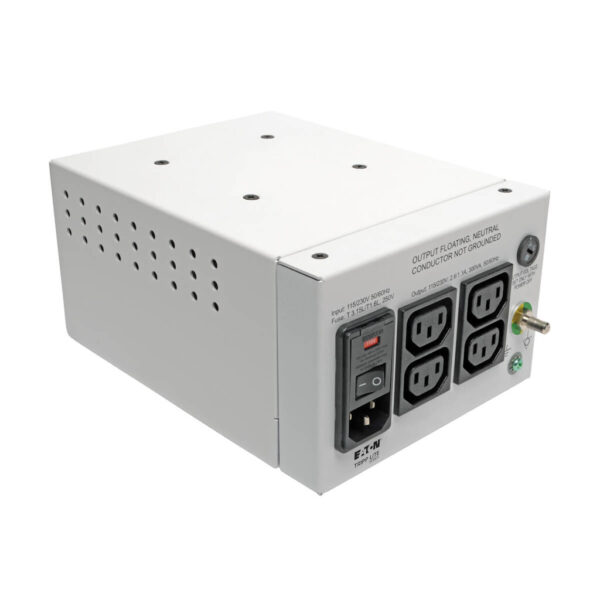

• Rugged all-metal housing designed to withstand frequent use in busy environments
• Requires a C13 AC input cord with country specific plug (sold separately)

Selectable 115/230V Input/Output Voltage Suitable for Most Applications

• Step-up, step-down or pass-through voltage operation (input frequency always equals output frequency)
• Internal low-impedance toroidal isolation transformer with Faraday shield offers 100% isolation from mains AC power line
• Automatically shuts down all outlets in case of overload
• Ships ready for placement in any industrial, medical, office, network or audio/video environment

Protects Connected Equipment from Dangerous Spikes, Surges and Line Noise

• Line isolation, continuous noise filtering and 240 joules of AC surge protection
• Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
• Floating AC output prevents noise coupling from noisy ground circuits
• Reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode

Package Includes

• IS300HGDV Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer
• (2) Fuse sets (115V and 230V operation)
• Input/output cable selector data sheet
• Owner’s manual
